G2 Dana 35 30 Spline Master Ring and Pinion Installation Kit – 35-2049L

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • For Dana 35 rear axles with the 30 spline upgrade kit only
  • Timken pinion and carrier bearings with races
  • Shims, crush sleeve, pinion seal and nut
  • Part number 35-2049L

Description

Overview

The G2 Axle and Gear 35-2049L is a master ring and pinion installation kit for the Dana 35 rear axle.

Owners who upgraded a Dana 35 rear to 30 spline axles need gearing parts matched to that carrier, and the 35-2049L is that kit. It holds Timken pinion and carrier bearings with races, shims, a crush sleeve, nut and seal, ring gear bolts, and sealing and marking compounds.

Upgrading a Dana 35 to 30 spline axles changes which gear kit applies, and G2 handles that with the 35-2049L. The kit pairs with the upgrade kit and carries Timken pinion bearings and races, carrier bearings and races, shims, a crush sleeve, a nut and seal, bolts, thread locker, marking compound and silicone sealer for the install.

Key features

  • Master installation kit for the Dana 35 axle (rear)
  • Includes pinion Nut
  • Includes pinion Seal
  • Includes Timken Outer Pinion Bearing and Race
  • Includes crush Sleeve
  • Includes Timken Inner Pinion Bearing and Race
  • Includes pinion Shims
  • Includes carrier Shims
  • Includes carrier Bearings and Races
  • Includes ring Gear Bolts

Checking your axle before assembly

A Dana 35 with 30 spline upgrade parts is a different job from a standard rear, so start by confirming the axle matches. The carrier changes with the upgrade, and parts sized for the wrong carrier will not seat correctly. Lay out every component and check the labels before you open the housing.

Setup works in the same order as any gear swap. Measure the original pinion depth, install the new bearings and races, then use the shims to bring pinion depth back where it was. Carrier shims come last, adjusted for backlash and checked against the marking compound pattern.

  • Count the splines on the axle shafts
  • Note the original shim stack before removing it
  • Clean the housing of old gasket material

Specifications

Brand G2 Axle and Gear
Part number 35-2049L
UPC 631410109498
Kit type Master kit with bearings
Axle location Rear
Axle type Dana 35
Axle manufacturer Dana

Vehicle fitment

It fits Dana 35 rear axles that have the 30 spline axle upgrade kit installed. Dana 35 rears without that upgrade use kit 35-2049 instead.

Confirm your vehicle’s axle type, spline count and year before ordering.

Installation notes

Because the upgrade changes the carrier, verify that your parts are the 30 spline version before assembly. Then set pinion depth with the shims and check the tooth pattern with the compound.

Before opening the Dana 35 housing for the 35-2049L job, gather a dial indicator, a torque wrench and clean gear oil. Record the original gear pattern, because the 35-2049L shims are the tool for moving the new pattern toward it. Fit the new nut and seal. Sort shims by thickness.

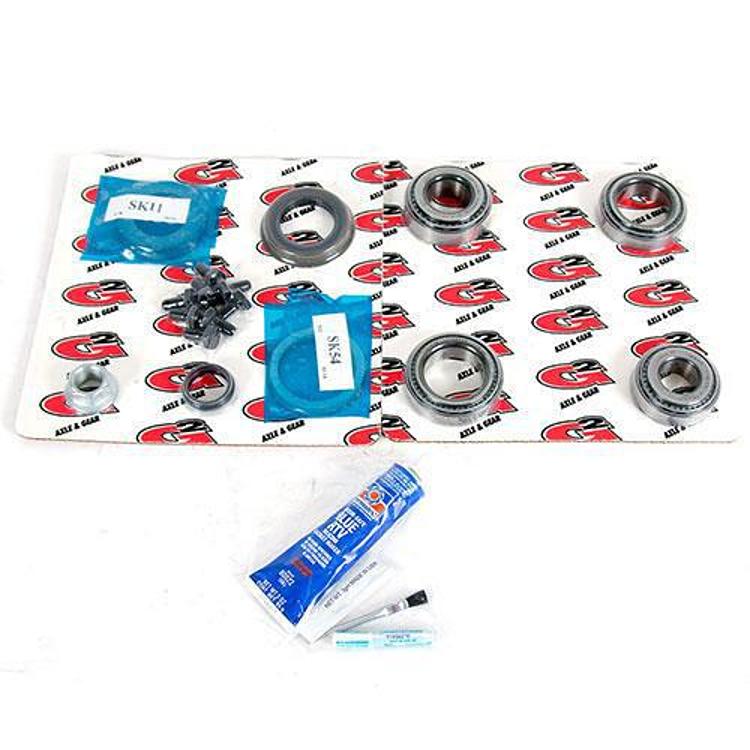

What’s included

  • Pinion Nut
  • Pinion Seal
  • Timken Outer Pinion Bearing and Race
  • Crush Sleeve
  • Timken Inner Pinion Bearing and Race
  • Pinion Shims
  • Carrier Shims
  • Carrier Bearings and Races
  • Ring Gear Bolts
  • Thread Locking Compound
  • Gear Marking Compound
  • Silicone Sealer

Not included: ring and pinion gears; the 35-2049L supplies installation parts for the Dana 35 axle only.

SKU: G/235-2049L Category:

Specification

Shipping weight 6.00 lbs
Package dimensions 12.90 × 12.80 × 3.10 in
brands

Questions & Answers

What axle does the 35-2049L kit fit?

It fits a Dana 35 rear axle that has the 30 spline axle upgrade kit. A standard Dana 35 rear needs the 35-2049 kit.

What is included in the 35-2049L kit?

The kit provides a pinion nut and seal, crush sleeve, Timken inner and outer pinion bearings with races, pinion shims, carrier shims, carrier bearings and races, ring gear bolts, thread locker, marking compound and silicone sealer.

Does the 35-2049L include the gears?

No. The 30 spline axle upgrade parts and the ring and pinion are separate purchases; this kit supplies installation parts only.

Can I install this kit without a dial indicator?

It is hard to do well without one. A dial indicator lets you measure pinion depth and backlash accurately, which the shims depend on. Guessing at those settings often leads to noise or early gear wear.

What happens if the gear pattern is wrong?

A poor pattern usually shows as noise, heat or chatter under load. Adjust pinion shims first, then carrier shims, and check again with marking compound until the contact sits centered on the teeth.
