FUEL Off-Road Throttle, 17x9 Wheel with 5 on 4.5 and 5 on 5 Bolt Pattern – Black Milled – D51317902645

FUEL Off-Road

Shop FUEL Off-Road Wheels 17x9 5x4.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17×9 FUEL Off-Road Throttle wheel, part number MHTD51317902645
  • Bolt patterns: 5 on 4.5 and 5 on 5
  • Offset -12, backspacing 4.5, center bore 78
  • Aluminum construction in black milled finish

Description

Overview

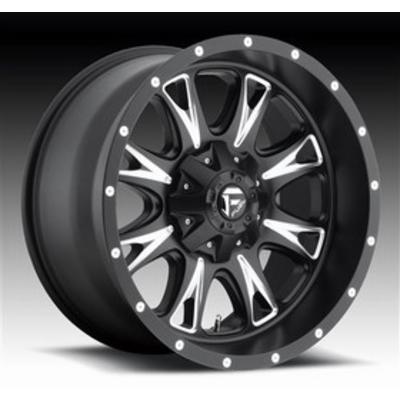

The FUEL Off-Road Throttle 17×9 wheel, part number MHTD51317902645, is a 17-inch aluminum wheel, 9 inches wide, with a black milled finish. It is drilled for two five-lug patterns, 5 on 4.5 and 5 on 5, for trucks and SUVs that run that hub layout.

No vehicle application is named for this wheel. Before buying, compare the bolt pattern, center bore, offset and backspacing with your hub, because those four figures decide whether the wheel mounts and clears the brakes and suspension.

Key features

  • 17-inch diameter and 9-inch width
  • Two bolt patterns: 5 on 4.5 and 5 on 5
  • Aluminum construction with a black milled finish
  • Throttle style from FUEL Off-Road
  • Offset of -12 and backspacing of 4.5
  • Center bore of 78

Measuring your hub

Measure lug spacing from the center of one stud across to the stud on the far side of the hub. For a five-lug hub, compare that measurement with each pattern before choosing. Measure the center hub bore as well, since the hub’s centering diameter decides whether the wheel seats square. Write the numbers down and check them twice.

Wheel offset and backspacing change how the wheel sits in the fender, so measure clearance with the wheel in place rather than by calculation alone. Check caliper clearance and the inner barrel near suspension parts. A test fit with the lug nuts snug gives the clearest picture before the final torque.

  • Count the studs and measure spacing center to center
  • Compare the center bore with the hub’s centering diameter
  • Check caliper and suspension clearance with the wheel mounted

Specifications

Brand FUEL Off-Road
Part number MHTD51317902645
Style Throttle
Construction Aluminum
Finish Black, milled
Wheel diameter 17 inches
Wheel width 9 inches
Offset -12
Backspacing 4.5
Center bore 78
Bolt pattern 5 on 4.5 / 5 on 5
Fitment label Universal Fit

Vehicle fitment

No vehicle is matched to this wheel, so compare the hub pattern and center bore with your truck before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The 5 on 4.5 and 5 on 5 patterns are not interchangeable, so a test fit on the actual hub comes first. The -12 offset moves the mounting face outward or inward, which changes tire position against the fender and suspension.

What’s included

This part covers the wheel itself. Lug nuts and valve stems need their own planning before mounting.

SKU: MHTD51317902645 Categories: ,

Questions & Answers

What bolt patterns does the FUEL Off-Road Throttle 17x9 MHTD51317902645 come in?

This wheel is offered for 5 on 4.5 and 5 on 5 bolt patterns. Measure the lug spacing on your hub and choose the matching pattern before buying, because the two layouts do not interchange and a mismatched wheel will not mount.

What size is this 17x9 wheel?

It is 17 inches in diameter and 9 inches wide, with an offset of -12, backspacing of 4.5, and a center bore of 78. Tire size options come from those diameter and width figures, so check them against the tire you plan to run.

Does FUEL Off-Road name a vehicle for this wheel?

No vehicle is named. The fitment label reads Universal Fit, which does not identify a specific truck or SUV. Compare the bolt pattern, center bore, offset and backspacing with your vehicle's manufacturer specifications before ordering.

Is a test fit needed before final mounting?

Yes. A test fit shows whether the wheel clears the caliper and fender, and whether the lug seats properly. Mount the wheel only after the hub, center bore and offset have been checked.
