FUEL Off-Road Throttle, 17x9 Wheel with 5 on 135 and 5 on 5 Bolt Pattern – Black Milled – D51317900545

FUEL Off-Road

Shop FUEL Off-Road Wheels 17x9 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road Throttle 17×9 aluminum wheel in black milled finish
  • 17 x 9 inch aluminum Throttle-style wheel
  • Offset -12, backspacing 4.5, center bore 87
  • Bolt patterns 5 on 135 and 5 on 5; part number MHTD51317900545

Description

Overview

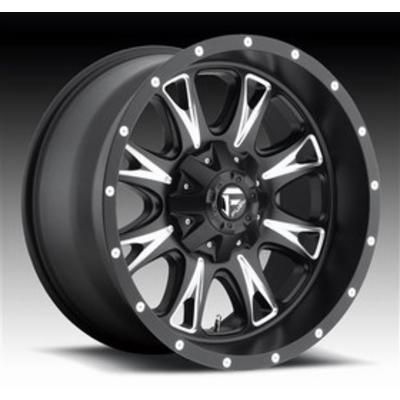

The FUEL Off-Road Throttle is a 17 x 9 inch aluminum wheel in the Throttle style with a black milled finish, carrying part number MHTD51317900545. It has two 5-lug patterns, 5 on 135 and 5 on 5, and carries a Universal Fit designation, so it is not matched to a specific vehicle.

The -12 offset, 4.5 backspacing and 87 center bore are the figures to check against your hub and brake clearance. The finish is black milled, which is also called Black, so both terms refer to one finish.

Key features

  • 17-inch diameter with a 9-inch width
  • Throttle style with a black milled finish
  • Aluminum construction
  • Offset -12 and backspacing 4.5
  • Center bore 87 and two listed bolt patterns

Choosing a bolt pattern

The wheel has two five-lug patterns, so the first step is confirming which one your hub uses. A 5 on 5 hub and a 5 on 135 hub are different, and the wheel will not seat correctly on the wrong one. Measure the hub and compare it to the pattern before buying lug nuts or spacers, since those parts are sized to a pattern too.

Center bore and offset decide how the wheel centers and where the tire sits. Hub-centric rings help when the center bore is larger than the hub, and wheel spacers change clearance but add load to studs and bearings. Related parts often replaced together include lug nuts and valve stems, and on a wheel with this offset, brake clearance should be rechecked. After mounting, recheck lug nut tightness after the first short drive and inspect the wheel for cracks near the spokes.

  • Hub bore versus center bore
  • Lug seat style
  • Tire size and fender room

Specifications

Brand FUEL Off-Road
Part number MHTD51317900545
Wheel diameter 17 inches
Wheel width 9 inches
Offset -12
Center bore 87
Backspacing 4.5
Style Throttle
Finish Black (title: black milled)
Construction Aluminum
Bolt pattern 5 on 5/5 on 135
Fitment Universal Fit

Vehicle fitment

The wheel is listed with a Universal Fit designation and no vehicle list, so it is not matched to a specific year, make or model.

The two bolt patterns, 5 on 135 and 5 on 5, are both listed, so confirm which one your vehicle’s hub uses before mounting. Confirm your vehicle’s year, model and trim before ordering.

What’s included

Check the package contents against your installation before starting. Tires, lug nuts and center caps may need to be sourced separately.

Not included: Tires and mounting hardware are not part of this wheel.

SKU: MHTD51317900545 Categories: ,

Questions & Answers

Is the FUEL Off-Road Throttle wheel made for a specific vehicle?

No vehicle year, make or model is matched to this wheel. It carries a Universal Fit designation, so fit must be checked against your hub. Check the bolt pattern, offset -12, backspacing 4.5 and center bore 87 before choosing it.

What bolt patterns does the Throttle wheel list?

The wheel has 5 on 135 and 5 on 5 bolt patterns. Confirm which one your vehicle's hub uses before mounting the wheel, since the two are not interchangeable.

What is the part number for this Throttle wheel?

The part number is MHTD51317900545 under the FUEL Off-Road brand. Use that number when ordering or matching this wheel to a replacement.

What finish does the Throttle wheel have?

It has a black milled finish, which is also called Black. The wheel is aluminum in the Throttle style, measuring 17 by 9 inches.

Should lug nuts be replaced when changing wheels?

Often yes, especially when the seat style changes. Lug nuts that match the new wheel's seat keep the clamping force even and reduce the chance of loosening under load.
