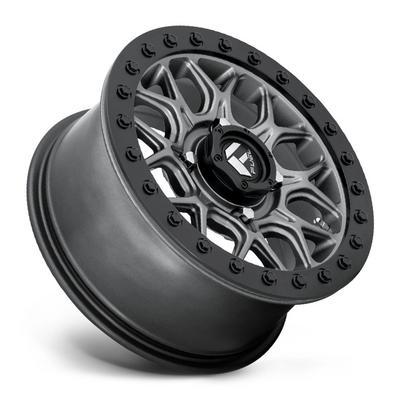

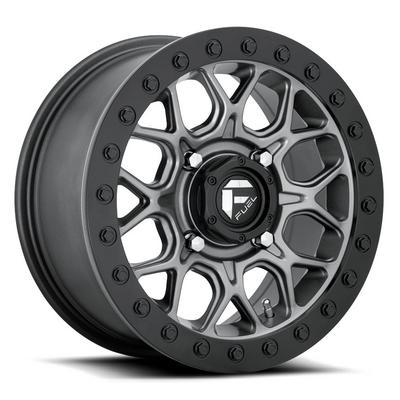

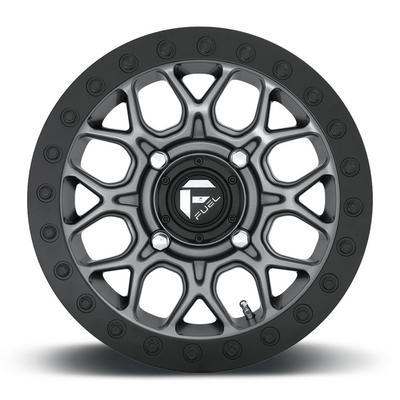

FUEL Off-Road Tech D919 UTV Beadlock Wheel, 15x7 with 4 on 156 Bolt Pattern – Anthracite / Black – D9191570A554

FUEL Off-Road

$374.00In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 1:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road D919 UTV beadlock wheel, 15×7, with a 4 on 156 bolt pattern and anthracite/black finish
  • Part number MHTD9191570A554, universal fit
  • Offset 38, backspacing 5.5 and center bore 132
  • Aluminum construction in the D919 Tech Beadlock series

Description

Overview

The FUEL Off-Road D919 UTV beadlock wheel in 15×7 with a 4 on 156 bolt pattern and anthracite/black finish, part number MHTD9191570A554, is an aluminum beadlock wheel from FUEL’s D919 Tech Beadlock series.

FUEL Off-Road makes this wheel in a range of bolt patterns and offsets. It has an offset of 38, a backspacing of 5.5, a center bore of 132 and a width of 7 inches.

Confirm the load rating and weight before use, and check whether hardware is included in your order.

Key features

  • Aluminum construction with beadlock style
  • Anthracite/black finish
  • Offset of 38 and backspacing of 5.5
  • Center bore of 132
  • 4 on 156 bolt pattern
  • D919 Tech Beadlock series

Beadlock wheels explained

A beadlock wheel uses a ring and bolts to clamp the tire bead to the wheel, so the tire stays seated when running at low pressure. This is common on UTVs used in sand, mud and rock, where a tire can roll off the bead under hard cornering or uneven terrain. The clamping ring takes the place of a standard bead seat on the rim, and the bolts must be kept evenly tightened.

Beadlock wheels need periodic checks. Ring bolts can loosen with vibration and rough use, and the ring or bead area can corrode or deform after repeated low pressure running. Clean the bead area before mounting, check the ring for cracks, and make sure the tire is fully seated before tightening. Use a tire designed for beadlock rims, since a standard tire may not seal properly.

  • Check ring bolts periodically
  • Clean bead area before mounting
  • Use tires designed for beadlock rims

Specifications

Brand FUEL Off-Road
Part number MHTD9191570A554
Series D919 Tech Beadlock
Style Beadlock
Diameter 15 inches
Width 7 inches
Bolt pattern 4 on 156
Offset 38
Backspacing 5.5
Center bore 132
Finish Anthracite/Black
Construction Aluminum
Fitment Universal fit

Vehicle fitment

This is a universal-fit wheel, so it is not tied to one UTV model. The 38 offset and 5.5 backspacing set clearance to brakes and suspension, so match them to your UTV before ordering.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

The wheel is the item covered here. Check the package contents against your installation before starting, including hardware, center cap and ring.

Not included: Tires.

SKU: MHTD9191570A554 Categories: , ,

Questions & Answers

What bolt pattern does the FUEL D919 15x7 wheel use?

It uses a 4 on 156 bolt pattern. Match that to your hub before ordering, because the bolt pattern and center bore together decide whether the wheel mounts.

What offset and backspacing does this FUEL wheel have?

The offset is 38 and the backspacing is 5.5. The center bore is 132. These figures set how far the wheel sits in the fender.

What load rating should the D919 wheel meet?

Confirm the load rating your UTV requires before ordering. Weight capacity depends on the wheel and the vehicle together, so check both before relying on the wheel under load.

Do beadlock ring bolts need rechecking?

Yes. Check the ring bolts regularly, especially after rough trails and runs at low pressure. Tighten them evenly to avoid distorting the ring, and inspect the bead area each time the tire is serviced.
