Overview

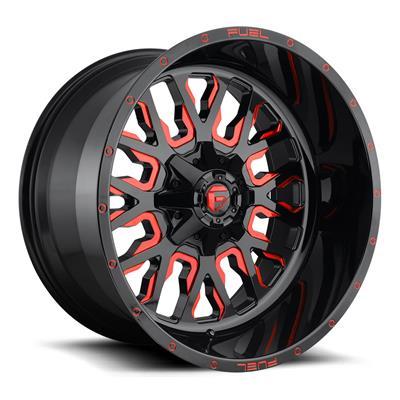

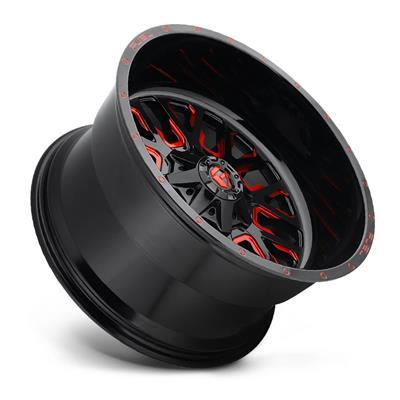

The FUEL Off-Road Stroke D612 is a 22 x 12 inch aluminum mesh-style wheel in gloss black with candy red accents, part number MHTD61222202647. It is a universal fit wheel, not matched to a specific year, make or model, and it suits trucks and SUVs that use a 5-lug bolt pattern.
Bolt pattern, offset, backspacing and center bore decide whether this wheel clears your hub and brakes. The D612 has an offset of -44, a backspacing of 4.8 and a center bore of 78. It combines style, size and application for trucks and SUVs.
Key features
- 22-inch diameter with a 12-inch width
- Aluminum construction in a mesh style
- Gloss black finish with candy red accents
- Offset -44, backspacing 4.8 and center bore 78
- Universal fit, not tied to one vehicle
Before you mount
A wheel that is not matched to a specific vehicle depends on the hub it goes on. Measure the hub bore and confirm the bolt pattern before buying, since the right diameter can still sit wrong if the offset pushes the face toward the suspension or brake caliper. Larger wheels on trucks and SUVs often change steering feel and scrub radius, so compare the overall diameter with your current wheels and tires.
Wheel weight matters as well. A heavier 22-inch wheel adds unsprung mass, which can slow suspension response on rough ground. Match the tire load rating and width to the wheel. Keep the gloss finish clean with a mild, pH-neutral wheel cleaner, and after the first drives re-check lug nut torque.
- Measure hub bore and bolt pattern before ordering
- Check the tire load rating against the wheel width
- Re-torque lug nuts after the first few drives
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD61222202647 |
| Wheel diameter | 22 inches |
| Wheel width | 12 inches |
| Offset | -44 |
| Center bore | 78 |
| Backspacing | 4.8 |
| Style | Mesh |
| Finish | Gloss Black/Red |
| Construction | Aluminum |
| Bolt pattern | 5 on 4.5/5 on 5 |
| Second bolt pattern | 5 on 4.5/114.3 |
| Fitment | Universal Fit |
Vehicle fitment
The wheel is listed with a Universal Fit designation, so it is not matched to a specific year, make or model. Fit depends on the bolt pattern, offset, backspacing and center bore suiting your hub.
The wheel is offered in 5 on 114.3 and 5 on 127 patterns, while the specification fields list 5 on 4.5/5 on 5 and 5 on 4.5/114.3. Match the pattern to your vehicle’s hub before mounting. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Check the package contents against your installation before starting.
Not included: Tires and mounting hardware must be sourced separately.
