Overview

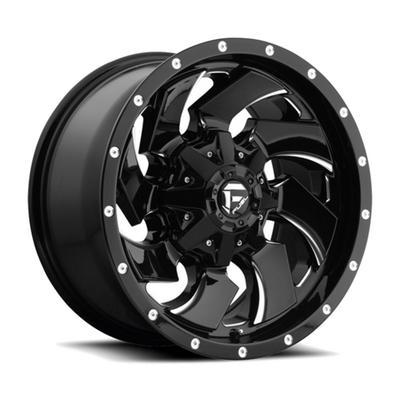

The FUEL Off-Road Cleaver D574 is a 20-inch by 8.25-inch aluminum directional wheel with an 8 on 170 bolt pattern, part number MHTD57420821745. It has a gloss black milled finish.
The offset is -227 and the backspacing is -4.17, with a 125 center bore. Check these three figures carefully against the hub before ordering. The wheel is universal fit, and no vehicle is named.
Key features
- Aluminum construction
- 20 x 8.25 inch directional style
- Gloss black milled finish
- 8 on 170 bolt pattern
- 125 center bore
- Offset -227 and backspacing -4.17
Reading a negative offset
A negative offset moves the mounting face toward the outside of the wheel, which pushes the wheel and tire further out past the fender. That position changes the load on the wheel bearings and can affect scrub radius, steering effort and how the tire contacts the ground. Any change in offset should be checked against the fender, the suspension and the steering geometry before the vehicle is driven on the road.
Wide-looking wheels with a deep negative offset often need fender trimming or extra clearance work on lifted trucks. Because the 8 on 170 pattern is less common than 5 or 6 lug patterns, check that the hub, lug nuts and studs are designed for it. Inspect the wheel and its mounting after the first drive and after any suspension change.
- Check fender clearance at full steering lock
- Confirm lug nut seat type for the pattern
- Recheck bearing and steering wear on a wider stance
- Inspect the mounting face after the first drive
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD57420821745 |
| Model | Cleaver D574 |
| Wheel diameter | 20 inches |
| Wheel width | 8.25 inches |
| Bolt pattern | 8 on 170 |
| Center bore | 125 |
| Offset | -227 |
| Backspacing | -4.17 |
| Style | Directional |
| Finish | Black |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
No vehicle is named for this wheel. Universal Fit is the only fitment statement, so measure the hub and compare its 8 on 170 pattern and 125 center bore before choosing a wheel.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
This item is one wheel.
Not included: A tire and lug hardware are not part of this item, so add them separately.
