Overview

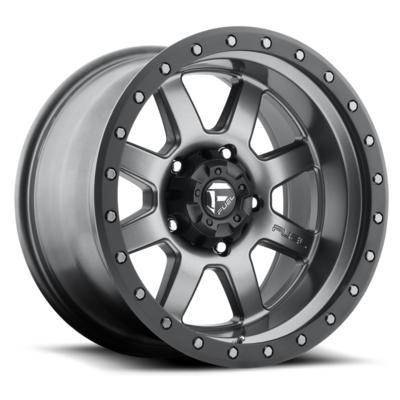

The D552 Trophy from FUEL Off-Road, part number MHTD55217858950, is a 17-inch spoke wheel in matte gunmetal, 8.5 inches wide. It is built with aluminum construction for a 6 on 135 bolt pattern with an 87 center bore.
Positive offset of 6 and backspacing of 5 set the mounting face and the inner clearance. The finish is matte gunmetal.
Key features
- Matte gunmetal finish
- Spoke style
- 6 on 135 bolt pattern
- Center bore of 87
- Offset of 6 and backspacing of 5
- 17-inch diameter with 8.5-inch width
Before you buy
Width and offset together decide how the wheel sits in the wheel well. A wider wheel can improve the stance and tire contact, but it also moves the tire closer to the fender edge and suspension parts. Matte gunmetal resists glare on the trail, though it shows oil and fingerprints more readily than gloss. Choose the wheel width with the tire size you plan to run, because the two define the overall tread footprint.
Lug seats and hardware are part of the choice too. Seat style has to match the wheel’s lug holes exactly, and a mismatched seat can loosen even when the nut looks tight. After mounting, check the wheel balance and retorque the nuts after a short drive. Tire pressure changes the sidewall shape, so recheck clearances after large pressure changes on the trail.
- Match lug seat style to the wheel
- Balance the wheel after mounting
- Recheck clearance with the final tire size
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD55217858950 |
| Wheel diameter | 17 Inches |
| Wheel width | 8.5 Inches |
| Style | Spoke |
| Finish | Gunmetal |
| Construction | Aluminum |
| Bolt pattern | 6 on 135 |
| Center bore | 87 |
| Offset | 6 |
| Backspacing | 5 |
Vehicle fitment
This is a universal fit wheel, so no specific vehicle is tied to it. Match the 6 on 135 pattern and 87 center bore to your vehicle’s hub before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Choose lug hardware that suits the seat type the wheel needs, and check that the 8.5-inch width clears the brakes and tire. Have the wheel balanced after the tire is mounted.
What’s included
One wheel is described. Not included: tires, lug hardware and wheel center caps are not part of the listed specifications.
