Overview

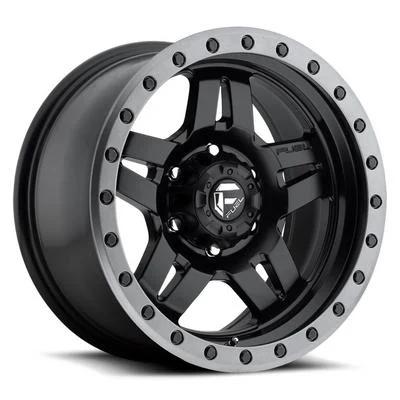

The FUEL Off-Road Anza D557 17×8.5 wheel, part MHTD55717858345, is a black aluminum split spoke wheel with a 6 on 5.5 bolt pattern and an offset of -6. It is built for six-lug trucks and SUVs and measures 17 inches in diameter with an 8.5-inch width. It is a universal-fit wheel, so hub and clearance measurements decide whether it suits a given vehicle.
The center bore is 108 and the backspacing is 4.5. Those values, along with the -6 offset, control where the wheel seats on the hub and how it clears the brake and suspension, so check each one against your vehicle before fitting.
Key features
- Black split spoke styling
- Aluminum construction
- 6 on 5.5 bolt pattern
- Offset of -6 with 4.5 backspacing
- 108 center bore
- 17 Inches by 8.5 Inches size
Choosing a wheel for six-lug hubs
A wheel has to clear the hub, the brakes and the suspension at the same time, so check in a set order. Start with the lug count and bolt pattern, because a mismatch means the wheel cannot be mounted safely. Next compare the center bore with the hub and decide whether hub-centric rings are needed. Offset and tire size come last, since they decide clearance at the fender and caliper. Recheck after the first few drives, since new wheels can settle slightly against the hub.
Tire diameter and width change how much room the wheel needs, so a tire that is taller or wider than the one previously fitted should be checked at full steering lock and over bumps. Lug nuts with the correct seat style are worth replacing when the wheel changes, because mismatched seats can loosen over time.
- Confirm lug count and bolt pattern before buying
- Measure the hub against the center bore
- Check tire clearance at full steering lock
- Re-torque lug nuts after the first drive
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Model | Anza D557 |
| Part number | MHTD55717858345 |
| Wheel diameter | 17 Inches |
| Wheel width | 8.5 Inches |
| Bolt pattern | 6 on 5.5 |
| Offset | -6 |
| Center bore | 108 |
| Backspacing | 4.5 |
| Style | Split Spoke |
| Finish | Black |
| Construction | Aluminum |
Vehicle fitment
The wheel is not tied to any particular year, make or model. The 6 on 5.5 pattern matches six-lug hubs with that spacing, so the hub count and measurement decide whether it can be mounted on a given truck or SUV.
Confirm your vehicle’s year, model and trim before ordering. A -6 offset changes how the wheel sits against brake parts, so compare clearance first.
Installation notes
Start with a hub measurement against the 108 center bore. Use hub rings if the hub is smaller. Recheck torque after the first drive and inspect clearance at full steering lock.
What’s included
The wheel alone is described here.
Not included: Tires and hardware are not included.
