Overview

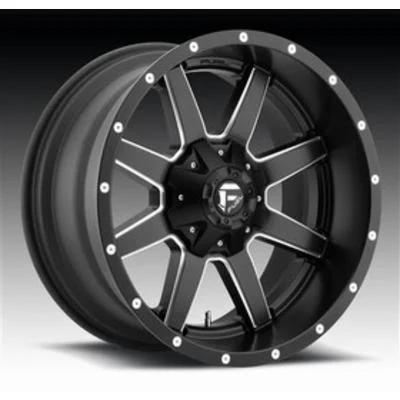

The FUEL Off-Road Maverick 17×9 in black milled finish (part number MHTD53817909845) is a spoke wheel measuring 17 inches in diameter and 9 inches wide. It comes with the 6 on 5.5 and 6 on 135 bolt patterns, an offset of -12 and a backspacing of 4.5.
No year, make or model is named for this wheel. It is a universal fit wheel. Measure your hub and compare the bolt patterns and center bore before selecting this size.
Key features
- Spoke style with aluminum construction
- 17-inch diameter and 9-inch width
- Black milled finish
- Bolt patterns 6 on 5.5 and 6 on 135
- Center bore of 106
- Offset of -12 with 4.5 backspacing
Tire fit for a 9-inch width
A 9-inch wide wheel accepts a range of tire widths, but the tire should be chosen to suit the rim width, sidewall and tread. A tire that is too wide for the rim can rub the fender, while one that is too narrow can change steering feel. Confirm the tire fits the rim and clears the suspension before mounting.
Off-road tires carry more weight and often need a higher load capacity than street tires, so check the rating for your vehicle. Balance the wheel and tire together after mounting to reduce vibration. Keep the bead seated evenly and check pressure with the tire cold. Rotate tires on schedule so wear stays even across the set.
- Match the tire to the rim width
- Check fender clearance with the tire mounted
- Balance wheel and tire together
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD53817909845 |
| Model line | Maverick |
| Style | Spoke |
| Construction | Aluminum |
| Finish | Black, milled |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 5.5 |
| Second bolt pattern | 6 on 135 |
| Center bore | 106 |
| Offset | -12 |
| Backspacing | 4.5 |
Vehicle fitment
No vehicle is tied to this wheel. Because it is a universal fit wheel, confirm that one of the two bolt patterns, the 106 center bore and the -12 offset match your hub.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One 17×9 wheel is included. Lug nuts, center caps and valve stems are not included.
Not included: Tires are not included and must be obtained separately.
