Overview

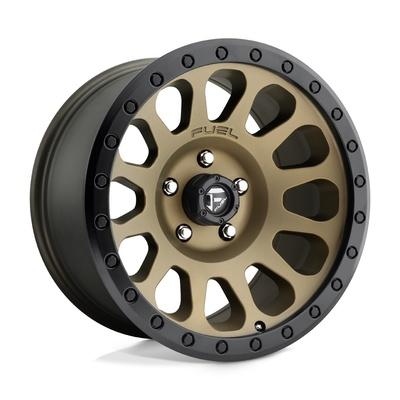

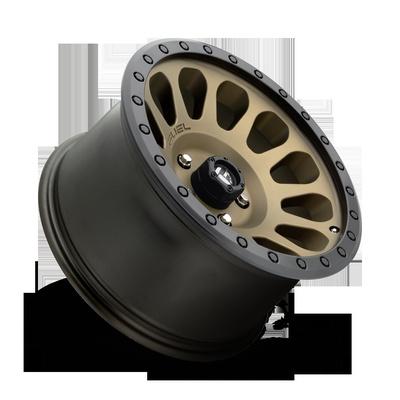

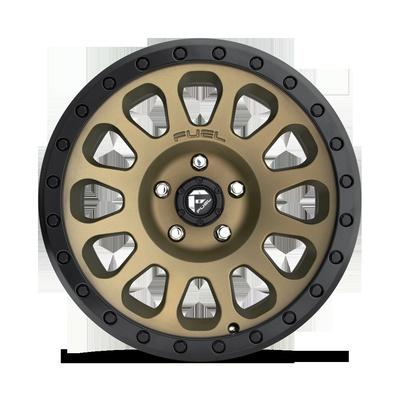

The FUEL Off-Road Vector D600 is a 17 by 9 inch aluminum wheel with a 5 on 5 bolt pattern and a matte bronze and black finish, part number MHTD60017907345. It is a windowed wheel in a fixed size and is universal fit, so the bolt pattern, center bore and offset decide whether it suits a particular truck or SUV.
Universal fit means the wheel is not matched to one named vehicle. Offset, backspacing and center bore decide how the wheel sits against the hub and fender, so compare those figures with your current wheels before mounting.
Key features
- Aluminum construction in a windowed style
- 17-inch diameter and 9-inch width
- 5 on 5 bolt pattern
- Matte bronze and black finish with a black bead ring
- Offset of -12, center bore of 78 and backspacing of 4.5
Things to check
Windowed wheels have a solid outer ring with an open center, which means dirt and water pass through and the inner barrel can be seen. Cleaning the back of the wheel after wet runs helps prevent corrosion where the brake parts sit. A bead ring of contrasting color can chip, so inspect it when removing the tire.
Bolt pattern and center bore are the first measurements to confirm, followed by offset and backspacing. Offset determines how far the mounting face sits from the hub, which changes the space left for brakes and suspension. Lug nut seat style should match the wheel holes, and an aftermarket spacer changes the offset and should be counted in any clearance check.
Reusing old lug nuts is common, but damaged or worn seats should be replaced. Torque the nuts in a star pattern and recheck them after the first few drives.
- Clean the inner barrel after wet runs
- Inspect the bead ring for chips
- Check lug seats for wear
- Recheck torque after initial drives
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD60017907345 |
| Model | Vector D600 |
| Diameter | 17 inches |
| Width | 9 inches |
| Bolt pattern | 5 on 5 |
| Offset | -12 |
| Center bore | 78 |
| Backspacing | 4.5 |
| Style | Windowed |
| Finish | Black/Bronze, matte bronze with black bead ring |
| Construction | Aluminum |
Vehicle fitment
No vehicle list is provided for this wheel, and the brand markets it as universal fit rather than for a named make, model or year. Choose it by matching the bolt pattern, center bore and offset to your own hub and wheel specifications.
A wheel with a different bolt pattern or center bore will not mount on your hub without checking first. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check that the lug nut seat style suits the wheel’s lug holes before tightening, and clear the brake caliper and suspension at full steering lock. Tight clearance at this offset can rub on tires.
What’s included
One wheel is included. Not included: a tire, lug nuts and center caps.
