FUEL Off-Road Contra D615 Wheel, 18x9 with 5 on 4.5 / 5 on 5 Bolt Pattern – Black / Milled – D61518902645

FUEL Off-Road

Shop FUEL Off-Road Wheels 18x9 5x4.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 18×9 inch aluminum Contra D615 spoke wheel
  • Bolt patterns 5 on 4.5/5 on 5 and 5 on 4.5/114.3
  • Part number MHTD61518902645, center bore 78
  • Universal fit with no vehicle assigned

Description

Overview

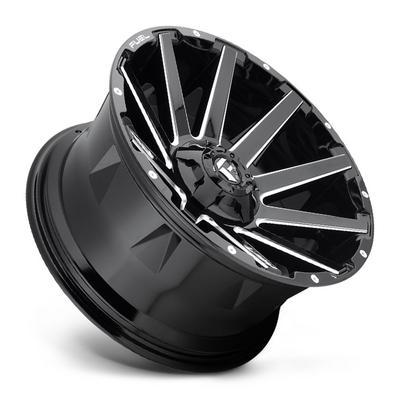

This Contra D615 is an 18 by 9 inch aluminum spoke wheel with a black milled finish, part number MHTD61518902645. It has two bolt pattern options: 5 on 4.5/5 on 5 and 5 on 4.5/114.3.

Offset is -12 and backspacing is 5.5, which pushes the mounting face outboard, so fender and brake clearance should be checked. Center bore is 78, and universal fit is the only fitment entry.

Key features

  • 18 inch diameter and 9 inch width
  • Two bolt pattern entries
  • Spoke style
  • Center bore 78
  • Offset -12 and backspacing 5.5
  • Black and milled finish with aluminum construction

Two bolt pattern options

A wheel with two bolt pattern options covers two hub layouts, but only one applies to any given vehicle. The 5 on 4.5 and 5 on 5 layouts differ in the lug circle’s diameter and the stud positions, so a wheel that fits one may not sit flat on the other. Count the studs and measure the distance across the lug circle before choosing this wheel.

Spoke wheels like this one often have more openings, which means brake dust and road grime can collect behind the spokes. Clean the back face during tire changes and inspect the lug holes for cracks. A -12 offset also pushes the wheel outward, so measure clearance at full steering lock and watch for contact with fender liners or brake calipers.

  • Measure the lug circle before mounting
  • Check each seat’s fit against the stud type
  • Clean behind spokes to prevent corrosion
  • Test steering clearance after the first install

Specifications

Brand FUEL Off-Road
Part number MHTD61518902645
Model Contra D615
Wheel diameter 18 inches
Wheel width 9 inches
Bolt pattern 5 on 4.5/5 on 5
Second bolt pattern 5 on 4.5/114.3
Offset -12
Center bore 78
Backspacing 5.5
Style Spoke
Finish Black/Milled
Construction Aluminum
Fitment Universal fit

Vehicle fitment

No vehicle is named for the Contra D615, and the entry reads universal fit. Match one listed bolt pattern, the 78 center bore and the -12 offset to your hub before buying.

The wheel is universal fit, with no particular truck or SUV assigned to it. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Two bolt pattern entries are listed, so confirm which one applies to your hub first. Test the -12 offset at full steering lock to check for tire or fender contact.

What’s included

The wheel is sold alone, without caps or lug hardware.

Not included: a tire, which must be mounted separately.

SKU: MHTD61518902645 Categories: ,

Questions & Answers

Does the FUEL Off-Road Contra D615 MHTD61518902645 fit a specific vehicle?

No. Fitment is listed only as universal fit, with no year, make, model or trim named. Check bolt pattern, offset -12, backspacing 5.5 and center bore 78 against your own hub before ordering.

What bolt patterns does this spoke wheel use?

Two patterns are listed: 5 on 4.5/5 on 5 and 5 on 4.5/114.3. The wheel is 18 inches by 9 inches with a spoke style and black milled finish.

Does it come with a tire or lug hardware?

The wheel is sold without a tire, which must be mounted separately. Caps and lug hardware come separately too, so plan to buy them if your setup needs them.

Can I switch between bolt pattern options on one wheel?

No. Each wheel has a fixed stud layout, so it fits only the pattern it was made for. Adapters exist for some conversions, but they add stress and change the wheel's position. Confirm your hub pattern before buying.
