Overview

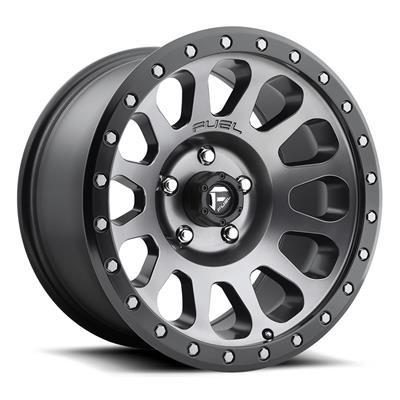

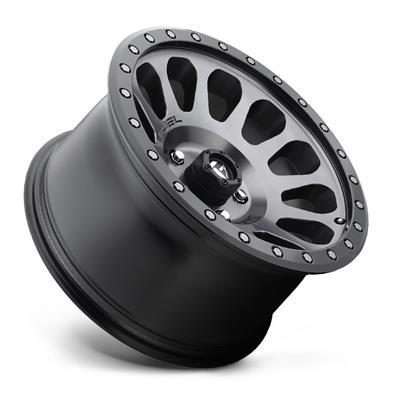

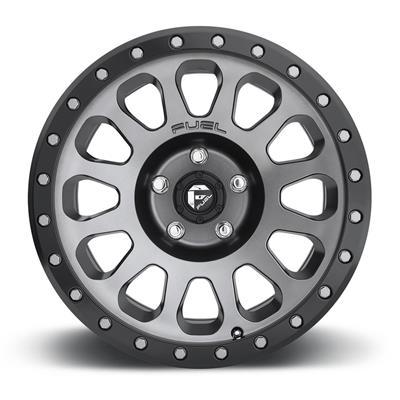

The FUEL Off-Road Vector D601 is an 18 by 9 inch aluminum wheel with a matte gun finish and windowed spokes. Part number MHTD60118908350 identifies this model, which FUEL Off-Road presents as universal fit for trucks and SUVs.
The offset of 1 and center bore of 108 are the figures to compare with your hub. Check the center bore against your hub’s pilot, since a wrong bore leaves the wheel unseated.
Key features
- Aluminum construction
- 18-inch diameter and 9-inch width
- Matte gun finish
- Offset of 1 with backspacing of 5
- Center bore of 108 and windowed style
Care and inspection
Matte gun finishes resist fingerprints and road film better than some glossy coatings, but they need gentle cleaning. Use a soft brush, a mild cleaner and plenty of water. Abrasive pads and strong solvents can leave shiny marks that are hard to correct on a matte surface.
Windowed spokes leave the back of the wheel exposed to mud, salt and water. After trail or winter use, rinse the inner barrel and spoke channels. Inspect the lug holes for cracking, and check the face for bends or flat spots that would cause vibration.
Center bore and offset affect how the wheel sits on the hub, and brake caliper clearance can change with a different tire. A wheel that rubs at full steering lock should be adjusted before driving farther. Rechecking torque after the first drive is a common step with new wheels.
- Clean with mild soap and water
- Rinse the inner barrel after mud
- Inspect lug holes for cracks
- Recheck lug torque after the first drive
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD60118908350 |
| Model | Vector D601 |
| Diameter | 18 inches |
| Width | 9 inches |
| Bolt pattern (specification field) | 6 on 5.5 |
| Bolt pattern (title) | 6 on 139.7 |
| Offset | 1 |
| Center bore | 108 |
| Backspacing | 5 |
| Style | Windowed |
| Finish | Matte Gun |
| Construction | Aluminum |
Vehicle fitment
No vehicle list is provided and the wheel is presented as universal fit, so it is not matched to any named make, model or year.
The bolt pattern is either 6 on 139.7 or 6 on 5.5, and these two patterns differ. Measure your hub before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Match the lug nut seat style to the wheel’s holes, and confirm the spokes clear the brake caliper before final torque. An offset of 1 places the mounting face near the wheel’s centerline, which changes clearance.
What’s included
Single wheel. Not included: Tires, plus any lug nuts or caps, are not part of this wheel.
