Overview

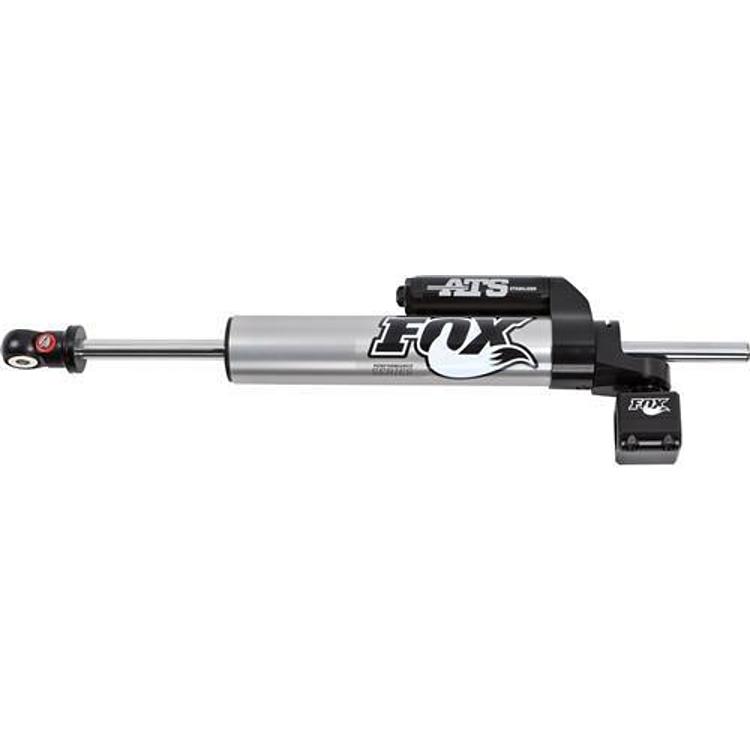

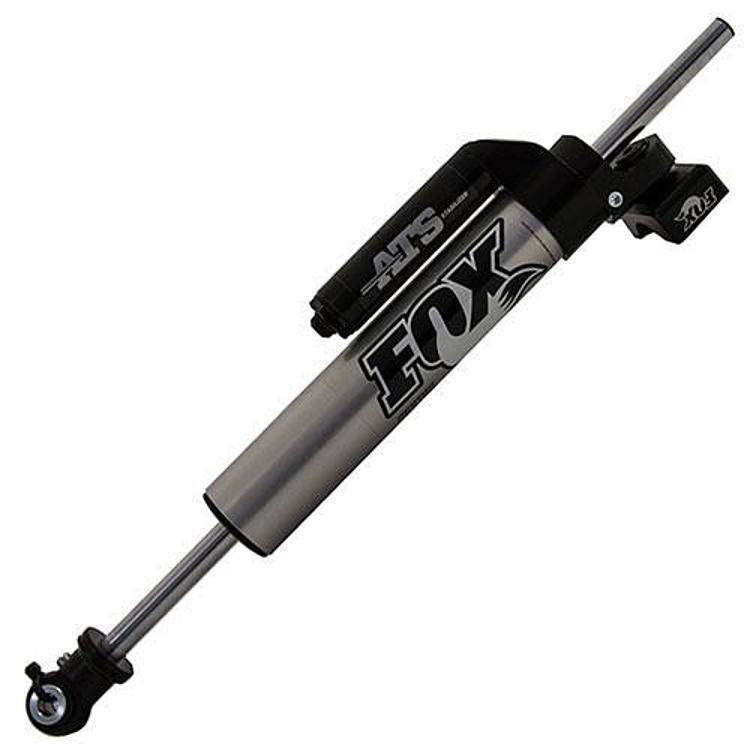

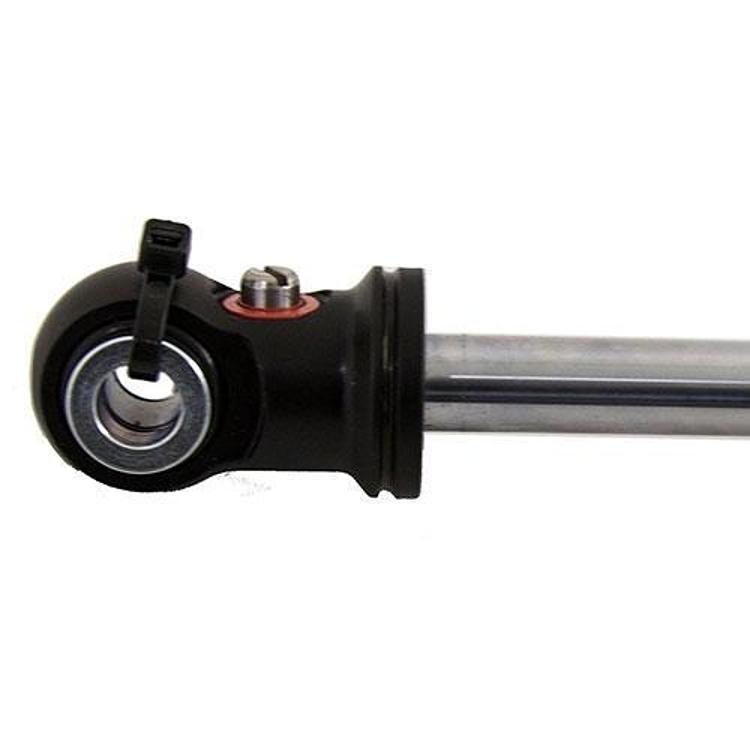

The Fox Racing Shox 983-02-070 is a 2.0 Performance Series ATS steering stabilizer complete kit with brackets included. ATS means Adjustable Through Shaft, a design that combines the work of two conventional opposing stabilizers into a single unit. Confirm fit for your vehicle’s year, model and trim before ordering.
The integrated reservoir adds fluid capacity and helps cooling during extreme use. The kit also includes relocating hardware that moves the stabilizer up and out of the way of the steering components.
The kit includes the brackets, mounting hardware, and the track bar and tie-rod pieces.
Key features
- Adjustable Through Shaft design replacing two opposing stabilizers

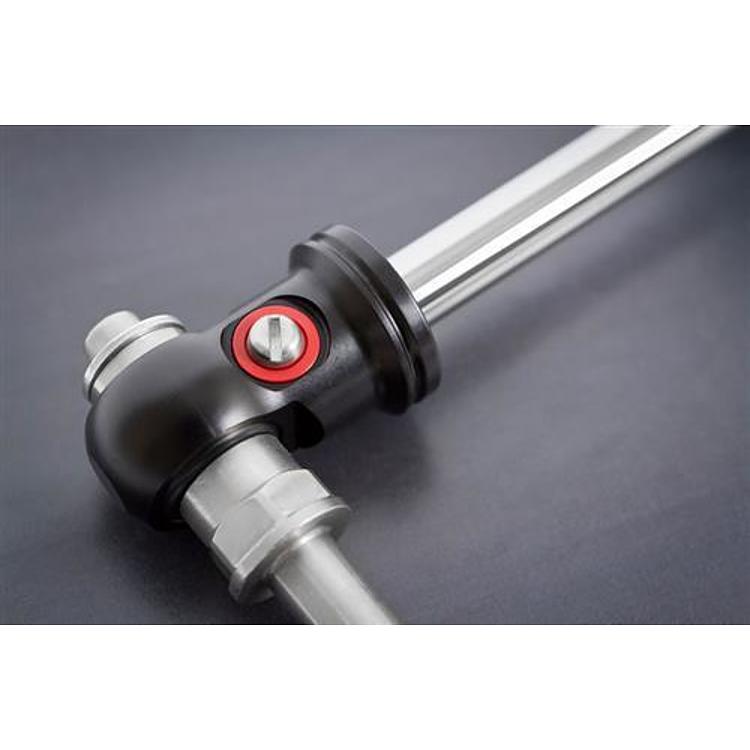

- 24 clicks of external adjustment for fine tuning
- External integrated reservoir for added fluid capacity

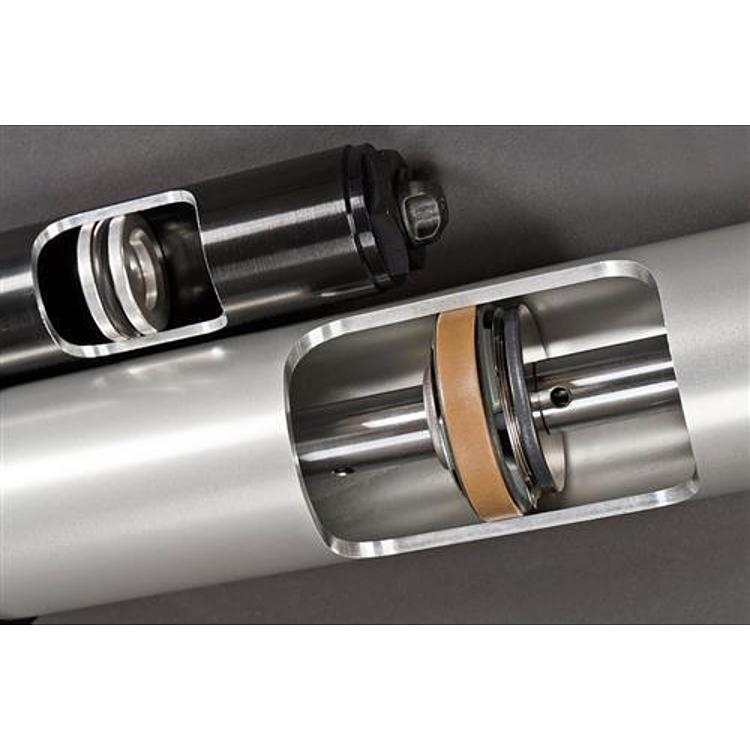

- High-flow piston and aluminum body

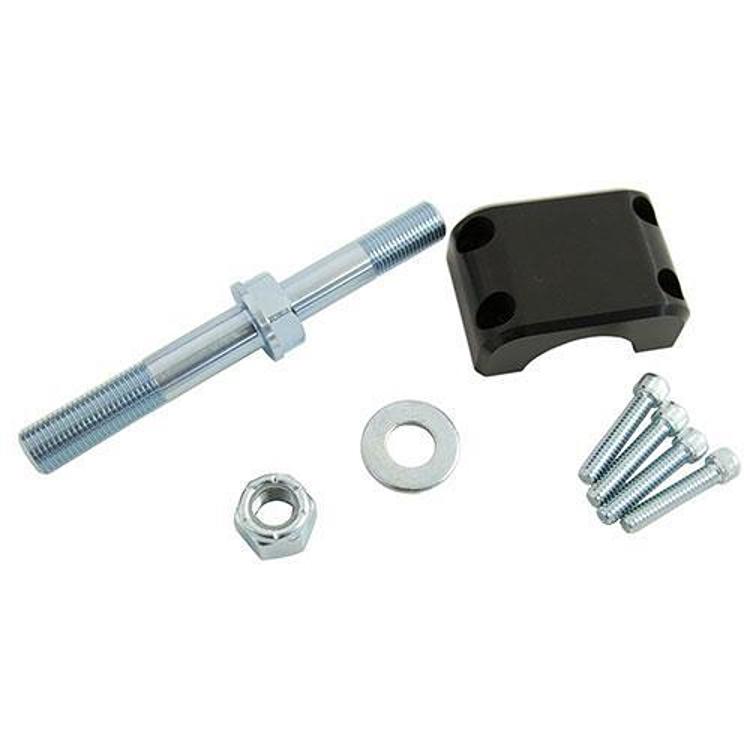

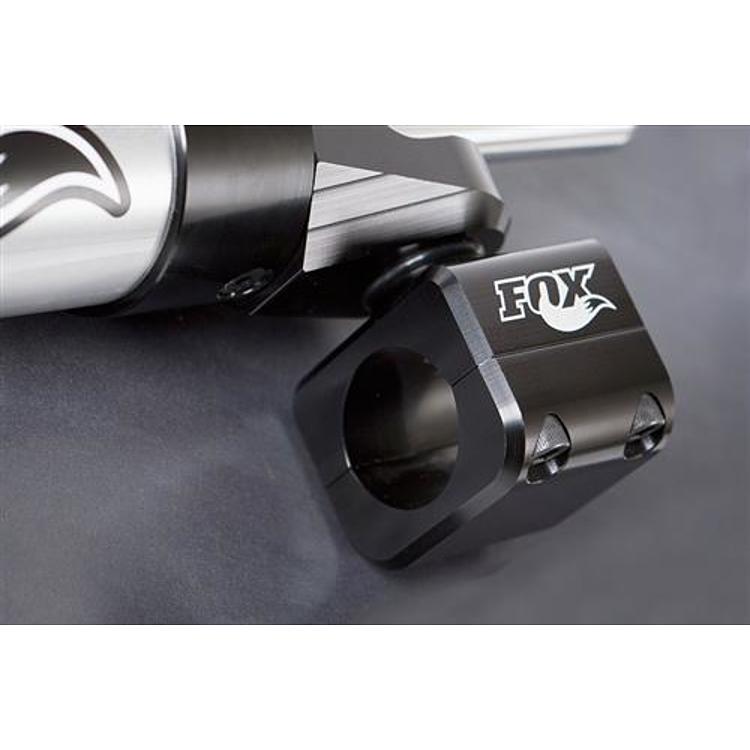

- New track bar relocation bolt and tie-rod mounting clamp
- Direct bolt-on mounting with included hardware
Kits versus single stabilizers
A complete kit packages the stabilizer with its brackets, mounting hardware and relocation pieces so the parts are matched before the install begins. That can simplify planning, especially when the original steering arrangement is hard to work around. Kits still need a check against your own steering layout, because clamp position and track bar height affect how well the stabilizer sits.
Adjustable designs let the feel be tuned rather than fixed. Adjusting one setting at a time and driving the same route after each change makes the result easier to judge. After any change to tire size or steering geometry, recheck the clamps and bolts and confirm the alignment.
- Confirm kit contents against your steering layout
- Adjust one setting at a time
- Recheck clamps and bolts after the first drive
Specifications
| Brand | Fox Racing Shox |
|---|---|
| Part number | 983-02-070 |
| UPC | 70000658543 |
| Series | 2.0 Performance Series |
| Type | Complete kit |
| Stabilizer count | Single |
| Shaft diameter | 5/8 inch |
| Adjustment | External, 24 clicks |
| Body | Aluminum |
| Brackets | Included |
| Shock boot | Not included |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering. The tie-rod mounting clamp is part of the kit, so confirm it suits your steering arrangement.
The tie-rod mounting clamp is part of the kit, so confirm it suits your steering arrangement. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit relies on a new track bar relocation bolt and tie-rod mounting clamp, so both are used during the install. Steering loads are significant, so confirm all bolts and clamps are secure before driving.

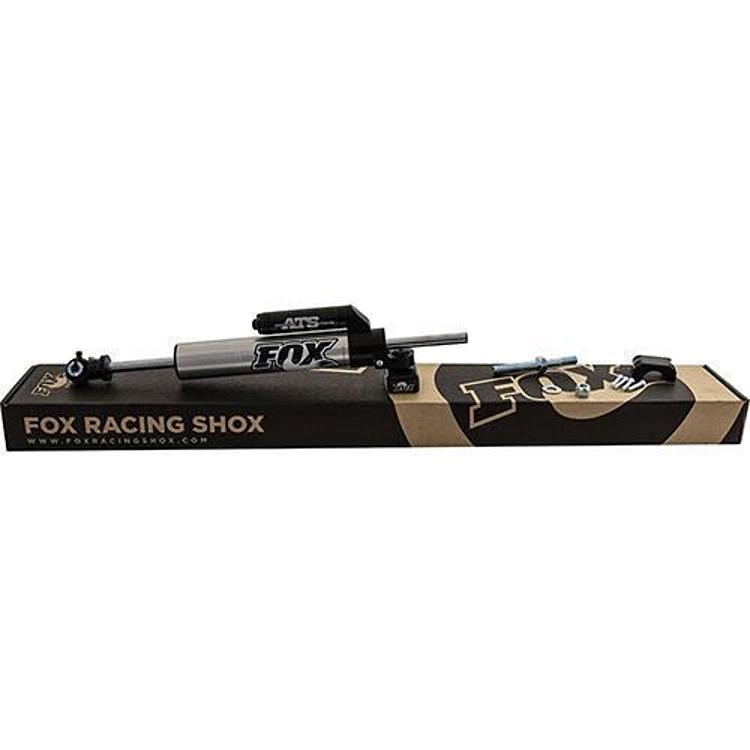

What’s included
The kit includes the ATS stabilizer, brackets, mounting hardware and relocating hardware. Not included: the shock boot.
