Fabtech 5 Inch Radius Arm Lift Kit w/Dirt Logic SS Shocks – K3144DL

Fabtech

Shop Ram 3500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Lists the 2013–2018 Ram 3500 in its listed trims, non-dually models only
  • 5-inch patented radius arm lift with Dirt Logic SS shocks
  • Replacement front coil springs and rear block and U-bolt kit
  • Trac bar relocation bracket, pitman arm and sway bar drops
  • Adjustable alignment cam at the axle

Description

Overview

The Fabtech K3144DL is a 5-inch radius arm lift with Dirt Logic SS shocks for the 2013–2018 Ram 3500. The kit is for non-dually models only and uses replacement coil springs at the front with the radius arm system and a block and U-bolt kit at the rear.

Fabtech’s radius arms are patented and built with a full tubular structure reinforced with dimple die side plates. An adjustable alignment cam at the axle allows caster to be set. The system also includes a trac bar relocation bracket, a pitman arm and sway bar drops. Fitted tires are 315/70R17 on 17×8 wheels with a 4 1/2-inch backspace and 325/65R18 on 18×9.5 wheels with a 4 3/4-inch backspace, both with minor trimming.

Key features

  • 5-inch lift, range 5 to 6.99 inches
  • Patented radius arms.
  • Full tubular arms with dimple die side plates
  • Adjustable alignment cam at the axle
  • Replacement front coil springs
  • Dirt Logic SS shocks included

Radius arm steering changes

Radius arms control the axle’s fore and aft position and carry braking and acceleration loads, so the mounts and bushings see more stress than on a stock truck. The adjustable alignment cam is where caster is set after the install. Set caster carefully, then have the front end aligned, because the trac bar, pitman arm and sway bar drops all affect steering feel and tire wear.

Because the trac bar relocation bracket and pitman arm change steering geometry, inspect the drag link, tie rod ends and related steering components during routine service. Sway bar drops alter how the front end leans in turns, so check the end links and bushings for wear. Keep the torque on all radius arm bolts checked after the first few trail runs, since the arms move through a long range.

Specifications

Brand Fabtech
Part number K3144DL
UPC 674866093577
Lift height 5 inches (range 5 to 6.99 inches)
Suspension type Radius arm with coil springs
Rear lift method Block and U-bolt kit
Tire and wheel fit 315/70R17 on 17×8 with 4 1/2-inch backspace; 325/65R18 on 18×9.5 with 4 3/4-inch backspace
Applies to Non-dually models only
Shocks Dirt Logic SS shocks included

Vehicle fitment

Fits the 2013–2018 Ram 3500 in the Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST and Tradesman models.

Dually models are not covered, and this kit is for 2013 through 2018 model years only. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit includes a trac bar relocation bracket, a pitman arm and sway bar drops, so the steering and sway bar parts are changed during the install. Both listed tire sizes call for minor trimming.

What’s included

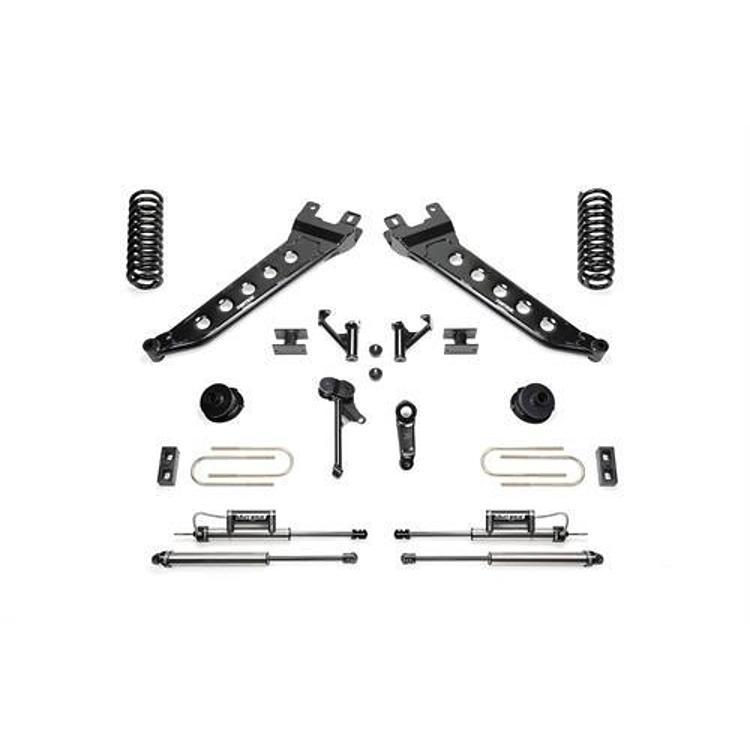

Patented radius arms, replacement front coil springs, a block and U-bolt kit, a trac bar relocation bracket, a pitman arm, sway bar drops and Dirt Logic SS shocks.

SKU: FABK3144DL Category:

Specification

Shipping weight 106.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ram 35002013–2018Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K3144DL fit a dually Ram 3500?

No. This kit is for non-dually models only. Dually trucks are not covered, and the fit covers the 2013–2018 Ram 3500.

Are shocks included with the K3144DL?

Yes. Dirt Logic SS shocks are included with the kit. The front uses replacement coil springs with the radius arms, so the springs and shocks are installed together.

What tire sizes does the K3144DL use?

Fabtech lists 315/70R17 tires on 17x8 wheels with a 4 1/2-inch backspace, and 325/65R18 tires on 18x9.5 wheels with a 4 3/4-inch backspace, both with minor trimming.

Should the steering and sway bar parts be replaced together?

Yes, when the trac bar relocation bracket, pitman arm and sway bar drops are installed, they are usually changed as a set. Inspect the tie rod ends, drag link and sway bar bushings at the same time. Worn steering parts affect alignment and can make the radius arm setup feel loose.
