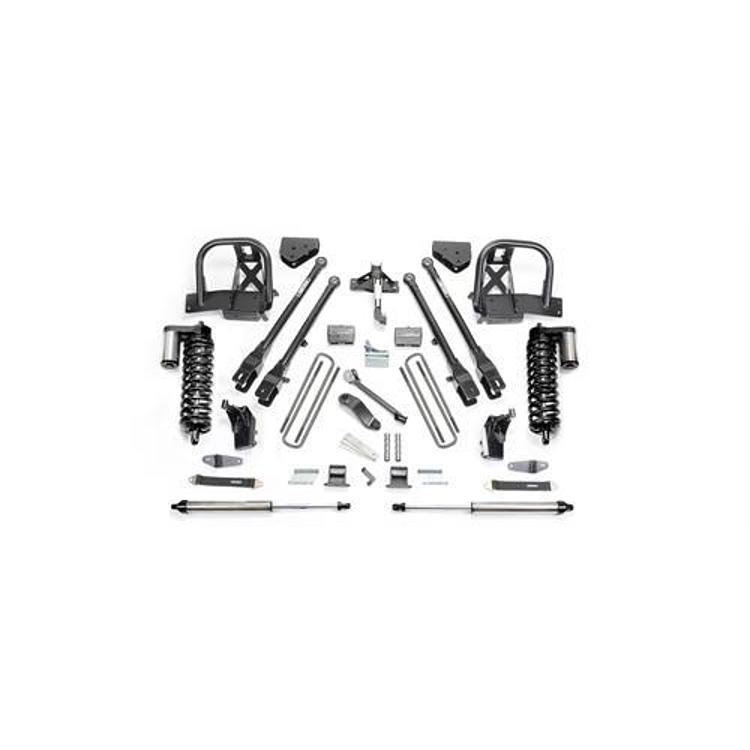

Fabtech 6 Inch 4 Link Lift Kit w/Front Dirt Logic SS 4.0 Coilovers & Rear Dirt Logic SS Shocks – K2146DL

Fabtech

Shop Ford F-350 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Lists the 2008–2015 Ford F-350 Super Duty
  • 6-inch 4-link with front 4.0 coilover conversion
  • 1.75-inch DOM upper mounts and 1/4-inch steel lower mounts
  • Billet sway bar end links with heim ends and quad layer limiting straps
  • Non-dually models only

Description

Overview

The Fabtech K2146DL is a 6-inch 4-link lift with a front Dirt Logic 4.0 coilover conversion and rear Dirt Logic SS shocks. It fits 2008–2015 Ford F-350 Super Duty non-dually trucks and has a lift height range of 5 to 6.99 inches.

The front upper coilover mounts are 1.75-inch diameter DOM tubing that replace the factory coil spring mounts and span a wide section of the frame to spread impact loads. The 1/4-inch thick steel lower mounts attach to the axle housing and hold the Dirt Logic 4.0 piggyback reservoir shocks. Billet sway bar end links with heim ends and quad layer limiting straps are included.

Key features

  • 6-inch lift, range 5 to 6.99 inches
  • 1.75-inch DOM upper coilover mounts
  • 1/4-inch thick steel lower mounts on the axle housing
  • Dirt Logic 4.0 coilover piggyback reservoir shocks
  • Billet sway bar end links with heim ends
  • Quad layer limiting straps

Coilover care basics

Coilover conversions place the spring and shock on a single mount, so the upper mount and lower bracket carry the loads. Inspect the welds on the steel brackets and the tubing for cracks or distortion, especially after rough trail use. Check the upper mounts for movement and the lower mounts for contact with the axle housing.

Piggyback reservoir shocks are sensitive to heat, so keep the reservoir clear of mud and check the hoses for leaks. Long descents can warm the fluid, so monitor the shocks during those runs. Heim end sway bar links should be checked for play and replaced when they feel loose.

Keep the limiting straps in good condition, since they control how far the suspension can droop.

Specifications

Brand Fabtech
Part number K2146DL
UPC 674866097100
Lift height 6 inches (range 5 to 6.99 inches)
Suspension type 4-link with coilover conversion
Upper mounts 1.75-inch DOM tubing
Lower mounts 1/4-inch thick steel, attached to the axle housing
Tire and wheel fit 315/70R17 on 17×8, 325/65R18 on 18×9.5, 35/12.50R20 on 20×9; minor trimming
Applies to Non-dually models only

Vehicle fitment

It fits 2008–2015 Ford F-350 Super Duty trucks, including Cabela’s, FX4, Harley-Davidson, King Ranch, Lariat, Platinum, XL and XLT models.

Dually models are not covered, and F-250 Super Duty trucks do not fit this kit. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

On a gas engine, a front driveshaft modification may be needed to clear the exhaust, so check clearance before installing. The upper mounts replace the factory coil spring mounts, and the lower mounts attach to the axle housing.

What’s included

Upper coilover mounts, lower mounts, the Dirt Logic 4.0 coilover piggyback reservoir shocks, billet sway bar end links with heim ends and quad layer limiting straps.

SKU: FABK2146DL Category:

Specification

Shipping weight 444.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-350 Super Duty2008–2015Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K2146DL fit an F-350 Super Duty?

Yes. It fits 2008–2015 Ford F-350 Super Duty trucks, but only non-dually models are covered. Dually trucks do not fit this kit.

Does the K2146DL need a driveshaft change?

A front driveshaft modification may be needed to clear the exhaust on a gas engine. Check that clearance before installing the coilover mounts.

What tire sizes does the K2146DL use?

The listed sizes are 315/70R17 on 17x8, 325/65R18 on 18x9.5 and 35/12.50R20 on 20x9 wheels, each with minor trimming. Only non-dually models are covered.

How do piggyback reservoir shocks differ from standard shocks?

Piggyback reservoir shocks carry extra fluid in a separate tube, which helps them resist heat buildup during long off-road runs. Inspect the hoses and fittings for leaks and keep the reservoir mounts tight.
