Fabtech 6 Inch 4 Link Lift Kit w/Dirt Logic SS Shocks – K2054DL

Fabtech

Shop Fabtech Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6 inch 4-link lift kit with Dirt Logic SS shocks
  • Fits 2014 models with factory aluminum suspension only
  • Not for all wheel drive, standard cab or AutoRide shock models
  • Part number K2054DL

Description

Overview

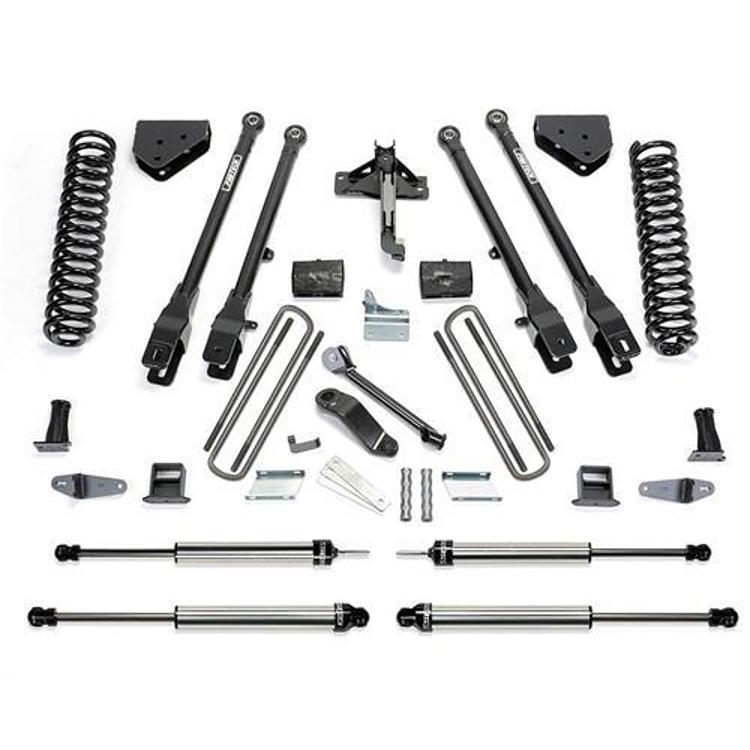

The Fabtech 6 Inch 4 Link Lift Kit with Dirt Logic SS Shocks, part number K2054DL, is a 6 inch 4-link suspension lift kit that includes Dirt Logic SS (DLSS) shocks. It fits 2014 models with factory aluminum suspension only.

The kit uses replacement arms with a stainless uniball that eliminates the upper ball joint and adds caster for easier alignment. Some tire and wheel combinations fit with minor trimming, while several vehicle types are not covered.

Key features

  • 6 inch lift with a 4-link system
  • Dirt Logic SS shocks included
  • Arms eliminate the upper ball joint using a stainless uniball
  • Caster built into the arms for alignment
  • Allows increased wheel travel with Dirt Logic 2.5 coilover shocks
  • Chromoly tubing to reduce flex found in the factory arms
  • 4340 heat treated uniball pin fits the factory ball joint taper without modifying the spindle
  • Rear lift with lift blocks and U-bolts

Alignment and caster setup

Changing control arm geometry affects caster, camber and toe, so the front end should be aligned after the arms are installed. Built-in caster in the new arms gives the alignment shop more room to set the front end, which can make a lifted truck track straighter at speed. Tire size and backspacing also play a part, so check that the selected tire clears the fenders and brake lines at full steering lock.

Uniball joints wear over time, and their dust boots should be inspected at regular intervals. Confirm that shock travel does not bind against the new arms. Keeping the link bolts at the proper tension and rechecking them after the first few drives helps prevent loosening.

  • Check uniball movement and boots
  • Recheck link bolts after the first drive
  • Confirm tire clearance at full lock
  • Align the front end after any arm or shock change

Specifications

Brand Fabtech
Part number K2054DL
UPC 674866096554
Product type Suspension lift kit with shocks
Lift height 6 inches; range 5 to 6.99 inches
Suspension type 4-link
Shocks Dirt Logic SS, included
Rear lift method Lift blocks and U-bolts
Arm material Chromoly tubing
Uniball pin 4340 heat treated

Vehicle fitment

It fits 2014 models with factory aluminum suspension only. Check whether your factory suspension is aluminum or steel before ordering.

It does not fit models with factory AutoRide shocks, all wheel drive models, standard cab models or factory steel suspension. OEM wheels and tires cannot be used. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 4 link system changes control arm geometry, so professional installation is recommended. Keep to Fabtech’s torque figures, tighten the link bolts with the vehicle at ride height, and check them again after the first drive. Align the front end afterward, and look at brake line, driveline and tire clearance before off-road use. Check local rules on vehicle height and lighting for public roads.

What’s included

A 6 inch 4-link lift kit with Dirt Logic SS shocks. Replacement arms and a uniball come with the kit. Tire and wheel combinations that fit with minor trimming are 295/70R17 on 17×8 wheels with 4 1/2 backspacing, 275/65R18 on 18×8 with 4 1/2 backspacing, and 285/55R20 on 20×9 with 5 backspacing.

SKU: FABK2054DL Category:

Specification

Shipping weight 336.50 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

What does the Fabtech K2054DL fit?

No vehicle is named. The system is said to fit 2014 models with factory aluminum suspension only. Check with Fabtech before purchasing.

Will the Fabtech K2054DL fit all wheel drive or standard cab models?

No. It does not fit all wheel drive models, standard cab models or models with factory AutoRide shocks. Confirm your vehicle's year, model and trim before ordering, and check that its factory suspension is aluminum.

What tires can I use with the Fabtech K2054DL lift?

Fabtech lists 295/70R17 on 17x8 wheels, 275/65R18 on 18x8 wheels and 285/55R20 on 20x9 wheels, each with minor trimming. OEM wheels and tires cannot be used.

Does the Fabtech K2054DL include shocks?

Yes. The kit includes Dirt Logic SS (DLSS) shocks. It is a 6 inch 4-link lift that uses rear lift blocks and U-bolts.

Can I run bigger tires after this lift?

Larger tires may need extra trimming or clearance work, since the arms and brake lines change position. Check fender and driveline clearance at full steering lock before driving. Changing tire size also changes gearing and speedometer readings.
