Fabtech 3″ Ball Joint UCA Lift Kit with Rear Stealth Shocks – K1059M

Fabtech

$766.42In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:30 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3-inch ball joint upper control arm lift with Stealth rear shocks
  • Fits 2007–2015 and 2017–2018 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks
  • Clearance for 33-inch tires with thick wall DOM tubular arms and extended range ball joints
  • 1/4-inch steel skid plate and relocated front differential

Description

Overview

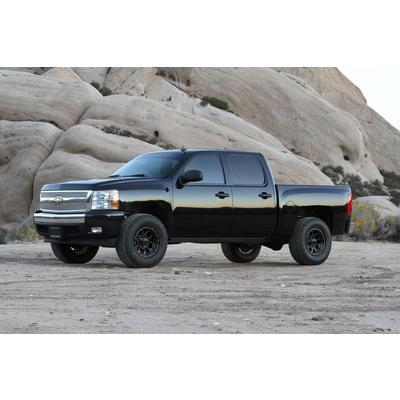

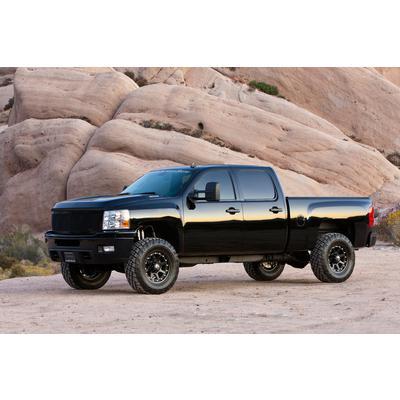

The Fabtech K1059M is a 3-inch ball joint upper control arm lift kit with Stealth rear shocks for Chevrolet Silverado 1500 and GMC Sierra 1500 trucks from 2007 to 2015 and 2017 to 2018. It offers a mild lift with easy installation and clearance for 33-inch tall tires on C/K1500 trucks. 2016 trucks are not covered.

The factory front coilover shocks stay in place with a steel spacer system, which Fabtech says helps retain the stock front ride. The stock upper control arms are replaced with thick wall DOM tubular arms that use heavy duty extended range ball joints. Fabtech states those ball joints add strength to the front suspension compared with the factory parts.

The front differential is relocated to keep CV angles correct at the new height, and a 1/4-inch thick steel skid plate protects the underside. At the rear, a 1 1/2-inch lift block and U-bolts level the stance, and Stealth performance rear shock absorbers replace the factory units for more damping.

Key features

  • 3-inch lift using the factory front coilover shocks
  • Thick wall DOM tubular upper control arms
  • Heavy duty extended range ball joints
  • Relocated front differential for correct CV angles
  • 1/4-inch thick steel skid plate
  • 1 1/2-inch rear lift block with U-bolts
  • Stealth rear performance shock absorbers

Choosing the right setup

Upper control arm lifts keep the factory coil springs and shocks in front while changing the arm geometry, so the ball joints and arm bushings carry a different load than before. A ball joint design like this one generally wears in a different pattern from a stock arm. Inspect the joints at each service, and watch for clicking, play or uneven tire wear that could signal a worn part.

Adding a rear lift block and U-bolts changes pinion angle, so the rear driveline should be checked after installation. Stealth shocks at the rear add damping, which can feel firmer on washboard roads. Keep track of wheel and tire sizes against the clearance noted for the kit, and check fender and steering clearance at full lock before heavy off-road use.

When comparing lift setups, look at how the front differential is positioned, the steering components and the brake line length. Steel skid plates protect the underside but add weight, so consider that when planning payload. Replace worn parts together, such as ball joints and bushings, to keep the new geometry consistent.

Specifications

Brand Fabtech
Part number FABK1059M
Lift height 3 inches
Lift height range 0 to 3.5 inches
Upper control arms Thick wall DOM tubular
Ball joints Heavy duty extended range
Skid plate 1/4-inch steel
Rear lift block 1 1/2 inches with U-bolts
Front shocks Factory, reused
Rear shocks Stealth, included
Tire clearance 33-inch tall tires on C/K1500 trucks
Fitment type Direct fit

Vehicle fitment

It fits 2007 to 2015 and 2017 to 2018 Chevrolet Silverado 1500 models in the Custom, High Country, LS, LT, LTZ, SSV and WT versions, and GMC Sierra 1500 models in the Base, Denali, SL, SLE, SLT and WT versions.

2016 and 2019 and later 1500 trucks are not covered. Some wheel and tire options need minor trimming, so check clearance before mounting. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Replacing the upper control arms with a ball joint design changes the front geometry, so a wheel alignment is required afterward. The relocated front differential needs a CV angle and driveline check. Check the rear driveline angle once the 1 1/2-inch block is set.

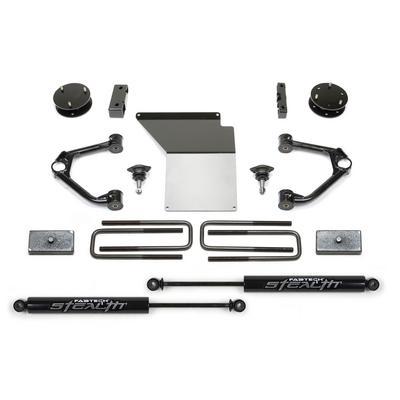

What’s included

The kit includes the thick wall DOM tubular upper control arms, the heavy duty ball joints, the steel spacer system, the 1/4-inch steel skid plate, the 1 1/2-inch rear lift block with U-bolts and the Stealth rear shock absorbers.

Not included: Tires and wheels, sold separately. Choose sizes that fit within the clearance for this kit.

SKU: FABK1059M Categories: ,

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002007–2015, 2017–2018Custom, High Country, LS, LT, LTZ, SSV, WT
GMC Sierra 15002007–2015, 2017–2018Base, Denali, SL, SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K1059M fit a 2017 Sierra 1500?

Yes. It fits GMC Sierra 1500 models from 2017 and 2018 in the Base, Denali, SL, SLE, SLT and WT versions. 2016 models are not covered, so confirm the year before ordering.

How is this kit different from the K1071?

The K1059M uses thick wall DOM tubular upper control arms with heavy duty extended range ball joints, and it includes Stealth rear shocks. The K1071 uses Uniball arms with performance rear shocks. Both are 3-inch lifts.

Does the lift clear 33-inch tires?

Yes. The kit provides clearance for 33-inch tall tires on C/K1500 trucks. Some wheel and tire options need minor trimming, so confirm fender and wheel clearance before mounting the tires.

How often should upper control arm ball joints be inspected?

Inspect them at each service and after rough trail use. Look for play, torn boots or clicking when turning. Because the ball joints carry the steering load at the new geometry, replace any joint that shows movement rather than adjusting around it.
