Overview

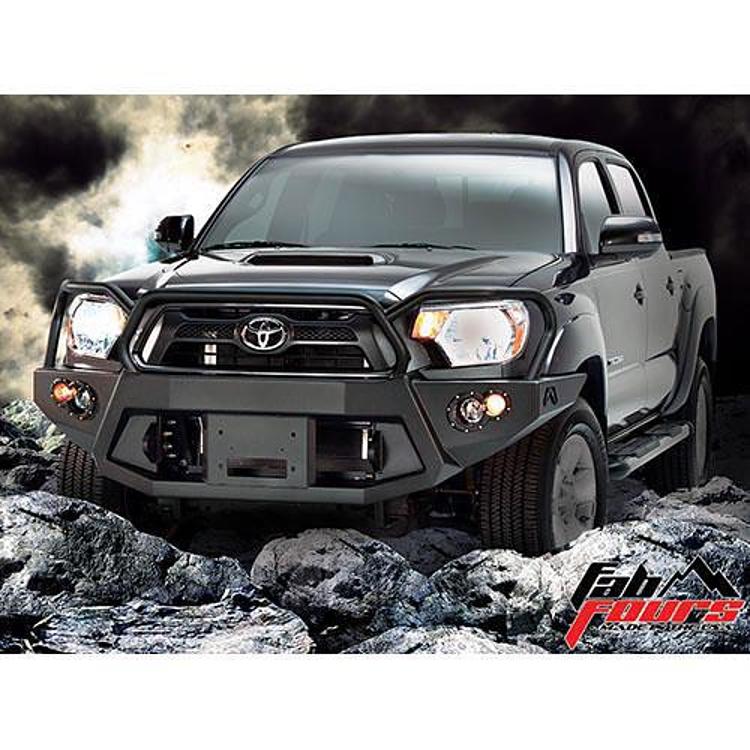

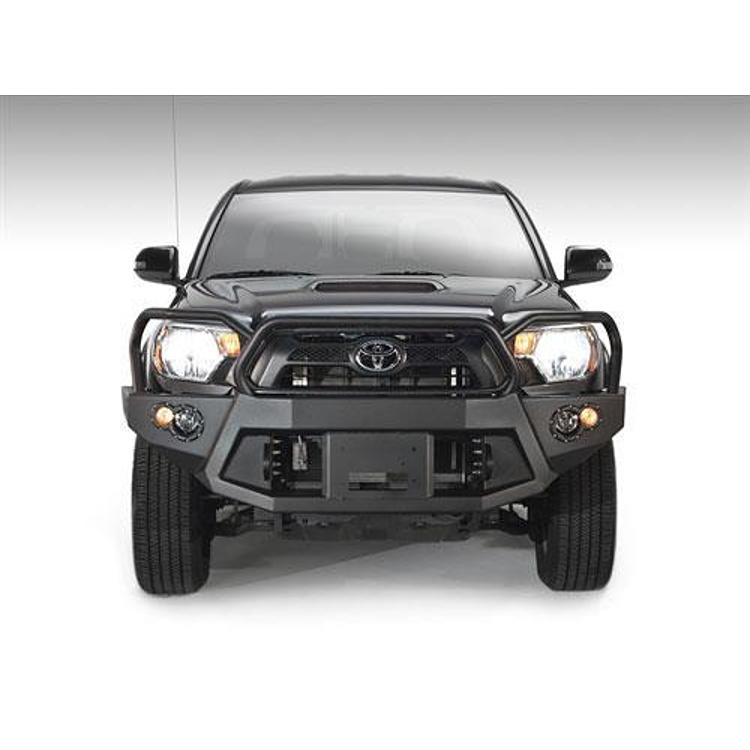

The Fab Fours TT12-B1650-1 is a premium front winch bumper with a full grill guard, made from 3/16 inch steel with a 2 stage matte black powder coat. It is built for strength and durability and gives extra tire clearance to stop rubbing.
The winch mount accepts winches up to 10,000 lb, and the bumper includes 3/4 inch D-ring mounts, air ducts and light housings. A 1/4 inch boxed mounting system provides adjustment for a custom fit. The full guard, a pre-runner guard and a base bumper are offered in this line, and the -B version of the part number is bare steel.
Key features
- Winch ready: accepts winches up to 10,000 lb or smaller
- 3/4″ D-ring mounts
- 1/4″ boxed mounting system with adjustability for a custom fit
- Injection molded light housings with 90mm fog lights and 60mm turn indicator lights
- Air ducts built into the bumper
- Extra tire clearance to eliminate rubbing
- Matte black powder coat on the -1 version; the -B version is bare steel
Choosing a winch setup
A winch bumper works best when the winch, the mounting plate and the bumper’s mounts are matched. Check the winch’s rated line pull and its weight before installing, since a heavy winch adds load to the bumper and the vehicle’s front end. Winch mounts are rated for use with a specific range of winches, so compare the winch size against the bumper’s stated maximum before buying one.
Wiring for a winch is a separate job. Run heavy gauge cable with a proper fuse and keep the solenoid and remote control in a dry spot. Shorten or route cable so it does not rub against the bumper or the frame. Light housings and air ducts need the same care, because loose wiring near them can chafe over time.
On the trail, a winch bumper protects the radiator and front components from rocks and brush, while the grill guard keeps the lights and grille from taking hits. Plan the bumper’s weight into your suspension setup, especially if you also add armor or a heavier tire.
- Match winch capacity to the bumper’s maximum
- Use proper fusing and routed cable
- Recheck bolts after the first rough runs
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | TT12-B1650-1 |
| UPC | 5810104467 |
| Type | Front winch bumper with full grill guard |
| Material | Steel, 3/16″ thick |
| Finish | 2 stage matte black powder coat (-1); bare steel (-B) |
| Maximum winch | 10,000 lb |
| D-ring mounts | 3/4″ |
| Mounting system | 1/4″ boxed, adjustable |
| Lights | 90mm fog lights and 60mm turn indicator lights |
| Country of manufacture | USA |
Vehicle fitment
It is a direct fit bumper for the vehicle it was built for. Confirm fit for your vehicle’s year, model and trim before ordering.
Do not assume a make or model from the part number. Confirm fit for your vehicle’s year, model and trim before ordering.
What’s included
- Front winch bumper with full grill guard
- Winch mount
- 3/4″ D-ring mounts
- 90mm fog lights and 60mm turn indicator lights
Not included: the winch.
