Overview

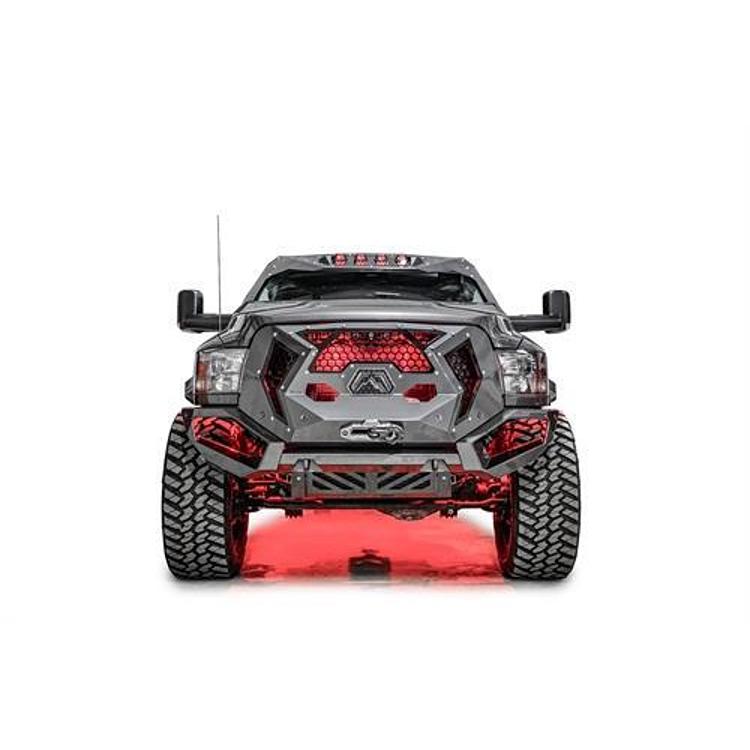

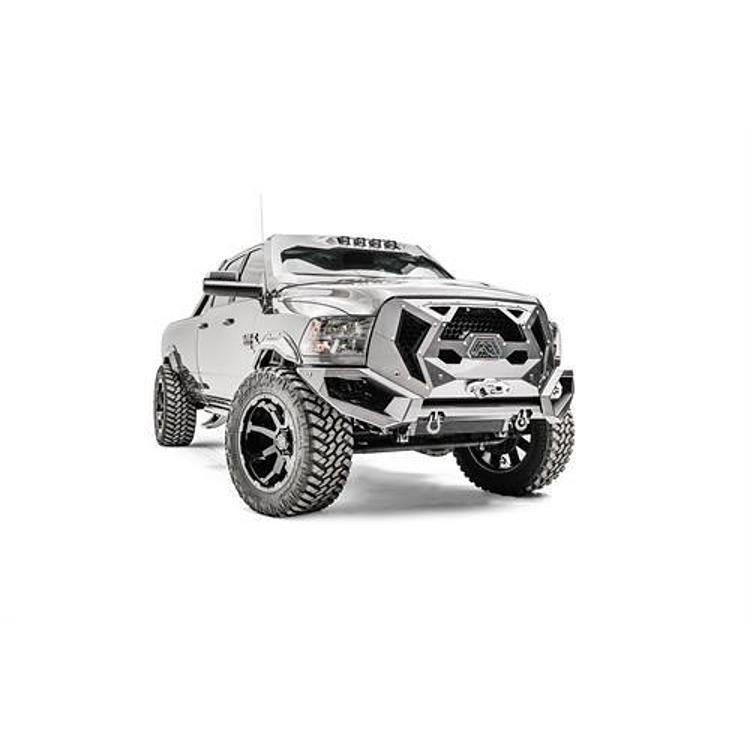

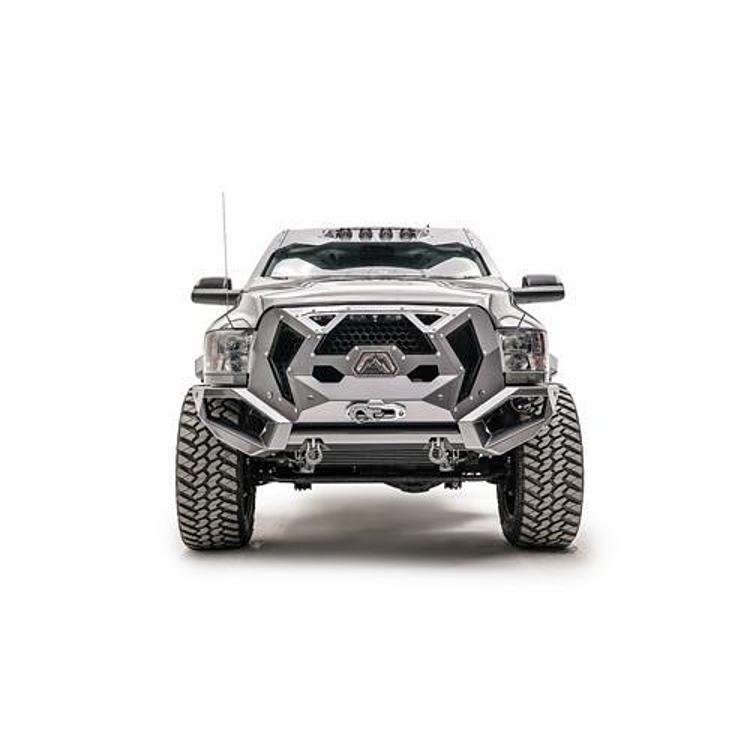

The Fab Fours Front Full Width Truck Grumper, part number GR2900-1, is a black powder-coated grille and winch bumper combination built for the 2016–2018 Ram 2500.
It combines a grille and sensor-compatible winch bumper in one 13-piece modular design with removable inserts. Cutouts allow airflow and sensors, and mounts on each side take two 3 x 3 cubed lights. The winch tray is rated for a Warn Zeon up to 12,000 lb, and an intercooler shield is included. The Grumper design is covered by a US patent. The high-mounted grille and modular inserts are designed to set the Ram apart.
Key features
- Combines grille and bumper
- 13-piece modular design with removable inserts
- Integrated sensor hole cutouts
- Intercooler shield included
- Mounts on each side for two 3 x 3 cubed lights
- Built for a Warn Zeon winch up to 12,000 lb (tested only with Warn Zeon)
- Bolt-on with stainless steel hardware and brackets that tie to the frame
- 11-gauge U.S. steel, 3/16 steel winch tray, patented
Sensors and winch choices
Factory sensors on a modern truck depend on clear openings and correct spacing, so any new bumper needs careful attention at the sensor cutouts. Look at how the grille section sits against the radiator and the intercooler shield, and make sure the cutouts line up with the sensor housings before final tightening.
When picking a winch, look at its mounting pattern, weight and cable length against the tray. The tray is tested with one winch brand only, so a different winch may need extra checking for fit and wiring. Keep the winch wiring away from the sensor harness and secure both with clips.
- Line up sensor cutouts before final tightening
- Check winch mounting pattern against the tray
- Keep winch wiring apart from the sensor harness
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | GR2900-1 |
| UPC | 5810115814 |
| Position | Front |
| Width | Full |
| Material | U.S. steel, 11 ga.; 3/16 steel winch tray |
| Finish | 2-stage matte black powder coat |
| Hardware | Stainless steel, with frame brackets |
| Winch rating | Up to 12,000 lb (Warn Zeon) |
| D-ring mounts | Included |
| Winch mount | Included |
| Light mounts | Included |
| Fit type | Direct fit |
Vehicle fitment
It fits the 2016–2018 Ram 2500 and is also made for 2016–17 Dodge Ram HD 2500–3500 trucks.
Ram 1500 and the redesigned later-year heavy-duty trucks are not part of this part. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bumper installs as a complete bolt-on using stainless steel hardware and the provided brackets, which tie directly to the frame.
Fab Fours has tested the winch tray only with the Warn Zeon.
What’s included
- Full-width truck Grumper
- Stainless steel hardware and frame brackets
- Intercooler shield
- D-ring mounts and winch mount
- Light mounts
Not included: The 3 x 3 cubed lights and the winch.
