Overview

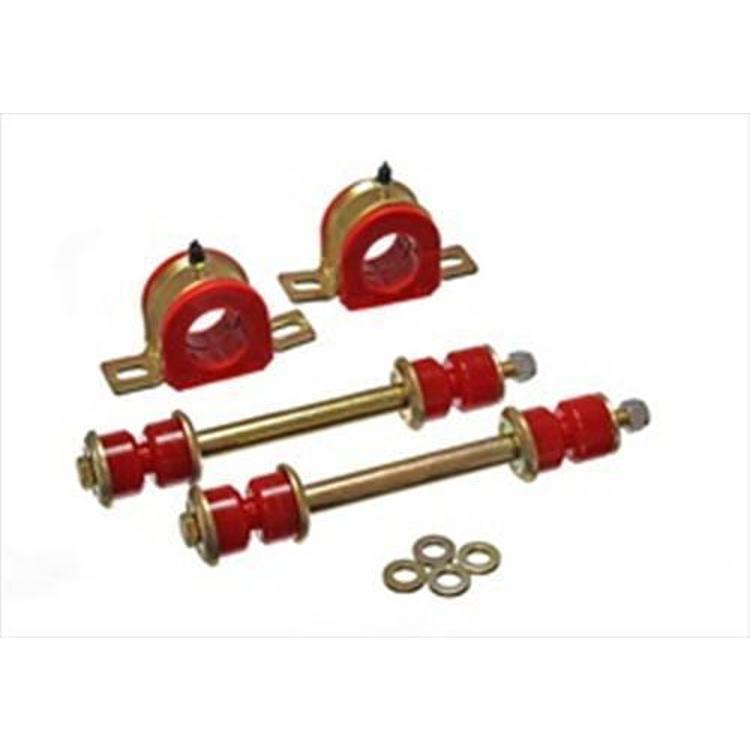

The Energy Suspension 3.5213R is a front sway bar bushing set in red performance polyurethane, and it includes sway bar end links. It fits Chevrolet Silverado 1500, 2500 HD and 3500 HD trucks and GMC Sierra 1500, 2500 HD and 3500 HD trucks.
Energy Suspension says its polyurethane bushings and end links offer the greatest improvement in performance among its products. The bushings are made of HYPER-FLEX polyurethane, which the company says lasts much longer than O.E.M. rubber.
Key features
- Red performance polyurethane bushings
- HYPER-FLEX polyurethane construction
- Includes sway bar end links
- Greasable bushings
- Front position
Keeping sway bar links in shape
Sway bar end links connect the bar to the suspension and take repeated load each time the truck leans in a turn or rises over an obstacle. Their bushings and ball joints wear over time, which shows up as rattling over rough pavement, a loose feel at the front and faster wear on nearby parts. Because end links and bushings share the same job, they are usually inspected and replaced together.
Greasable bushings need periodic lubrication to keep them moving freely. Use a grease suited to polyurethane and avoid overfilling, which can push out a seal. After installation, recheck the mounting hardware once the truck has been driven a short distance and again after rough use.
- Grease bushings at the intervals used for other chassis points
- Replace end links that show play or torn boots
- Recheck hardware after the first short drive
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 3.5213R |
| UPC | 703639071761 |
| Product type | Sway bar bushing set |
| Material | Performance polyurethane (HYPER-FLEX) |
| Color | Red |
| Position | Front |
| Included | Sway bar end links, greasable bushings |
Vehicle fitment
It fits the 1999–2004 Chevrolet Silverado 1500 (Base, Hybrid, LS, LT and WT trims), 2001–2010 Chevrolet Silverado 2500 HD (Base, LS, LT, LTZ and WT trims), 2007–2010 Chevrolet Silverado 3500 HD (LT, LTZ and WT trims), 1999–2004 GMC Sierra 1500 (Base, HT, SL, SLE, SLT and WT trims), 2001–2004 and 2007–2010 GMC Sierra 2500 HD (Base, SL, SLE, SLT and WT trims) and 2007–2010 GMC Sierra 3500 HD (SLE, SLT and WT trims).
Other Chevrolet or GMC models and years outside these ranges are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The set includes end link bushings, so plan to replace the end links along with the bushings. The bushings are greasable, so grease them during assembly. Support the front end securely before working on the sway bar.
