Daystar 1 Inch Body Lift – KJ04505BK

Daystar

Shop Daystar Body Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Daystar 1 inch body lift, part number KJ04505BK
  • Raises the body 1 inch with polyurethane replacement body mounts
  • Black bushings with all necessary hardware included
  • UPC 814423010160
  • Fit is not confirmed for this kit; check your year, model and trim first

Description

Overview

The Daystar KJ04505BK is a 1 inch body lift made from complete replacement body mounts rather than spacer blocks. Each mount adds 1 inch of height, raising the body 1 inch above the frame. It suits off-road builds that need more clearance, such as high-clearance skid plates in a belly-up setup, engine conversions, and larger tires and wheels. Confirm your vehicle’s year, model and trim before buying.

The mounts hold the body in proper alignment with the frame. The polyurethane blend resists vehicle fluids and road grime and keeps the body isolated from chassis noise and vibration. Relocating the body 1 inch means no other changes are needed for the fuel filler neck, the wiring or the steering sector shaft.

Key features

  • Raises the body 1 inch using replacement body mounts
  • Polyurethane mounts that resist vehicle fluids and road grime
  • Isolates the body from chassis noise and vibration
  • Keeps the body properly aligned with the frame
  • Black bushings
  • All necessary hardware included
  • No changes needed to fuel filler necks, wiring, or the steering sector shaft
  • Transfer case linkage brackets included on some applications
  • Listed with a limited lifetime warranty

Choosing a body lift

A body lift adds clearance by moving the body up, not by changing the suspension. That makes it a practical option when the goal is more room for larger tires or belly-mounted skid plates without changing axle or spring geometry. It does not add articulation or wheel travel, so builds focused on rock crawling usually pair it with suspension and tire upgrades.

Before committing, think about what the truck will be used for. Replacement mounts are only one part of the job, and the surrounding parts matter just as much. Brake lines, shifter and transfer case linkage, and exhaust hangers should all be checked for slack after the body moves. Aftermarket bumpers or skid plates may need their own mounting checks.

  • Decide whether tire clearance or skid protection is the goal
  • Check brake lines and linkages for slack
  • Inspect exhaust hangers after the lift
  • Plan an alignment check once the body is seated

Specifications

Brand Daystar
Part number KJ04505BK
UPC 814423010160
Product type Body lift kit
Lift height 1 inch
Spacer material Polyurethane
Bushing color Black
Mount style Direct fit replacement body mounts
Included hardware All necessary installation hardware

Vehicle fitment

Fit for this kit has not been confirmed for a specific vehicle. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A body lift replaces the factory body mounts rather than adding a shim on top of them. Depending on vehicle age, inspect the other mounts and components that the body rests on, and replace any item that shows evidence of wear or cracking before installing the new mounts. Transfer case linkage brackets are included on some applications, so check that they are present for your vehicle. Support the raised body securely while working beneath it.

What’s included

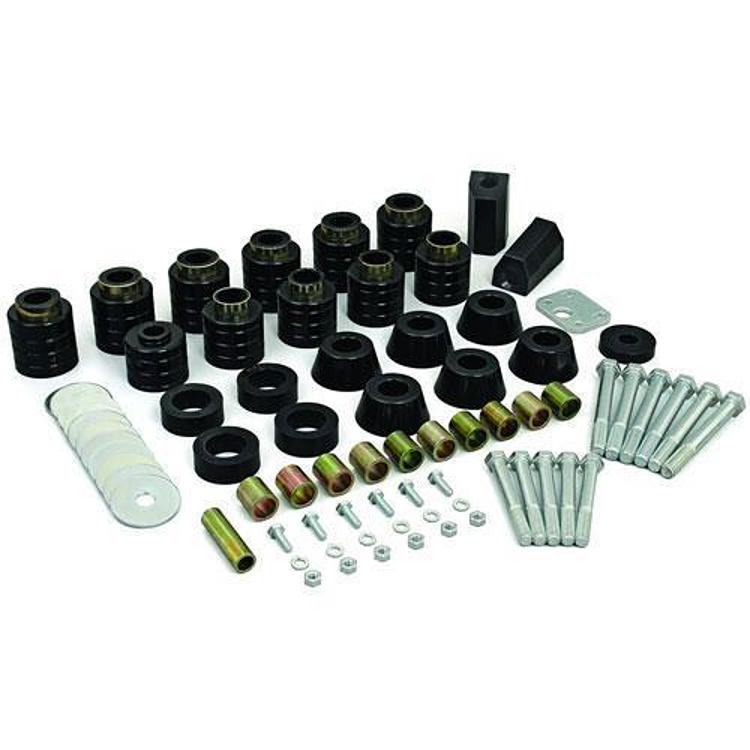

The kit includes the replacement body mounts with black bushings and all the necessary hardware for installation. Transfer case linkage brackets are included on some applications.

SKU: DAYKJ04505BK Category:

Specification

Shipping weight 10.00 lbs
Package dimensions 12.00 × 8.00 × 8.00 in
brands

Questions & Answers

Does the Daystar KJ04505BK raise the body 1 inch?

Yes, it raises the body 1 inch. The kit is a 1 inch body lift built from replacement body mounts rather than spacer blocks, and each mount adds 1 inch of height above the frame.

What are the part number and UPC for this body lift?

The part number is KJ04505BK and the UPC is 814423010160. The brand is Daystar, and the product is a 1 inch body lift kit.

Is hardware included with the kit?

Yes. All the necessary hardware for installation is included. Transfer case linkage brackets come with some applications only, so confirm your application includes them before starting work.

Which vehicles does this body lift fit?

Fit for this kit has not been confirmed for any specific vehicle, so compare the kit against your truck's year, model and trim before installing. Confirm fit for your vehicle's year, model and trim before ordering.

Will a body lift change how my truck handles?

It can change the feel slightly, mainly because the center of gravity sits higher. The suspension and steering stay the same, so handling changes are usually modest. Drive carefully after installation and recheck the bolts after the first trips.

Is a body lift the same as a suspension lift?

No. A body lift moves the body upward on new mounts and leaves the suspension in place. A suspension lift changes the springs or components that hold the axles, so it affects ride height and geometry differently.
