Daystar 3 Inch Body Lift Kit – PA10053

Daystar

Shop Daystar Body Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Daystar PA10053 3 inch body lift kit
  • Includes steering extension, front and rear bumper brackets and radiator relocation brackets
  • Brake line extension and power steering lines included
  • All required hardware included, UPC 618089006624

Description

Overview

The Daystar PA10053 is a 3 inch body lift kit. A body lift raises the vehicle body off the frame, which adds tire clearance, and this kit includes the brackets and extensions needed to make the lift work.

It is a direct fit kit. Confirm fit for your vehicle’s year, model and trim before ordering.

Key features

  • 3 in. body lift height
  • Front and rear bumper brackets included
  • Radiator relocation brackets and a brake line extension
  • Steering extension and power steering lines
  • All required hardware included

Lines and steering after a lift

A body lift moves the body up from the frame while the drivetrain stays where it is, so anything that runs between the two has to stretch or be extended. Typical items include wiring, the throttle cable, the brake hose and the steering column, and each one should be checked for slack and tension before the vehicle is driven on the road.

Lift height is a balance between tire clearance and how the vehicle handles. A taller body raises the center of gravity, so braking and cornering feel different afterward. Driveline angles can change as well, which can cause vibration at highway speed, so a short road test after installation is worth the time.

  • Check the fuel and vent lines for stretch
  • Look at wiring harness slack at each bracket
  • Recheck bolt torque after the first few drives
  • Confirm the hood and radiator fan clear the new position

Specifications

Brand Daystar
Part number PA10053
UPC 618089006624
Lift height 3 in.
Included hardware All required hardware is included with the kit.

Vehicle fitment

Fit depends on your exact vehicle, so match the kit to your year, make, model and trim before buying.

Body lift brackets and extensions are positioned for specific vehicles, so match the kit to your model before buying. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit adds brake line and power steering line extensions along with a steering extension, so those lines and the steering linkage must be checked after the body is raised. Test the brakes and steering in a slow, careful test drive before normal use.

What’s included

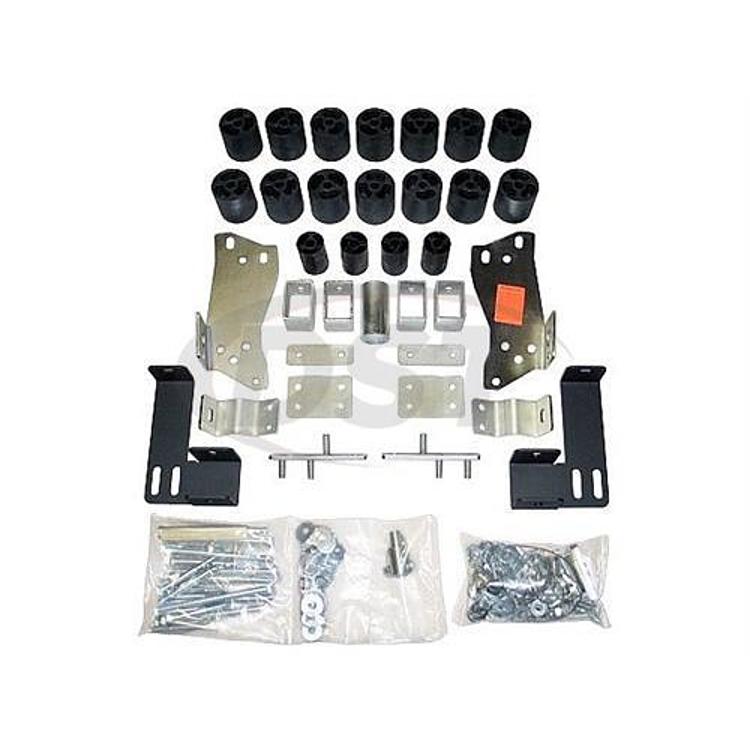

Body lift kit with steering extension, front and rear bumper brackets, radiator relocation brackets, brake line extension, power steering lines and all required hardware.

SKU: DAYPA10053 Category:

Specification

Shipping weight 42.20 lbs
Package dimensions 16.00 × 12.00 × 4.00 in
brands

Questions & Answers

What is the Daystar PA10053?

The Daystar PA10053 is a 3 inch body lift kit with front and rear bumper brackets, a steering extension, brake line and power steering line extensions, and the hardware needed for installation.

Does the PA10053 fit my vehicle?

Confirm fit for your vehicle's year, make and model before ordering. Body lift brackets are positioned for specific vehicles, so match the kit to your exact model before installing it.

Does the kit include bumper brackets and hardware?

Yes. It includes front and rear bumper brackets, radiator relocation brackets and all required hardware. The kit also includes a steering extension, brake line extension and power steering lines.

How do I know if a body lift needs more brake line length?

Check whether the brake hose is pulled tight or the steel line is stressed when the steering turns. A tight or stretched line should be corrected before driving. Use the extension included with the kit only in the position it was designed for.

Do body lifts affect alignment or driveshaft angle?

Yes, a body lift can change driveline angles and may shift how the steering geometry feels. Check for driveline vibration after installation and have an alignment checked once the lift settles.
