Dana Spicer Dana Super 30/Dana 44 Front Outer Replacement Axle Shaft – 10015183

Dana Spicer

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front outer replacement axle shaft, 6.33 inch long
  • 32 splines, SAE-4340 chromoly
  • For Dana Super 30, Dana 44 and Ultimate Dana 44 front axles
  • Requires a 5-7166X U-joint
  • Part number 10015183

Description

Overview

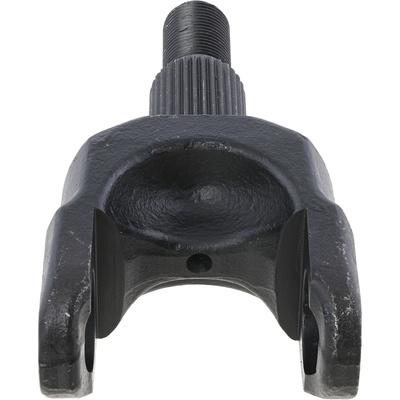

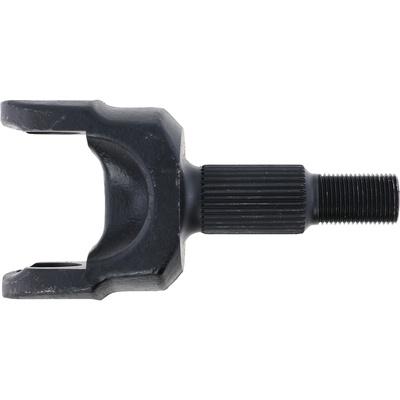

The Dana Spicer 10015183 is a front outer replacement axle shaft for Dana Super 30, Dana 44 and Ultimate Dana 44 front axles. It is 6.33 inch long, has 32 splines and is made from SAE-4340 nickel chromoly steel. It fits the 2007–2018 Jeep Wrangler (JK).

Dana Spicer says chromoly shafts like this one are engineered for strength and durability in off-road use. The steel gives extra toughness, high-temperature strength and abrasion resistance. The shaft is an outer stub, so it is fitted at the wheel end of the front axle.

Key features

  • Front outer position, outer stub
  • Length 6.33 inch
  • 32 splines
  • SAE-4340 nickel chromoly steel
  • Fits Dana Super 30, Dana 44 and Ultimate Dana 44 front axles

Outer stub and U-joint service

The outer stub connects the axle shaft to the hub or wheel end, and it carries drive torque to the tire. The U-joint at the shaft end allows the angle change as the suspension moves. A worn U-joint can make a clunk on acceleration or a vibration at speed, and it often wears faster on vehicles that run large tires or hard trail use.

Before fitting a new outer shaft, inspect the spline ends and the hub face for wear, and clean any rust or debris from the mating surfaces. Use fasteners that match the axle type, and check the U-joint for smooth movement with no play. Because the joint is a wear item, replacing it together with the shaft during a repair is common practice.

  • Inspect the U-joint caps for play
  • Clean the spline and hub mating surfaces
  • Check the boot or seal for damage

Specifications

Brand Dana Spicer
Part number 10015183
Axle type Dana 30/44, Super 30, Dana 44 or Ultimate Dana 44
Axle location Front
Position Front outer
Shaft location Outer stub
Length 6.33 inch
Spline count 32
Material SAE-4340 nickel chromoly
U-joint required 5-7166X

Vehicle fitment

It fits the 2007–2018 Jeep Wrangler (JK), in two-door and four-door models. The Wrangler JL is outside its fit. Match the year, model and trim to your vehicle first.

It goes in the front outer position only, so check the axle type and the side before buying.

Installation notes

A 5-7166X U-joint is required with this shaft, so order it with the shaft. Confirm the front axle is a Dana Super 30, Dana 44 or Ultimate Dana 44 before fitting.

What’s included

One front outer axle shaft. Order the 5-7166X U-joint separately, since it is required with this shaft.

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary (2-Door), 75th Anniversary (2-Door), Rubicon (2-Door), Sahara (2-Door), Sport (2-Door), Sport S (2-Door), Unlimited 70th Anniversary (4-Door), Unlimited 75th Anniversary (4-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door), Unlimited X (4-Door), X (2-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 10015183 need a U-joint?

Yes. A 5-7166X U-joint is needed with this shaft, so order it separately. The shaft itself is the front outer stub for a Dana Super 30, Dana 44 or Ultimate Dana 44 axle.

How long is the 10015183?

It is 6.33 inch long, with 32 splines and SAE-4340 nickel chromoly construction. It is a front outer stub replacement.

Does the 10015183 fit a Wrangler JK?

Yes. It fits the 2007–2018 Jeep Wrangler (JK), in two-door and four-door models. The Wrangler JL is outside its fit.

How do I tell if the U-joint needs replacing?

Look for play at the joint, a clunk when shifting from drive to reverse, or a vibration that rises with speed. Rust or dry bearing caps are also signs. If any appear, replace the joint before it damages the shaft.

Can the U-joint be swapped on the trail?

A field repair is possible with the right tools and a spare joint, but it is a short-term fix. Carry the correct part and fasteners, then plan a full inspection once back at a workshop.
