Dana Spicer Dana 60 Replacement Front Axle Shaft Assembly – 76472X

Dana Spicer

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1994–1999 Dodge Ram 2500 and 3500 with ABS
  • Dana 60 front driver side shaft assembly, 25.64 inches
  • 33 spline outer, 30 spline inner, u-joint installed

Description

Overview

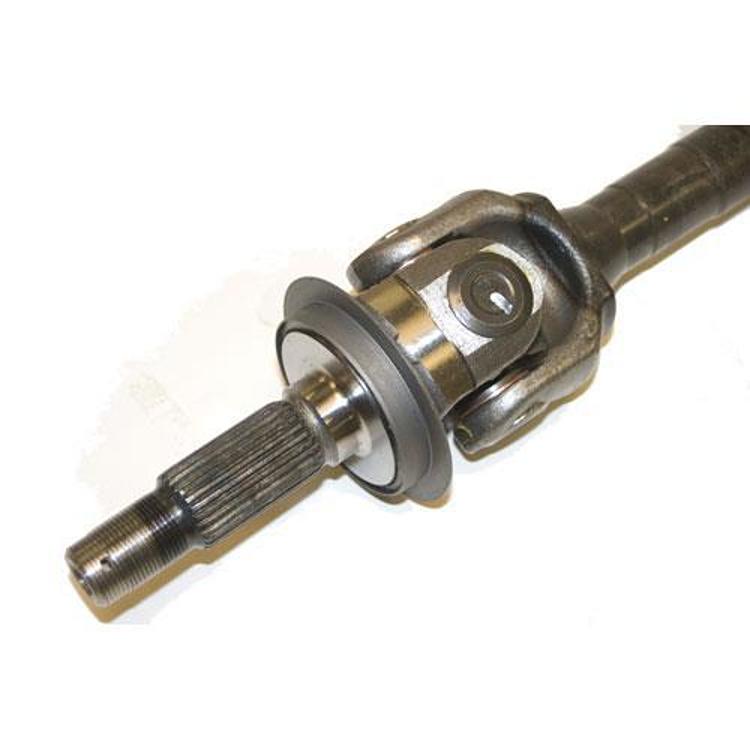

The Dana Spicer 76472X is an all-new Dana 60 front driver side axle shaft assembly with ABS, 25.64 inches long, for the 1994–1999 Dodge Ram 2500 and 3500. Dana Spicer says its axle shaft assemblies come with the inner and outer shafts and the u-joint installed at the factory. The 76472X is the driver side assembly for Dana 60 front axles on ABS-equipped trucks, accepting the 5-806X u-joint.

The outer shaft has 33 splines and the inner shaft has 30. Micro-alloy material is used for strength, and a statistically controlled heat treatment sets the hardness. The assembly is the full driver side unit, with the u-joint installed at the factory, rather than a single shaft. The 1994–1996 Ram 1500 in Base trim is also covered.

Key features

  • Front driver side shaft assembly
  • Inner and outer shafts with u-joint installed at the factory
  • 33 spline outer shaft, 30 spline inner shaft
  • 25.64 inches overall length
  • For use with ABS
  • Accepts the 5-806X u-joint

Replacing a front axle assembly

A complete assembly is a larger job than a stub. The inner shaft, outer shaft and joint all carry load, so wear in any one of them can show up as vibration, clicking or a slipping spline. Before buying, check the hub bearings, seals and the boot on the joint, since replacing only the shaft can leave a worn part in place.

Installation is easier when the old assembly is fully removed and the mounting surfaces are cleaned. Make sure the splines line up without forcing them, and that the ABS sensor and its wiring are routed clear of moving parts. Re-check the fasteners after the first drives and look for leaks at the seals.

  • Check hub bearings and seals before installing
  • Clean the mounting surfaces thoroughly
  • Confirm ABS sensor wiring is routed clear
  • Re-check fasteners after the first drives

Specifications

Brand Dana Spicer
Part number 76472X
Axle manufacturer Dana
Axle position Front
Shaft location Driver Side Assembly
Axle type Dana 60
Position Front Left
Spline count 30 Splines
Overall length 25.64 inches
Outer shaft splines 33
Inner shaft splines 30
Material Micro-alloy
ABS With ABS
Accepts 5-806X u-joint
Applications noted 94-99 Ram 2500/3500

Vehicle fitment

Fitment covers three Ram lines.

  • 1994–1996 Dodge Ram 1500 (Base)
  • 1994–1999 Dodge Ram 2500 (Base)
  • 1994–1999 Dodge Ram 3500 (Base)

Coverage includes the 1994–1999 Ram 2500 and 3500, while the 1500 applies only for 1994–1996. Trucks without ABS and later Rams are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The u-joint arrives installed at the factory, so the assembly drops in as one unit; it is specific to ABS-equipped trucks.

What’s included

A front driver side axle shaft assembly with the inner shaft, outer shaft and u-joint already installed.

SKU: D/S76472X Category:

Specification

Shipping weight 19.45 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Dodge Ram 15001994–1996Base
Dodge Ram 25001994–1999Base
Dodge Ram 35001994–1999Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What trucks use the Dana Spicer 76472X?

The 76472X fits 1994–1999 Dodge Ram 2500 and 3500 trucks with ABS, plus the 1994–1996 Ram 1500 in Base trim. Confirm your year, model and trim before ordering.

What does the 76472X include?

A complete assembly with the inner and outer axle shafts and the u-joint installed at the factory, for the front driver side.

How many splines does the 76472X have?

The outer shaft has 33 splines and the inner shaft has 30. The assembly is 25.64 inches overall and accepts the 5-806X u-joint.

Should I replace the axle shaft or the whole assembly?

Replace the whole assembly when the inner shaft, outer shaft and joint all show wear, or when the hub bearings and seals are also failing. A single shaft can be enough when only one part is damaged, but mixing old and new parts can cause vibration, so inspect the matching parts before deciding.
