Overview

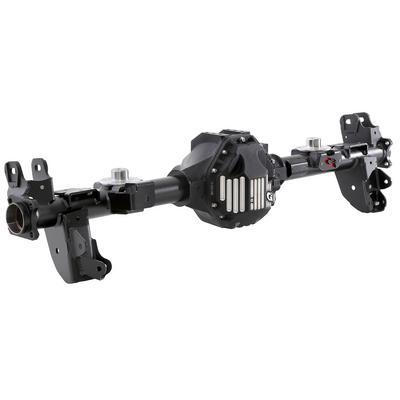

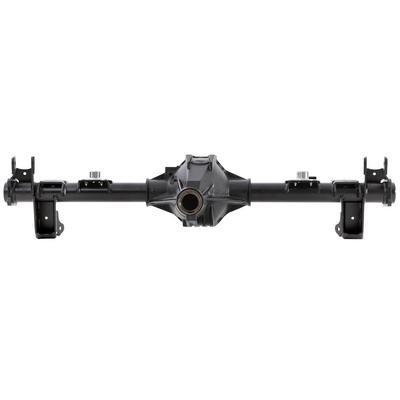

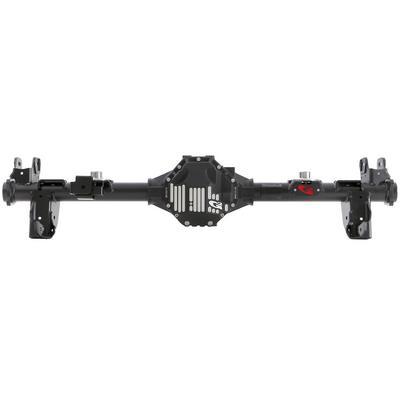

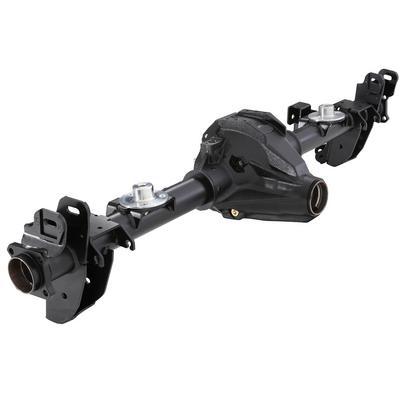

The G2 Axle and Gear Core 44 rear metric axle housing (part 67-2052JKRRH) is a Dana 44 housing that fits 2007–2016 Jeep Wrangler (JK) 2-door and 4-door models.
The Core 44 is American-made and accepts the latest generation Dana 44 gear design, with a larger diameter ring gear and a bigger pinion shaft for hard off-road use. It has forged bearing caps and a G-lock adjuster nut system for setting backlash and carrier bearing preload. The axle tubes are 3 in. diameter, 5/16 in. wall DOM tubing with forged inner Cs, with extra ribbing on the cast center section. The brackets are laser cut and CNC formed from 3/8 in. steel, with gussets at weak points, and the housing has a UV-stable black powdercoat. The brackets follow the stock mounting points. Confirm the axle position and your vehicle’s year, model and trim before ordering.
Key features
- Forged bearing caps
- G-lock adjuster nut system for backlash and carrier bearing preload
- Ribbed cast center section
- 3 in. diameter, 5/16 in. wall DOM axle tubes with forged inner Cs

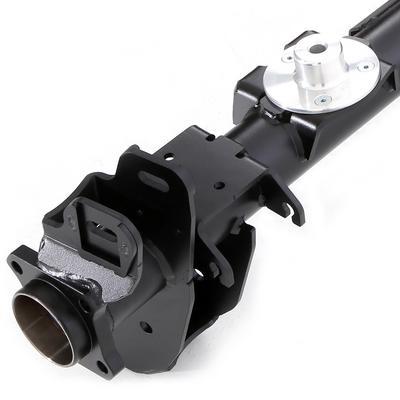

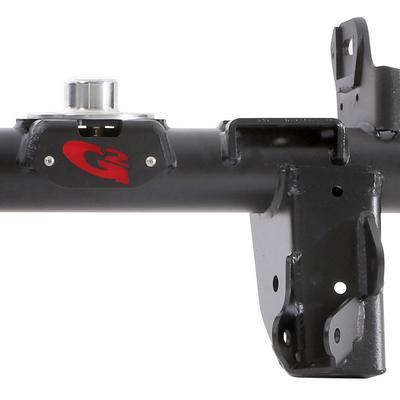

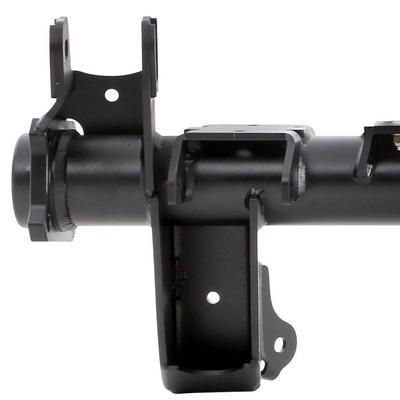

- Brackets laser cut and CNC formed from 3/8 in. steel, with added gussets
- UV-stable black powdercoat finish
Choosing a housing for your build
A Dana 44 housing holds the axle tubes, bearing caps and carrier, so its strength shapes how the whole axle performs off road. Thicker tubes and forged caps help the housing resist flex under hard loads, while a ribbed center section adds stiffness at the carrier. These features matter most on a vehicle that sees rock crawling, steep ascents or heavy torque.
Before fitting, inspect the bearing bores and mounting points for alignment, and clean the housing thoroughly so gear setup starts from a true reference. Plan on new seals, bearings and axle shafts during a rebuild, since they are often replaced alongside the housing. Brackets and gussets should be checked after the first rough trail day to confirm nothing has shifted.
- Inspect bearing bores and bracket alignment
- Clean the housing before gear setup
- Plan new seals and bearings during the rebuild
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 67-2052JKRRH |
| Gear design | Latest generation Dana 44 |
| Axle tube | 3 in. diameter, 5/16 in. wall, DOM steel |
| Bracket steel | 3/8 in. |
| Finish | UV-stable black powdercoat |
| Adjustment | G-lock adjuster nuts |
Vehicle fitment
It fits the 2007–2016 Jeep Wrangler (JK) in 2-door and 4-door models, including the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, and the matching Unlimited versions.
Confirm fit before ordering for any YJ or TJ application, since the fit covers 2007–2016 JK models.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Setting backlash and carrier bearing preload is a gear-setup task, so have the housing set up by someone experienced with Dana 44 gears. The G-lock adjusters are the adjustment points described by the maker.
What’s included
The housing as described, with forged bearing caps, brackets and axle tubes.
Not included: Gears, axle shafts and other differential parts are not included.
