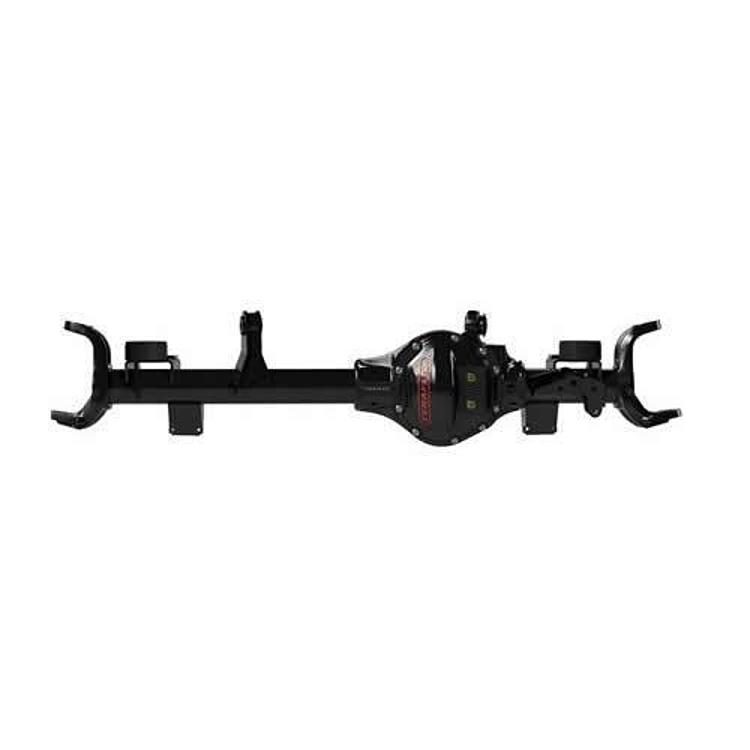

TeraFlex Tera44 Rubicon Replacement Front Axle Housing Assembly – 3544054

TeraFlex

Shop Jeep Wrangler JK Axle Housing on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon replacement front axle housing, Tera44, part 3544054
  • Direct bolt-in upgrade with 3.25-inch OD tubes
  • Forged inner knuckles and reinforced front track bar mount
  • Comes in R44 and T44 versions for different setups

Description

Overview

The TeraFlex Tera44 front axle housing assembly, part number 3544054, replaces the front axle of the Jeep JK Wrangler Rubicon. It is a direct bolt-in upgrade for owners who need to replace a bent, broken or damaged front axle housing with a stronger one.

The housing uses a Tera44 center section of ductile cast iron with increased rib gussets, and 3.25-inch outside diameter tubing with a 0.5-inch wall. The tube size is aimed at reducing axle bending and breakage.

Key features

  • Direct bolt-in upgrade for the JK Rubicon front axle
  • Center section with increased rib gussets in ductile cast iron
  • Smooth radius bottom that is designed to glide over rocks and obstacles
  • Bottom oil drain hole for simple fluid changes
  • Integrated upper control arm mount in the factory location
  • Forged inner knuckles to reduce ball joint separation
  • Thick CNC laser-cut axle brackets with integrated lower skid plates
  • Reinforced front track bar mount that ties into the spring pad
  • Pre-installed inner seals and upper control arm bushings
  • Premium UV-protected triple-stage powder coat finish

Replacing a front housing

A bent or damaged front housing can throw off axle alignment, wear tires unevenly and stress the driveline, so replacement is often the right repair after a hard hit. A stronger housing with larger tubing is aimed at owners who run bigger tires or regular rock crawling, where the front axle takes repeated impact. The housing carries the front differential, axle shafts and suspension mounts, so those mounts must line up accurately.

Before buying, confirm the drive configuration, axle type and lift height, since fit depends on these. Plan to check pinion angle and driveline length after the swap, and inspect the front U-joints while the axle is out. Re-check alignment and the track bar setting after installation, and inspect the track bar mount for wear over time.

  • Check pinion angle after the swap
  • Inspect front U-joints while the axle is out
  • Recheck alignment after installation

Specifications

Brand TeraFlex
Part number 3544054
UPC 843885031659
Position Front
Housing type Tera44, 07-up Jeep JK Dana 44
Axle tube 3.25 inch OD, 0.5 inch wall DOM tubing
Brakes Reuse factory
Drive configuration Right-hand drive models
Warranty 1 year, unlimited mileage, No Excuses

Vehicle fitment

It fits the 2007–2015 Jeep Wrangler (JK), including 70th Anniversary, Rubicon, Sahara, Sport, Unlimited and X versions. It is intended for right-hand-drive JK Rubicons with at least 4 inches of lift and a factory Rubicon 44 axle.

Check drive configuration and axle type for two-wheel-drive and left-hand-drive JK models before buying. Wrangler JL and TJ models are not covered by this housing.

Installation notes

The housing comes with pre-installed inner seals and upper control arm bushings, and it reuses your existing outer knuckle assembly and brakes. The Tera44 retains JK ESP, ABS and speedometer sensor capability, so the factory sensors continue to work with the housing.

What’s included

The housing assembly includes the Tera44 center section, 3.25-inch OD tubes, CNC laser-cut axle brackets with lower skid plates, the reinforced track bar mount and forged inner knuckles. Pre-installed inner seals and upper control arm bushings are included.

Not included: the outer knuckle assembly and brakes, which are transferred from the existing axle.

SKU: TER3544054 Category:

Specification

Shipping weight 196.00 lbs
Package dimensions 60.50 × 23.00 × 20.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201570th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the 3544054 a direct bolt-in replacement?

Yes. It is a direct bolt-in upgrade for the JK Rubicon front axle, with the factory upper control arm mount and reusable brakes.

What is the difference between the R44 and T44 versions?

The R44 directly replaces the factory JK Rubicon Dana 44 and reuses the factory locker and shafts. The T44 is an upgrade that does not reuse them. Confirm which version matches your setup before ordering.

Does this housing fit a left-hand-drive JK?

The housing is for right-hand-drive JK Rubicons with at least 4 inches of lift. Confirm the drive configuration before ordering.

Do I need to check the front driveline after a housing swap?

Yes. Check pinion angle and driveline length once the housing is in place, because a change in axle position can alter driveline angles. Inspect the front U-joints while the driveline is apart, and replace any with play or wear before the first trail run.
