Trail Gear Axle Housing 3-Link – 140274-1-KIT

Trail Gear

Shop Toyota Pickup Axle Housing on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front 3-link axle housing with offset axle tubes for added ground clearance
  • Knuckle balls forged from 1035 steel
  • 5/16 in. thick DOM axle tubes, 3 in. outer diameter
  • Fits 1979–1995 Toyota Pickup and 1984–1995 4Runner

Description

Overview

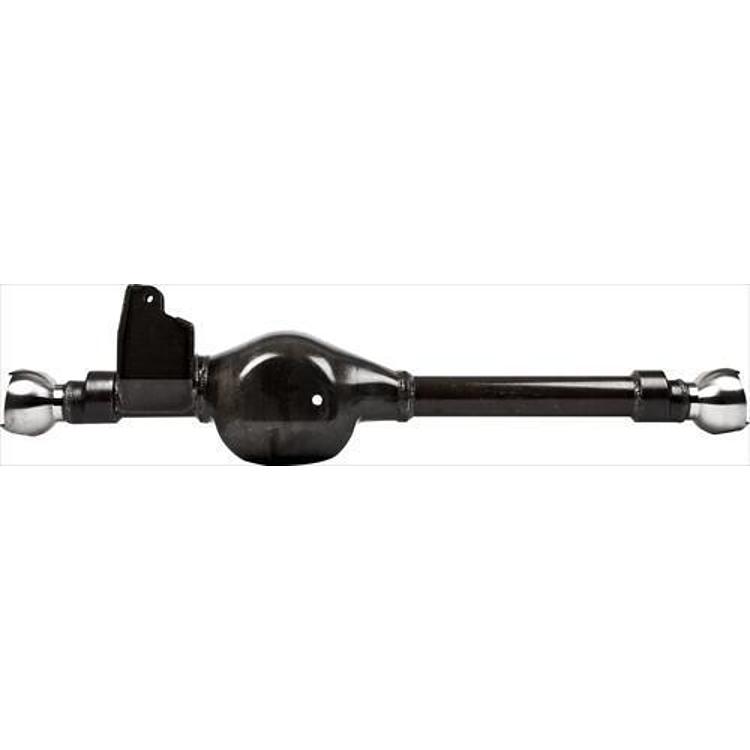

The Trail Gear 140274-1-KIT is a 3-link front axle housing for Toyota applications. It fits the 1979–1995 Toyota Pickup and the 1984–1995 Toyota 4Runner.

The axle tubes sit above the housing centerline, so the inner axles ride near the bottom of the tubes instead of the center. This raises the housing 3/8 in. of ground clearance under the tubes. The center section is 1/4 in. plate steel shaped to give at least 3/4 in. of additional clearance under the differential, and the differential mounting surface is 1/2 in. plate steel. Overall width is 59 in. from WMS to WMS, wheel mounting surface to wheel mounting surface. Knuckle balls are forged from 1035 steel. Each axle tube is 5/16 in. thick DOM steel and engages 5/8 in. further into the center section, with a 360° gusset welded around the tubes inside the housing.

Key features

  • Offset axle tubes lower the inner axles for 3/8 in. more clearance under the tubes
  • Knuckle balls forged from 1035 steel
  • 5/16 in. thick DOM tubes that engage 5/8 in. further into the center section
  • 360° gusset welded around the tubes on the inside of the housing
  • 1/4 in. plate steel center section with at least 3/4 in. of added clearance under the differential
  • 1/2 in. plate steel differential mounting surface

Checking clearance and geometry

Changing the axle tube position on a 3-link housing affects how the axle sits under the vehicle, so check the wheel and tire clearance through the full suspension travel. The offset tubes help clear obstacles, but the brake lines, steering linkage and fuel or exhaust components should be checked for clearance as well.

A housing change also changes the driveline angles. After installation, check the pinion angle and the U-joint operating angles, and inspect the driveshaft for vibration at highway speed. Bushings and mounts on the links should be inspected for wear before the install and replaced if worn.

  • Check brake line length after the axle moves
  • Inspect bump stops and shock mounts for clearance
  • Re-torque link and axle bolts after the first few drives

Specifications

Brand Trail Gear
Part number 140274-1-KIT
UPC 70000621685
Front or rear Front
Housing type Toyota
Overall width 59 in. from WMS to WMS
Axle tube 5/16 in. thick, 3 in. outer diameter, 1020 DOM steel
Knuckle balls Forged 1035 steel
Center section 1/4 in. plate steel shell
Differential mounting surface 1/2 in. plate steel
Ground clearance gain 3/8 in. under the axle tubes

Vehicle fitment

It fits the 1979–1995 Toyota Pickup (Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo) and the 1984–1995 Toyota 4Runner (DLX, SR5).

Toyota models outside those years, including the Tacoma, are not covered.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

The package is the front 3-link axle housing.

SKU: TGI140274-1-KIT Category:

Specification

Shipping weight 96.00 lbs
Package dimensions 57.00 × 15.50 × 10.50 in
brands

Fitment

VehicleYearsTrims
Toyota 4Runner1984–1995DLX, SR5
Toyota Pickup1979–1995Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Trail Gear 140274-1-KIT fit a 1984 to 1995 Toyota 4Runner?

Yes. It fits the 1984–1995 Toyota 4Runner in DLX and SR5 trim. It also fits the 1979–1995 Toyota Pickup, and it is a front housing.

How much ground clearance does the offset housing add?

It adds 3/8 in. of ground clearance under the tubes. The tubes sit above the housing centerline, so the inner axles ride near the bottom of the tubes.

What steel is used in the knuckle balls and axle tubes?

The knuckle balls are forged from 1035 steel. The axle tubes are 5/16 in. thick 1020 DOM steel with a 3 in. outer diameter.

Does a housing like this need a new driveshaft?

It may. Changing the housing position can alter driveline angles, so check the driveshaft and pinion angle after installation. Inspect the U-joints for wear as well, and correct the angle if vibration appears.
