Crown Automotive Dana 35 Pinion Yoke – 83503318

Crown Automotive

$47.11In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 8:50 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana 35 pinion yoke, Crown Automotive part number 83503318
  • Strap and bolt design for 1310 series outside snap ring U-joints
  • Fitment shown only as direct fit, with no vehicle years listed

Description

Overview

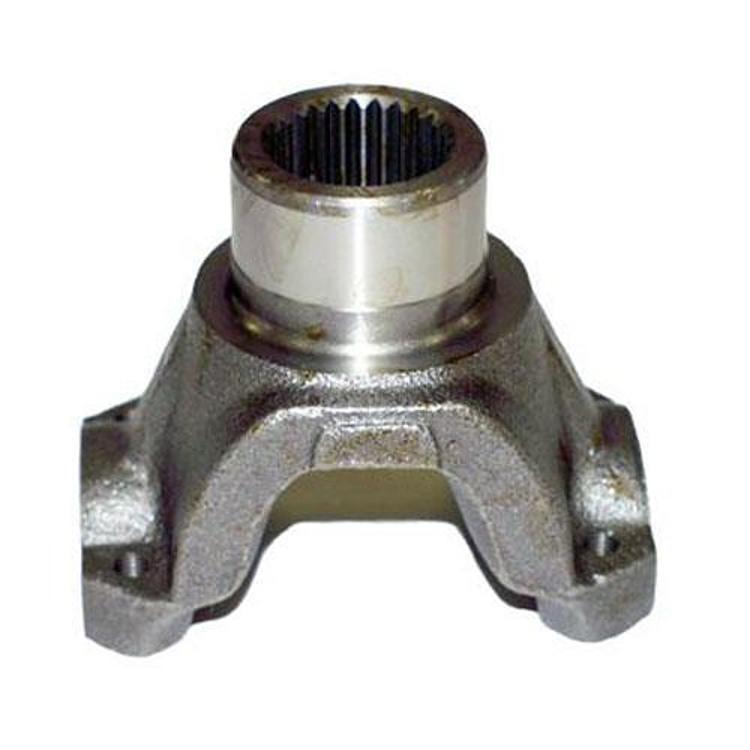

The Crown Automotive 83503318 is a Dana 35 pinion yoke with a strap and bolt design, made for use with a 1310 series outside snap ring U-joint. The pinion yoke connects the driveshaft to the pinion gear inside the axle, so it is the part to check when replacing a worn or damaged yoke on a Dana 35.

No vehicle years, models or chassis codes are named for this yoke. Crown marks it as a direct fit, so confirm the axle and vehicle details before using it.

Key features

  • Dana 35 pinion yoke
  • Strap and bolt design
  • For use with 1310 series outside snap ring U-joints
  • Marked as a direct fit

Choosing a replacement yoke

A pinion yoke carries the driveshaft torque into the pinion gear, so a worn yoke can make clunks, vibration or a loose feel under load. The yoke’s splines and U-joint saddle take most of the wear, so inspect those areas on the old part before deciding whether to replace the yoke alone or the whole driveline joint.

Because this yoke suits a strap and bolt design, the U-joint, strap hardware and pinion nut usually come off with it. Replacing the pinion seal at the same time is common, since the yoke has to come off to reach it. Confirm the pinion nut tightness and preload once the yoke is installed, and recheck the bolts after the first few drives.

  • Splines and U-joint saddle wear
  • Pinion seal condition
  • Matching U-joint series before ordering

Specifications

Brand Crown Automotive
Part number 83503318
UPC 848399025361
Axle application Dana 35
Design Strap and bolt
U-joint type 1310 series outside snap ring

Vehicle fitment

No vehicles are named, and fitment is shown only as direct fit. Dana 35 identifies an axle rather than a vehicle, so the axle name alone does not confirm which vehicle the yoke fits.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

The pinion yoke is the item supplied.

Not included: A pinion nut, seal, U-joint or driveshaft is not part of the yoke. Plan to source those parts separately if the job needs them.

SKU: CRO83503318 Category:

Specification

Shipping weight 2.00 lbs
Package dimensions 4.00 × 4.00 × 4.00 in
brands

Questions & Answers

What is the Crown Automotive 83503318?

The Crown Automotive 83503318 is a Dana 35 pinion yoke with a strap and bolt design. It is made for use with a 1310 series outside snap ring U-joint. Part number 83503318 and UPC 848399025361 are shown with the product.

Does the 83503318 yoke fit a specific vehicle?

Fitment is by axle rather than vehicle. It is a direct fit for the Dana 35 axle, so confirm your vehicle's year, model and trim before ordering.

Is a U-joint or pinion nut included with the 83503318?

No. A U-joint, pinion nut, seal or driveshaft is not part of this yoke. Check the package contents against your installation before starting.

Should I replace the U-joint when I replace the pinion yoke?

Often yes. Inspect the U-joint bearing caps for play and rust, since a worn joint can damage a new yoke. Replacing it while the driveshaft is off is usually simpler than returning later.
