Overview

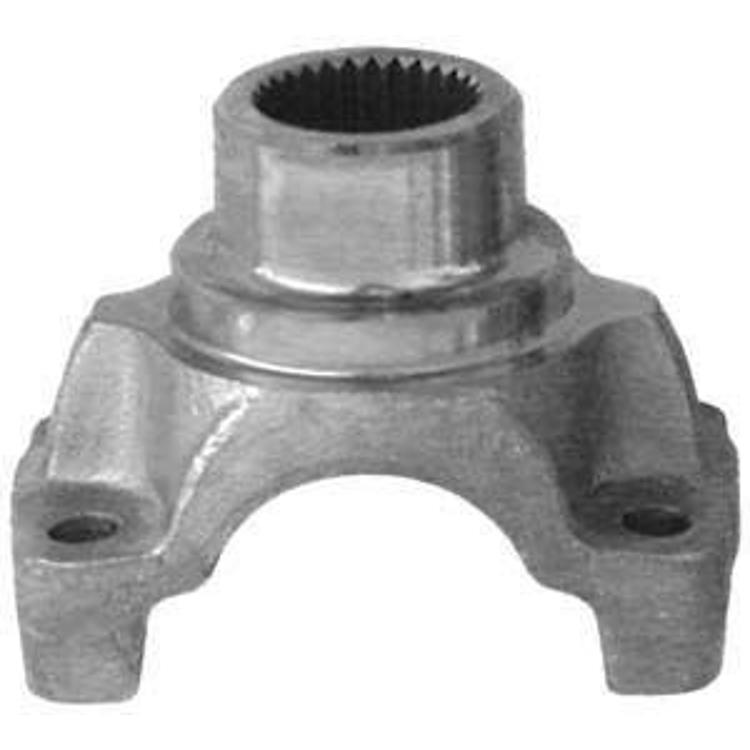

The Currie 60-1350 is a pinion yoke for Dana 60 axles that lets you run the 1350 series U-joint. It also fits Dana 70 and Dana 61 axles, in either the front or rear axle location. The yoke attaches to the pinion gear inside the differential and carries the driveshaft U-joint, so the yoke size sets which U-joint can be used.
Key features
- Built to run the 1350 series U-joint on Dana 60 axles
- Fits Dana 60, Dana 70 and Dana 61 axle types
- Covers both front and rear axle locations
- Manufacturer number CUR60-1350
Choosing a U-joint size
The yoke size sets which U-joint can be used, so the 1350 series joint and the yoke have to be matched as a pair. Different joint series use different cup diameters, and mixing them causes binding or joint failure under load. Driveshaft length and pinion angle also affect joint life, so check both when the driveline is changed.
Off-road loads put more stress on the joint than daily driving does. Grease the joint at the interval your driving calls for, and look for play, dry seals or rust on the cups at each service. A worn joint can make a clunk or vibration that often starts when the throttle is changed.
- Match the U-joint series to the yoke
- Measure cup diameter before buying a joint
- Check driveshaft angle when the vehicle is lifted
- Inspect joint cups and seals at each service
Specifications
| Brand | Currie |
|---|---|
| Part number | 60-1350 |
| Manufacturer number | CUR60-1350 |
| UPC | 70000201131 |
| Axle location | Front or rear |
| Axle types | Dana 60, Dana 70, Dana 61 |
| U-joint series | 1350 series |
Vehicle fitment
This yoke is matched by axle type. Identify your axle as Dana 60, Dana 70 or Dana 61 before ordering.
Axles other than the Dana 60, Dana 70 and Dana 61 types named here are not covered. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The pinion yoke only. No other hardware is described.
Not included: a 1350 series U-joint, which is needed to use this yoke.
