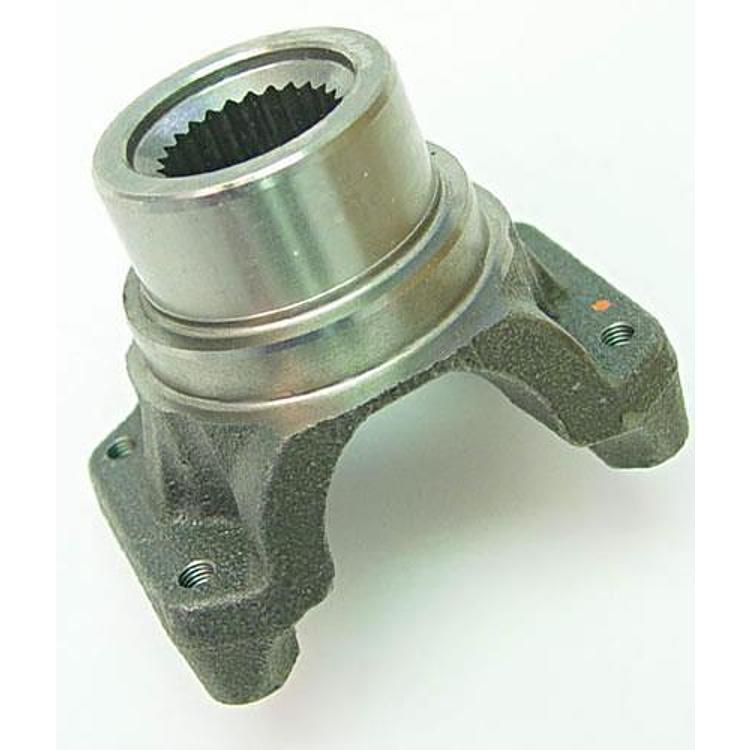

Crown Automotive Dana Model 20 Pinion Yoke – 83502058

Crown Automotive

$68.90In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 3:50 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pinion yoke for AMC Model 20 axles (also known as Dana Model 20)
  • Strap and bolt style
  • Rear driveshaft at transmission position
  • Fits 1976–1986 Jeep CJ5, CJ7 and J10 and 1981–1985 Scrambler
  • Crown Automotive part number 83502058, UPC 848399024470

Description

Overview

The 83502058 is a pinion yoke for AMC Model 20 axles, also known as the Dana Model 20. It uses a strap and bolt style and fits the rear driveshaft at the transmission position. It fits the 1976–1986 Jeep CJ5, CJ7 and J10 and the 1981–1985 Jeep Scrambler.

The strap and bolt style is different from a U-bolt yoke, so check the yoke design and the driveshaft position on your vehicle before ordering.

Key features

  • Built for the AMC Model 20 axle
  • Strap and bolt style
  • Rear driveshaft at the transmission position
  • Direct fit for the CJ5, CJ7, J10 and Scrambler

Checking the yoke before install

A strap and bolt yoke clamps to the pinion differently than a U-bolt design, so the yoke face, pinion threads and driveshaft flange should be checked before installation. Confirm the rear driveshaft runs to the transmission position on your vehicle, because a yoke that sits at a different point will not line up with the driveshaft as intended.

Use a new pinion nut when the yoke is replaced and tighten it to the torque specified in your service information. Check the pinion seal and bearing preload at the same time, since a worn bearing can cause vibration that is often blamed on the yoke. Replacing the pinion seal while the driveshaft is off is a practical habit.

  • Check the yoke face for grooves before fitting
  • Mark the driveshaft and yoke alignment before removal

Specifications

Brand Crown Automotive
Part number 83502058
UPC 848399024470
Axle AMC Model 20 (also known as Dana Model 20)
Design Strap and bolt
Position Rear driveshaft at transmission
Fitment type Direct fit

Vehicle fitment

This pinion yoke fits the following vehicles:

  • 1976–1983 Jeep CJ5
  • 1976–1986 Jeep CJ7
  • 1976–1986 Jeep J10
  • 1981–1985 Jeep Scrambler

The 1984–2001 Cherokee (XJ) and 1987–1995 Wrangler (YJ) are not on this list. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One pinion yoke, part number 83502058. No other hardware is named.

SKU: CRO83502058 Category:

Specification

Shipping weight 4.00 lbs
Package dimensions 6.00 × 5.00 × 5.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51976–1983Base, Golden Eagle, Laredo, Limited, Renegade
Jeep CJ71976–1986Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade
Jeep J101976–1986Base
Jeep Scrambler1981–1985Base, Laredo, Renegade, SL, SR

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Crown 83502058 yoke fit a 1976 Jeep CJ5?

Yes. It fits the 1976–1983 Jeep CJ5. The yoke is for the AMC Model 20 with the rear driveshaft at the transmission position, so confirm that position on your vehicle first.

What axle is the 83502058 pinion yoke for?

It is for the AMC Model 20, also known as the Dana Model 20. The yoke uses a strap and bolt style rather than U-bolts.

Is this yoke for a Jeep Wrangler?

No. It fits the CJ5, CJ7, J10 and Scrambler, with model years from 1976 to 1986 and 1981 to 1985 for the Scrambler. Wrangler models are not covered.

Should the pinion seal be replaced with the yoke?

Usually, yes. A pinion seal that has been run on a worn yoke can leak soon after the new yoke goes on, and the seal costs little compared with a second round of work. Inspect the seal bore for damage and set the new seal with the correct tool.
