Overview

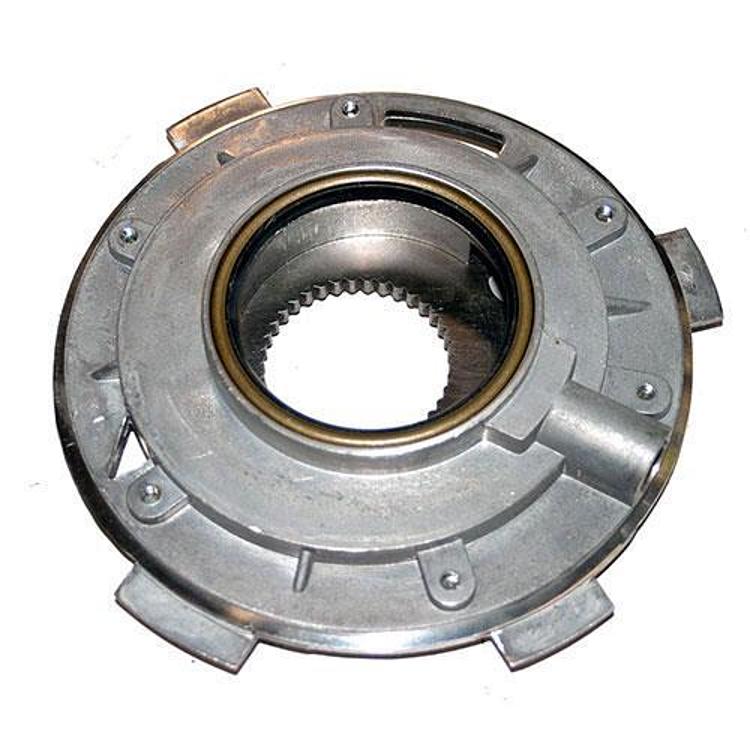

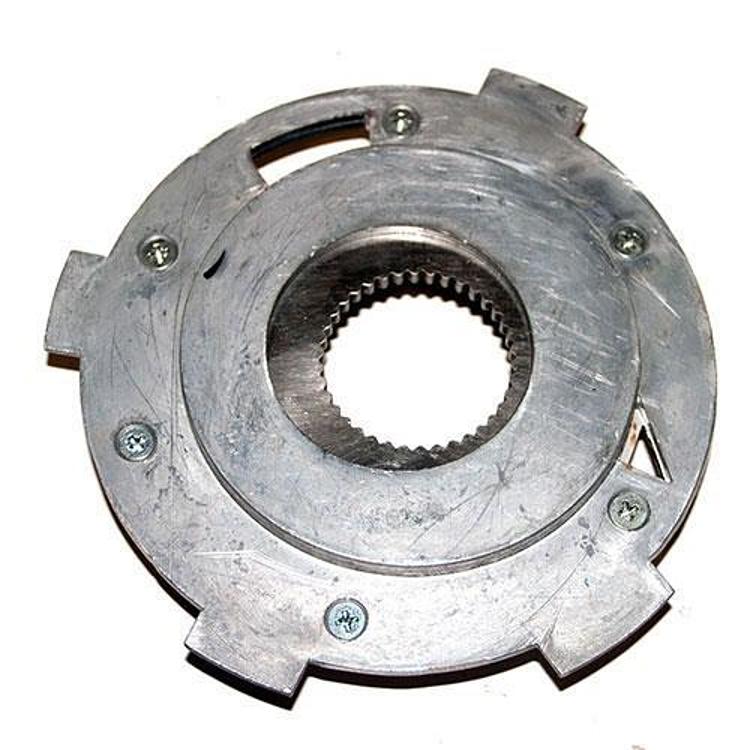

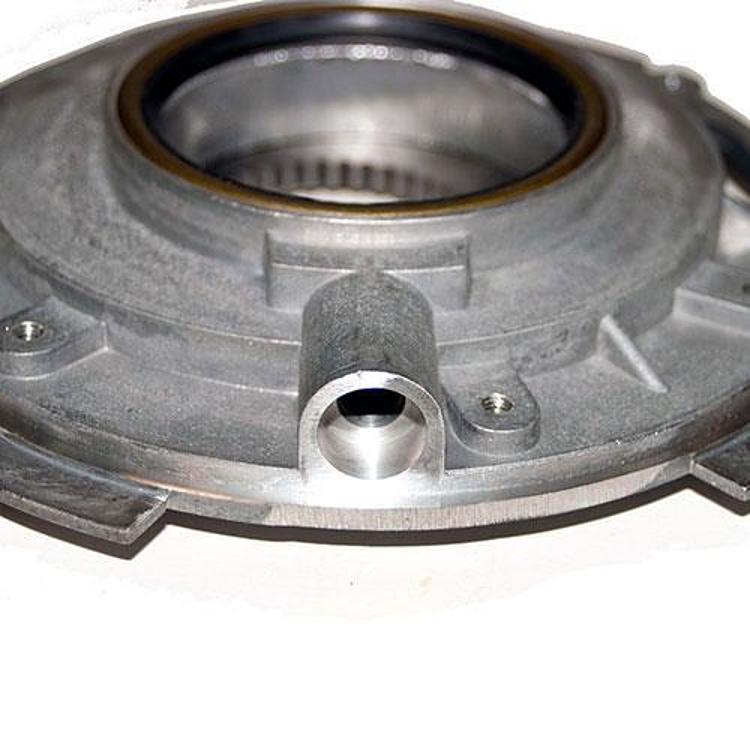

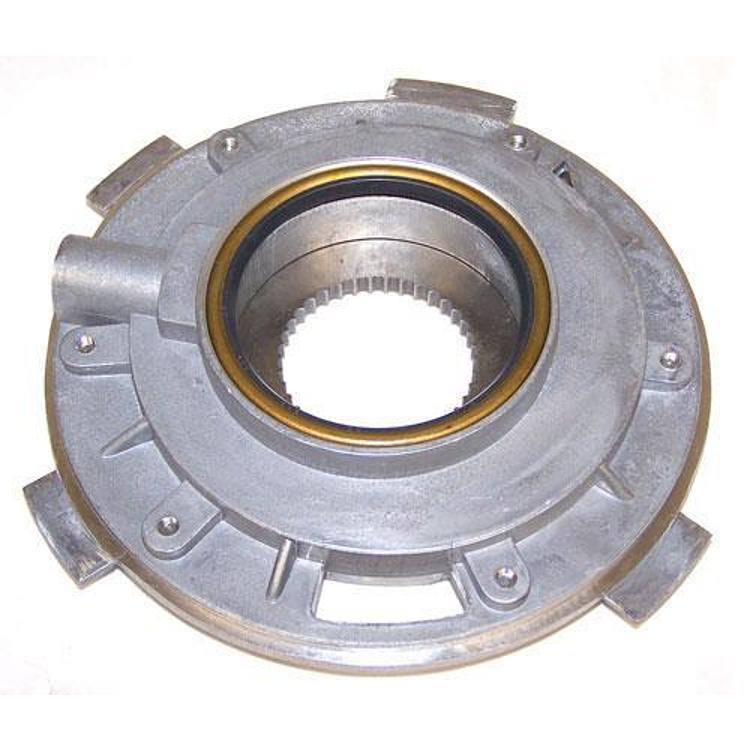

The Crown Automotive NP231/NP242 Oil Pump Housing, part number 4338936, is an oil pump housing for NP231 and NP242 transfer cases. It has a 5-3/8 in outside diameter and comes with the pump housing seal.
This pump housing is part of Crown Automotive’s transfer case lineup. Confirm your case type before ordering.
Key features
- Pump housing for NP231 and NP242 transfer cases
- Outside diameter of 5-3/8 in
- Pump assembly includes the pump housing seal
- Crown Automotive part number 4338936
Pump housing and oil flow
The oil pump in a transfer case circulates fluid to the gears and bearings, so a faulty pump housing can starve parts of lubrication. Signs of trouble include whining under load, rising case temperatures and fluid that looks dark or contains metal. Because the pump sits inside the case, its condition is easiest to check when the case is open.
When the pump housing is replaced, inspect the pump gears, the drive gear and the surrounding bearing surfaces for wear. Reuse the existing fluid only if it is clean and at the correct level. Fill the case with the fluid your transfer case calls for, and check the fill level and any seepage after the first few drives. Keep the pump housing seal and mating surfaces clean before reassembly.
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 4338936 |
| UPC | 848399003475 |
| Part type | Oil pump housing |
| Transfer cases | NP231 and NP242 |
| Outside diameter | 5-3/8 in |
| Included seal | Pump housing seal |
Vehicle fitment
It is made for NP231 and NP242 transfer cases. Confirm fit for your vehicle’s year, model and trim before ordering, and verify the case type first.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Replacing a pump housing means draining the transfer case fluid and opening the case at the pump location. The pump housing seal comes with the assembly, so use that seal when reassembling. Work with the transfer case cool and the vehicle supported on jack stands.
What’s included
The pump assembly includes a pump housing seal. Check gasket and fluid needs against your installation before starting.
