Overview

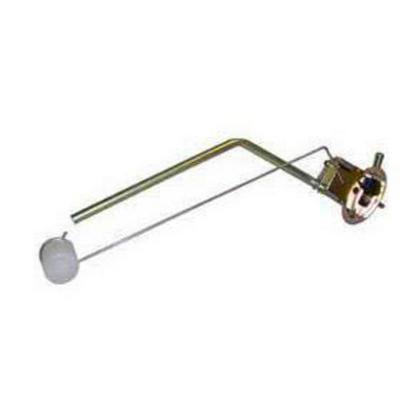

The Crown Automotive J5357677 is a fuel tank sending unit for 1974–1979 Jeep J10 and J20 trucks and the 1974–1979 Jeep Wagoneer (SJ).
A sending unit reads the fuel level inside the tank and passes that signal to the fuel gauge on the dash, so it controls the gauge reading. It is part number J5357677 and fits Base trim for the J10 and J20, plus Base, Custom and Limited trims for the Wagoneer.
Key features
- Fuel tank sending unit for the fuel level reading
- Fits 1974–1979 J10, J20 and Wagoneer SJ
- Part number J5357677 under the Crown Automotive brand
- Direct fit per the manufacturer fitment list
Fuel level sender checks
The sending unit works with a float arm that rises and falls with the fuel level, and that arm moves a variable resistance that the gauge reads. A bent arm, a sticky float or a weak ground can make the gauge read high, low or erratically, even when the tank is full. Before blaming the new unit, confirm the gauge ground and the wiring at the connector are clean and secure.
Older tanks can also carry sediment or varnish that binds the float. When the sender is out, inspect the tank opening and the seal surface, and remove debris that could block the float travel. Fuel system work calls for careful handling of the seal and a clean workspace so the new unit sits flat and seals properly.
- Check the float arm moves freely over its full travel
- Clean the ground connection at the sender and body
- Inspect the sealing surface for old residue
- Compare the sender with the old unit before fitting
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J5357677 |
| Type | Fuel tank sending unit |
| Trims listed, J10 and J20 | Base |
| Trims listed, Wagoneer SJ | Base, Custom, Limited |
Vehicle fitment
Fits 1974–1979 Jeep J10 (Base); 1974–1979 Jeep J20 (Base); and 1974–1979 Jeep Wagoneer (SJ) (Base, Custom, Limited).
Model years outside 1974–1979 and other Jeep models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Fuel system work is a fire risk, so disconnect the battery and keep sparks and open flame away from the tank while the sending unit is removed.
What’s included
The fuel tank sending unit. Check the contents against your installation before starting, including whether a gasket or mounting hardware is needed.
