Overview

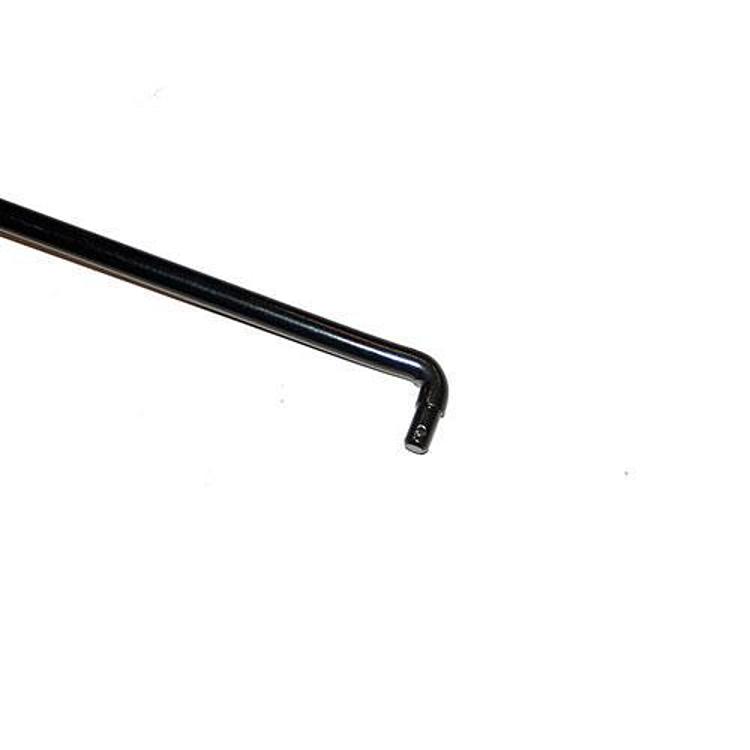

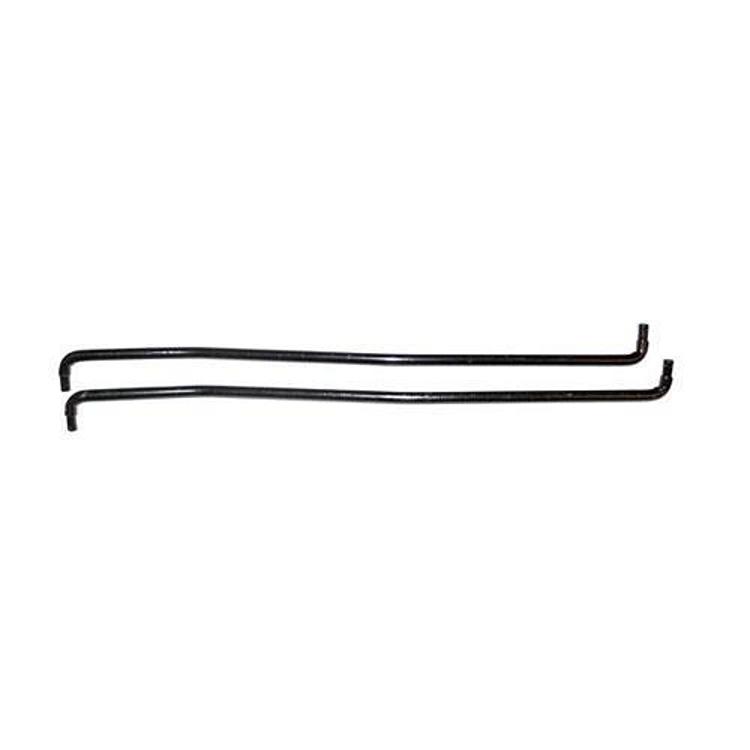

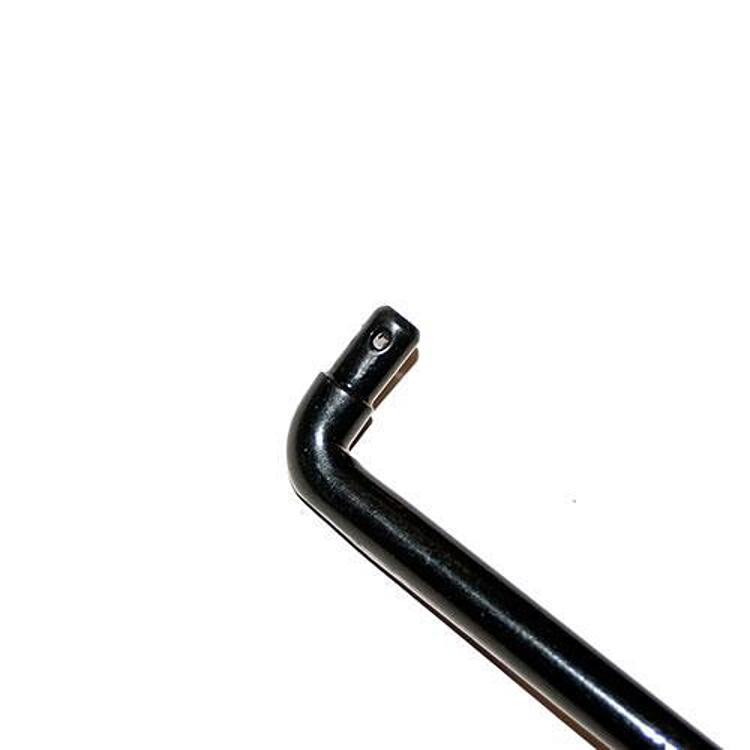

The Crown Automotive Clutch Rod, part number J5364620, links the clutch pedal to the bellcrank. It is intended for use with a 0-1 inch body lift, and the boot is a separate purchase.
Key features
- Connects the pedal to the bellcrank
- Noted for use with a 0-1 inch body lift
Body lift and linkage geometry
A body lift raises the body off the frame, which moves the mounting points for the clutch pedal linkage relative to the transmission. That shift changes the angle and length the rod needs to run between the pedal and bellcrank. A rod set up for stock height can bind, sit loose or put side load on the bellcrank when the lift is added.
Before fitting, measure the existing pedal and bellcrank positions and compare them with the new geometry. Check that the rod moves freely through its full travel and that the bellcrank pivots without binding. Inspect the rod ends and bushings for wear each time the linkage is serviced, since worn ends let the pedal feel vague. Recheck the adjustment after the first few drives, since the linkage can settle.
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J5364620 |
| UPC | 848399065206 |
| Connects | Clutch pedal to bellcrank |
| Body lift noted | 0-1 inch |
| Boot | Listed separately |
Vehicle fitment
No years, models or chassis codes are given for this rod, and the body lift note alone does not confirm a vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A body lift changes the bellcrank position, so check the rod against the lift height before fitting.
What’s included
Not included: the rod boot, which is sold as a separate part.
