Overview

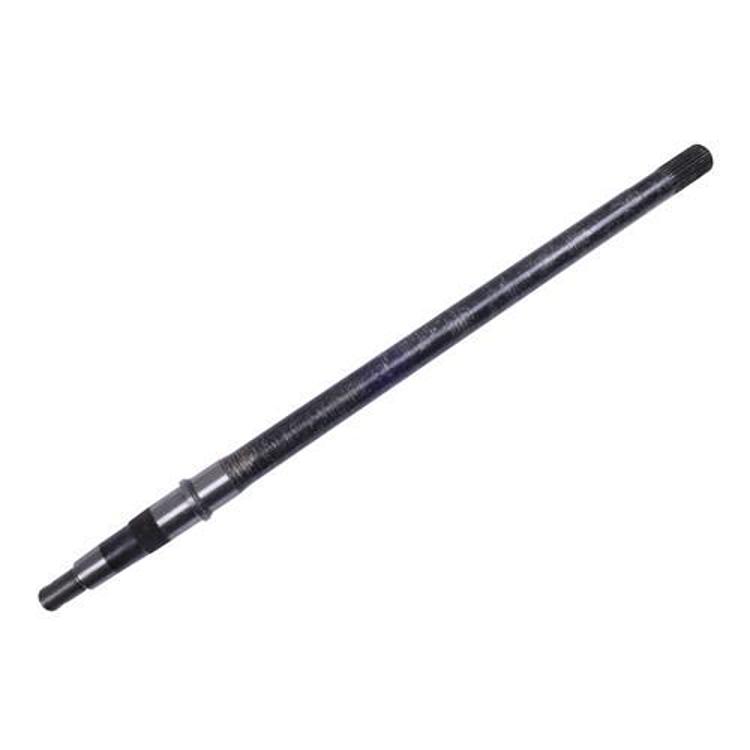

The Crown Automotive J8127071 is an AMC Model 20 rear passenger side axle shaft, 29.25 inches long overall with 29 splines, for the 1976–1983 Jeep CJ5 and 1976–1981 CJ7 without Quadratrac. It is the longer partner of the J8127070 and sits in the rear right position on the Narrow-Trac AMC Model 20 axle.
It has 29 splines and is a direct fit for the two CJ models above. Separate CJ rear shaft numbers exist for Jeeps with and without Quadratrac, a full-time four-wheel-drive system, and this shaft is for those without it. At 29.25 inches it is the longer passenger side shaft. The Scrambler, YJ and CJ7s after 1981 are not covered. If you are unsure whether your CJ had Quadratrac, check before buying. When both rear shafts are replaced, pair this passenger side shaft with the driver side shaft, J8127070, and confirm the transfer case setup.
Key features
- Passenger side rear axle shaft
- AMC Model 20 axle
- 29.25 inches overall length
- 29 splines
- For vehicles without Quadratrac
- Classed by Crown Automotive as a direct fit
Choosing and fitting a rear shaft
A rear axle shaft on an AMC Model 20 has a flange at the hub end and a splined end inside the axle housing, and it is held by a bearing at the outer end. Before pulling the old one, drain the axle fluid, note how the flange and bearing retainer sit, and mark the shaft to its side so it goes back in the right position. A longer shaft on the passenger side works only in that position, so keep the two sides separate during the job.
Clean the axle housing opening and check the axle seal before inserting the shaft, since debris can damage the seal lip. Use new gaskets and fasteners where the old ones are worn. After the shaft is in, fill the axle to the level the vehicle requires and check for leaks on a short test drive. Recheck the bolts once the Jeep has been driven a few miles.
- Drain the axle fluid before removing the shaft
- Mark each shaft for its side
- Replace worn gaskets and retainer bolts
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J8127071 |
| UPC | 848399069013 |
| Axle manufacturer | AMC |
| Shaft location | Passenger Side |
| Axle position | Rear |
| Axle type | AMC 20 |
| Position | Rear Right |
| Spline count | 29 Splines |
| Overall length | 29.25 inches |
| Quadratrac | Without Quadratrac |
Vehicle fitment
The J8127071 fits two CJ models.
- 1976–1983 Jeep CJ5 (Base, Golden Eagle, Laredo, Limited, Renegade)
- 1976–1981 Jeep CJ7 (Base, Golden Eagle, Golden Hawk, Laredo, Renegade)
Coverage is the 1976–1983 CJ5 and 1976–1981 CJ7 without Quadratrac. The Scrambler, YJ and CJ7s after 1981 are not in the list. Confirm your vehicle’s year, model and trim before ordering.
