Alloy USA AMC Model 20 Rear Axle Shaft – 21130

Alloy USA

Shop Jeep CJ5 Replacement Axle Shafts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • O.E. style two-piece AMC Model 20 rear axle shaft, 29 spline
  • Fits 76-83 Jeep CJ Narrow Trac, plus 1976-1983 CJ5, 1976-1981 CJ7 and 1981 Scrambler
  • Does not include bearings, seals or studs

Description

Overview

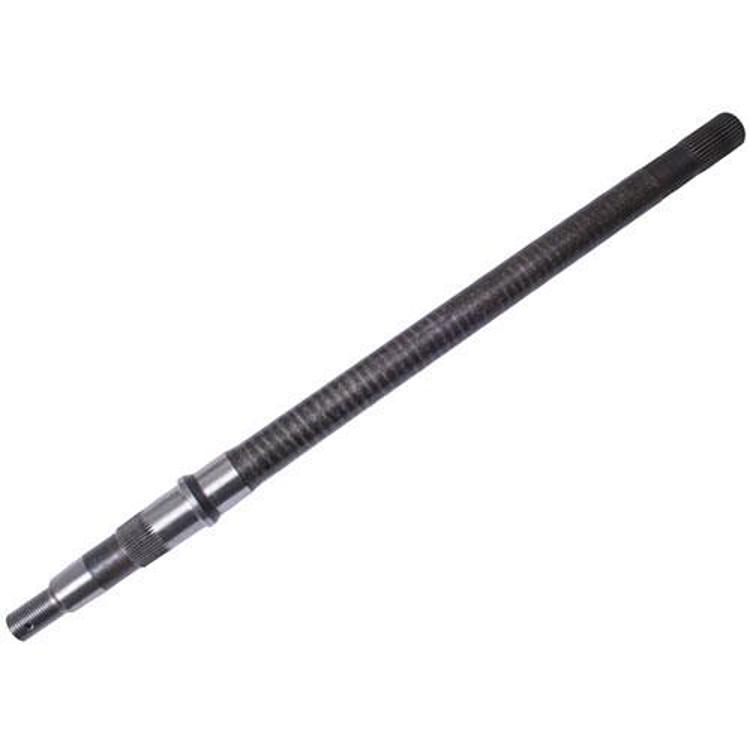

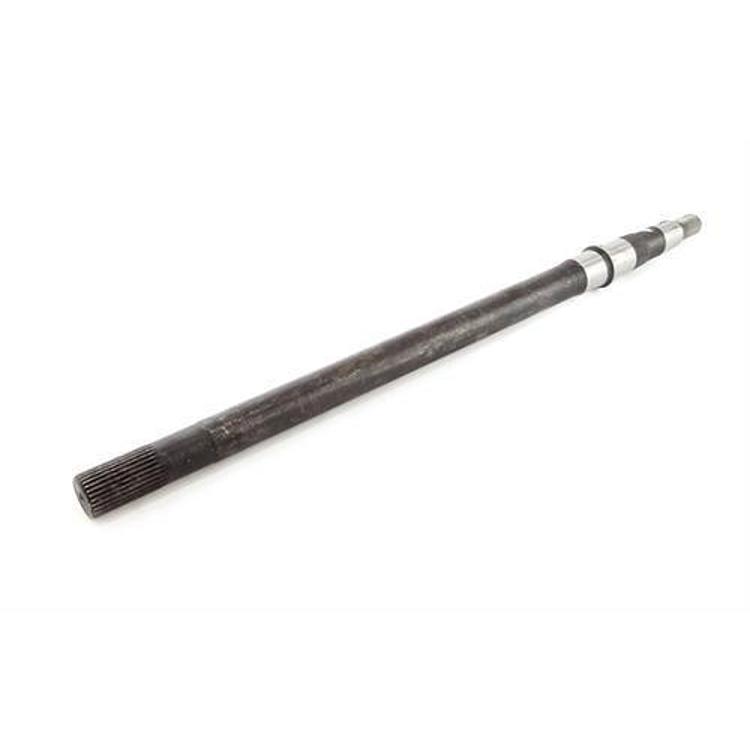

The Alloy USA 21130 is an O.E. style two-piece AMC Model 20 rear axle shaft with 29 splines. It fits 76-83 Jeep CJ Narrow Trac models, and it also fits the CJ5, CJ7 and Scrambler.

Its shafts are made from 1541H or 4140 steel, depending on the application, and each one is heat treated and induction hardened. The 21130 has 29 splines, so the differential or carrier must have the same spline count. Its O.E. style two-piece design keeps the original layout of the AMC Model 20 axle shaft rather than changing it.

Key features

  • O.E. style two-piece shaft for the AMC Model 20 rear axle
  • 29 spline
  • Fits 76-83 Jeep CJ Narrow Trac
  • Alloy USA says its shafts are heat treated and induction hardened
  • Bearings, seals and studs are not included
  • Axle: AMC 20 rear
  • Axle shaft location: Driver side per the feature list; the attributes say passenger side

Before the swap

A two-piece axle shaft on an AMC Model 20 is built as a separate inner and outer piece, so the joint between them is part of the wear picture. Under power, the splines carry torque in both directions, and any looseness at the joint or on the differential side tends to show up as clunking when the throttle is applied or released. Off-road, the axle is loaded through rough ground and articulation, which makes a sound joint and clean splines more important than they are on pavement.

Before choosing a replacement, confirm the spline count on the old shaft and the gear set, and pay attention to which side the shaft fits. Bearings, seals and studs are often replaced at the same time, since they wear with the shaft and are not supplied with it. A clean bearing bore and a fresh seal help keep gear oil out of the brake area.

Specifications

The 21130 is a o.E. style two-piece replacement axle shaft for the AMC 20 rear axle, with 29 splines. Every figure in the table below is the manufacturer value for the 21130.

Brand Alloy USA
Part number 21130
UPC 70000531004
Part type O.E. style two-piece replacement axle shaft
Axle AMC 20 rear
Axle shaft location Driver side per the feature list; the attributes say passenger side
Spline 29 spline
Manufacturer part number ALY21130
Application stated 76-83 Jeep CJ Narrow Trac

Vehicle fitment

The manufacturer fitment list for the 21130 names: 1976–1983 Jeep CJ5; 1976–1981 Jeep CJ7; 1981 Jeep Scrambler.

It is applied to 76-83 Jeep CJ Narrow Trac vehicles.

Measure the shaft you are replacing and compare it with the 21130 listing for spline count, length and side.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

None of the bearings, seals or studs are included with the 21130, so check the condition of the old ones during the swap. Its side information conflicts between the feature list and the attributes, so confirm the side needed before ordering.

What’s included

One axle shaft.

Not included: Bearings, Seals, Studs.

SKU: ALY21130 Category:

Specification

Shipping weight 20.00 lbs
Package dimensions 37.50 × 7.00 × 7.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51976–1983Base, Golden Eagle, Laredo, Limited, Renegade
Jeep CJ71976–1981Base, Golden Eagle, Golden Hawk, Laredo, Renegade
Jeep Scrambler1981Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which Jeeps does the Alloy USA 21130 fit?

It fits the 1976-1983 Jeep CJ5, the 1976-1981 CJ7 and the 1981 Scrambler, along with 76-83 Jeep CJ Narrow Trac models.

How many splines is the Alloy USA 21130?

The 21130 has 29 splines. It is an O.E. style two-piece replacement shaft for the AMC Model 20 rear axle. Confirm the side against your axle before ordering.

Is the Alloy USA 21130 a driver or passenger side shaft?

Confirm which side you need before ordering, because the shaft side must match the axle you are replacing. Measure the old shaft and check which side it came from before buying the 21130.

How often should the axle joint be checked?

Check the joint and splines whenever the axle is off the vehicle, and after any hard off-road use that leaves the drivetrain with a new noise. Look for play, grease leaks or cracks, and replace the part if movement can be felt at the joint.
