Overview

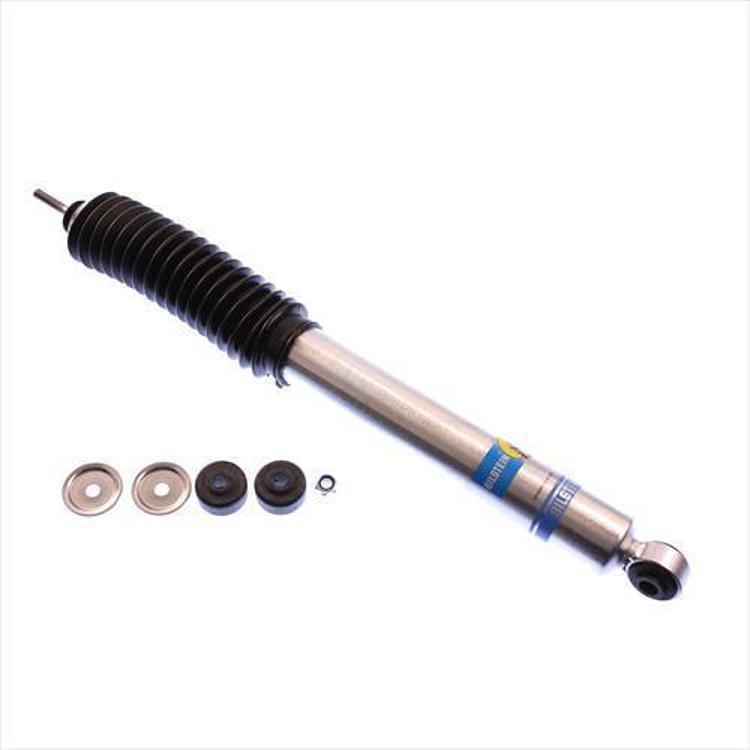

The Bilstein 24-187183 is a 5100 Series shock absorber for Chevrolet Silverado and GMC Sierra trucks in the 1500 HD, 2500 and 3500 lines, with manufacturer fitment from 1999 through 2010. It uses a 14.1mm eye lower mount and a stem upper mount, with a 14mm shaft and a 46mm ID smooth, non-coilover body.
This monotube shock has high gas pressure and a 46mm ID smooth, non-coilover body. It measures 13.52 in collapsed and 21.46 in extended, giving 7.94 in of travel. The piston and valving improve control with large diameter tires.
Key features
- Monotube construction with high gas pressure
- Self-adjusting deflecting disc valving
- High-flow piston intended to reduce harshness
- Independent rebound and compression tuning
- Larger working piston area for exact damping
- Designed for specific manufacturer lift kits that use the factory O.E.M. mounting configuration
Heavy-duty truck suspension basics
Trucks that carry heavy loads or run larger tires put more demand on the shock absorbers. The shock works hardest when the truck is loaded, towing or crossing washboard surfaces, and control is what keeps the tires on the ground. A shock that has lost its damping lets the body bounce after each dip, which can make steering feel vague at highway speed.
When choosing a replacement, the lower and upper mount types matter more than almost anything else. Confirm that the eye and stem mounts match the existing unit before buying. Shocks are often replaced in pairs on the same axle, because a new unit beside a worn one will damp unevenly and can pull the truck to one side.
- Check both mounts for cracks or wear
- Inspect the boot for tears if one is fitted
- Look for fluid on the shock body
- Replace shocks in pairs on the same axle
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-187183 |
| UPC | 651860600161 |
| Shock series | 5100 Series |
| Fitment type | Direct fit |
| Collapsed length | 13.52 in |
| Extended length | 21.46 in |
| Travel length | 7.94 in |
| Lower mount | Eye 14.1mm |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Monotube |
| Reservoir | No |
| Gas charge | Gas charged |
| Finish | Zinc plated |
| Boot | Included |
Vehicle fitment
The manufacturer list covers Chevrolet Silverado and GMC Sierra 1500 HD, 2500 and 3500 models from 1999 through 2010, including the 2007 Classic versions, with trims such as Base, LS, LT, WT, SL, SLE and SLT.
Silverado and Sierra models from 2011 onward and the non-HD 1500 models outside the list are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure your existing shock’s lower mount to confirm it is a 14.1mm eye and that its upper mount is a stem, matching this shock, before installing.
What’s included
One Bilstein 5100 Series shock absorber, part 24-187183, with the boot included. Not included: no lift kit or mounting hardware is listed with this shock.
