Bilstein 4600 Series Shock Absorber – 24-025027

Bilstein

Shop Bilstein Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 24-025027 rear 4600 Series monotube shock absorber, gas charged
  • 2 in body diameter, yellow finish, no reservoir
  • Boots included; lift height w/0 in. Lift/Drop
  • No vehicle fitment is listed; check the application before choosing

Description

Overview

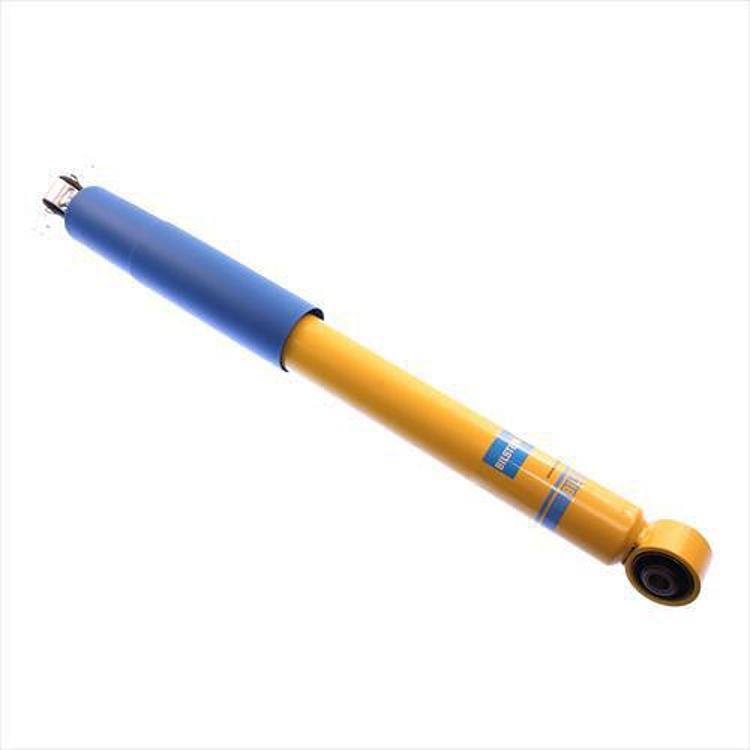

The Bilstein 24-025027 is a rear 4600 Series shock absorber with a monotube, gas-charged body, a 2 in body diameter and a yellow finish. Its specifications list it as a direct-fit rear shock, but no vehicle years, makes, models or chassis codes are named for it, so the vehicles it suits cannot be confirmed from these details.

The monotube is gas-charged, and heat from the oil travels outward through the shock body so it can dissipate. A dividing piston gives the oil room to expand as it warms, which limits foaming and viscosity loss so the shock keeps its damping at higher temperatures. The design uses fewer parts than conventional twin-tube and road-sensing shocks. Check the boots, gas charge and body diameter against the old unit when comparing.

Key features

  • Gas-charged monotube body moves heat out of the oil
  • Dividing piston makes room for oil expansion as it warms
  • Extruded tube held to tight peak-to-valley tolerance
  • Seamless tube construction for strength and heat release
  • Piston head tunable for compression and rebound separately
  • Boots included; no reservoir

Rear shock swap tips

Rear shocks work hardest on rough roads, when they absorb repeated impacts and keep the tires in contact with the ground. Heat builds quickly during long descents or trail runs, and a shock that cannot shed heat loses damping. A gas-charged body helps keep the oil stable so the ride stays predictable on the way back down.

When swapping a rear shock, compare the eye style, the stroke and the mount positions with the old unit before the work starts. Replacing both rear shocks at once keeps the vehicle level and handling even. Old bushings can flatten or crack, so inspect them and replace any that look worn before fitting the new shock.

  • Compare mount positions with the old shock
  • Keep boots clean during fitting
  • Check bump stops for cracks or flattening
  • Recheck bolts after the first few drives

Specifications

Brand Bilstein
Part number 24-025027
UPC 65186045134
Series 4600 Series
Position Rear
Shock type Monotube
Charge Gas charged
Body diameter 2 in
Reservoir No
Finish Yellow
Boots Included
Lift height w/0 in. Lift/Drop
Mounting type Direct Fit

Vehicle fitment

Fitment for part number 24-025027 is not confirmed for any vehicle, so the models it suits must be verified before buying. The only height information is w/0 in. Lift/Drop. Compare the shock’s length and mounting points with the shock it will replace.

Confirm fit for your vehicle’s year, model and trim before ordering, and match the mounting points to your old shock.

What’s included

The package is a rear shock absorber with boots. Check the package contents against your installation before starting.

Not included: mounting hardware and any brackets, to be checked against your installation

SKU: BIL24-025027 Category:

Specification

Shipping weight 4.92 lbs
Package dimensions 26.80 × 3.60 × 3.60 in
brands

Questions & Answers

What is Bilstein part number 24-025027?

It is a rear 4600 Series shock absorber with a monotube, gas-charged body, a 2 in body diameter, a yellow finish and boots included. Its UPC is 65186045134.

Will the Bilstein 24-025027 fit my vehicle?

Fit for this shock needs confirmation for your vehicle. Match your year, make, model and trim, and compare the old shock's length and mounting points before choosing it.

Is the 24-025027 a reservoir shock?

No. It is a monotube design with no reservoir, and the charge is gas. Boots are included with the shock, so check the mounting parts before fitting.

Does this shock list a lift amount?

No lift amount is given. The only height information is w/0 in. Lift/Drop, so confirm the ride height your vehicle needs before choosing a rear shock.

How does a gas-charged monotube handle heat?

The oil passes heat outward through the body, and the dividing piston lets the oil expand as it warms. That arrangement helps the damping stay steady during long drives or repeated trail climbs, when a shock would otherwise heat up quickly.

What should I check on the mounts before fitting?

Look at the eyelets, bushings and hardware for wear, cracks or corrosion. Replace any worn bushings before fitting the shock so the new unit does not sit under side load. Clean the mounting surfaces to help bolts seat properly.
