Overview

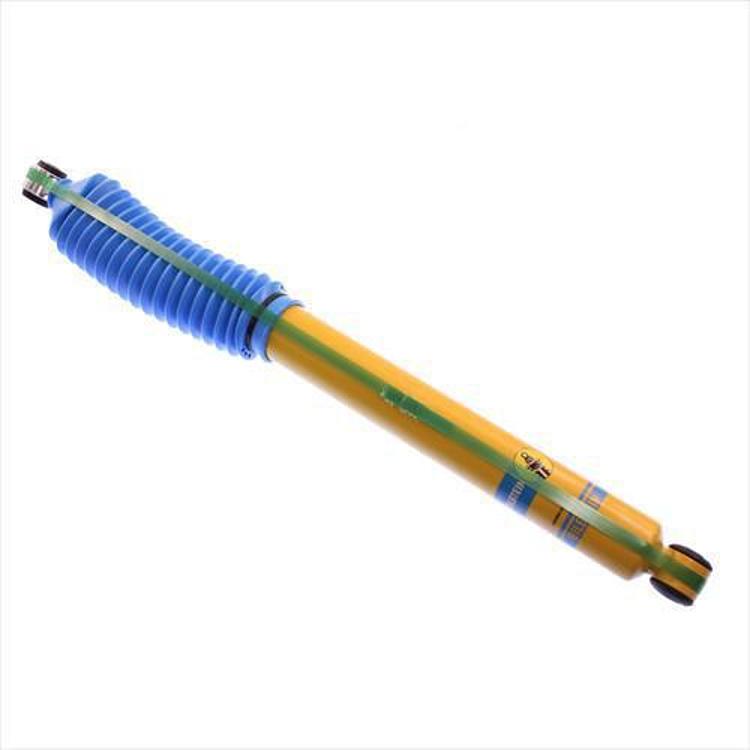

The Bilstein 24-188258 is a rear 46mm monotube gas charged shock absorber from the 4600 Series, finished in yellow and built as a heavy duty design. It is a direct fit for the 1998–2011 Ford Ranger and for Mazda B-Series pickups, including the B3000 from 1998 to 2002 and the B4000 from 1998 to 2009.
Bilstein’s gas pressure monotube design moves heat from the oil through the shock body to its outer surface, where it dissipates. A dividing piston lets the oil expand as temperature climbs, which the company says limits foaming and viscosity loss so the shock keeps its full damping as it heats up.
Key features
- Gas charged monotube body that moves heat from the oil to the outer shock surface.
- Dividing piston allows the oil to expand as heat builds, limiting aeration (foaming) and viscosity loss.
- Seamless monotube tube made with a special extrusion method for tight peak-to-valley tolerance.
- Piston head design allows independent tuning of compression and rebound damping forces.
- Digressive piston design with fewer parts than most conventional twin tube and road sensing shocks.
- Heavy duty build within the 4600 Series, for the rear position.
Gas charge and installation care
Gas charged shocks carry a pressurized body, so the cylinder needs to be treated with care during removal, storage and installation. Heat from a torch or cutting tool can change the pressure and damage the seals, so leave the body intact and keep it away from grinding or welding. A monotube design keeps the oil and gas in one tube, which makes the outer body a single component to inspect.
Rear shocks on a Ranger or Mazda B-Series truck often show wear at the bushings and bump stops, so inspect those while the shock is off. Fresh mounts let the rear end move freely and allow the shock to work through its full range.
- Store used shocks upright and out of the sun
- Inspect the eye and stud mounts for cracks
- Use new bushings when the old ones show wear
- Test the rear bounce after installation
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-188258 |
| UPC | 651860636962 |
| Old part number | BILF4-BE5-2795-H2 |
| Shock series | 4600 Series |
| Size | 46mm monotube |
| Design | Monotube, gas charged |
| Position | Rear |
| Fitment type | Direct fit |
| Lift height | 0 in. lift/drop |
| Finish | Yellow |
| Duty | Heavy duty |
Vehicle fitment
Bilstein’s manufacturer fitment list for this part covers the 1998–2011 Ford Ranger (Edge, FX4, Splash, Sport, Tremor, XL, XLT trims), the 1998–2002 Mazda B3000 (Base, SE, SX) and the 1998–2009 Mazda B4000 (Base, SE, Troy Lee).
Ford Ranger model years after 2011 and Mazda B-Series models other than the B3000 and B4000 are not on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Being gas charged, the body is pressurized, so do not heat, cut or puncture it during removal or installation.
What’s included
The package contains one rear shock absorber. Check it for mounting hardware and bushings before installation.
