Bilstein 5165 Series Reservoir Shock Absorber – 25-187748

Bilstein

Shop Bilstein Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Universal Fit Bilstein 5165 Series reservoir shock for custom lifted trucks and SUVs
  • Part number 25-187748 and UPC 651860649696
  • Gas-charged monotube with a remote reservoir and floating dividing piston

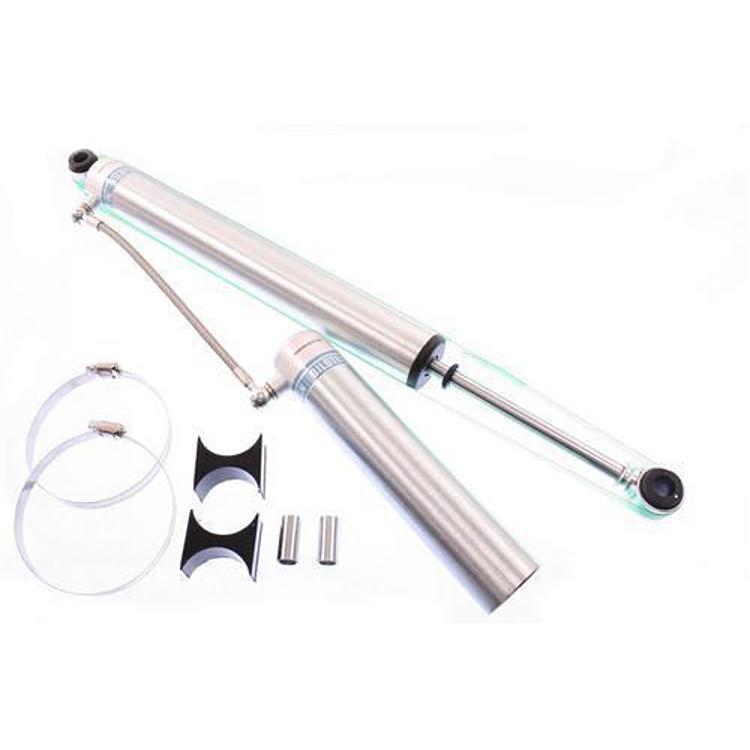

  • Comes with a reservoir mounting kit and detailed instructions

Description

Overview

The Bilstein 25-187748 is a 5165 Series reservoir shock absorber built for custom lifted trucks and SUVs. It is a gas-charged monotube shock that pairs a remote reservoir with the damper body and carries a Universal Fit designation.

The remote reservoir adds shock oil capacity, which Bilstein says improves heat dissipation and damping sensitivity. Because the floating dividing piston sits in the reservoir rather than the shock body, the shaft has more room to move, which gives the suspension more wheel travel.

Key features

  • Bilstein monotube design, which the brand calls its industry-leading construction
  • Digressive valving that produces full damping capability right away
  • Remote reservoir for greater shock oil capacity and heat dissipation
  • Floating dividing piston housed in the reservoir for added wheel travel and shaft movement
  • Triple-C Technology finish that Bilstein says is easy to care for and holds its look

Choosing the right reservoir position

The reservoir position affects both cooling and hose life. A reservoir that sits in open airflow stays cooler, while one tucked behind a mud flap or against a skid plate can trap heat and debris. Plan the mount before the shock goes in, and make sure the reservoir can move slightly without pulling on the hose.

Gas-charged shocks are under pressure, so handle them with care during install and removal. Keep fingers clear of the mounting eye while the unit is being positioned, and secure the reservoir so it cannot swing into a wheel or tire during the first drive.

  • Choose a spot with airflow over the reservoir
  • Keep the hose away from tires and sharp edges
  • Handle the gas-charged body with care

Specifications

Brand Bilstein
Part number 25-187748
UPC 651860649696
Shock series 5165 Series
Design Monotube with remote reservoir
Charge Gas charged
Fitment Universal Fit
Finish Triple-C Technology

Vehicle fitment

It is a Universal Fit shock, so it is not matched to a specific year, make or model. Check its mounting arrangement and length against your suspension before choosing it.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Plan the reservoir location before the shock goes in, and keep the reservoir hose clear of moving suspension parts and tires. Gas-charged shocks are under pressure, so handle them with care during installation.

What’s included

Each shock comes with a reservoir mounting kit and detailed instructions for the installation.

SKU: BIL25-187748 Category:

Specification

Shipping weight 4.63 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Questions & Answers

Does the Bilstein 25-187748 fit a specific vehicle?

It is a Universal Fit shock, so it fits no single year, make or model by design. Compare its mounting arrangement and length with your suspension before buying.

What does the remote reservoir do on the 25-187748?

The reservoir adds shock oil capacity, which Bilstein says improves heat dissipation and damping sensitivity. The floating dividing piston sits in the reservoir, which allows more shaft movement and wheel travel.

Is a reservoir mounting kit included with the 25-187748?

Yes. A reservoir mounting kit and instructions come with each shock. Check any other hardware you need against your installation plan before starting.

Does a reservoir shock need special care after install?

Periodic checks are enough. Look at the hose fittings and reservoir mounts after the first trail runs, then at regular service intervals. Tighten any loose clamps and replace a hose that shows cracks or abrasion.
