Overview

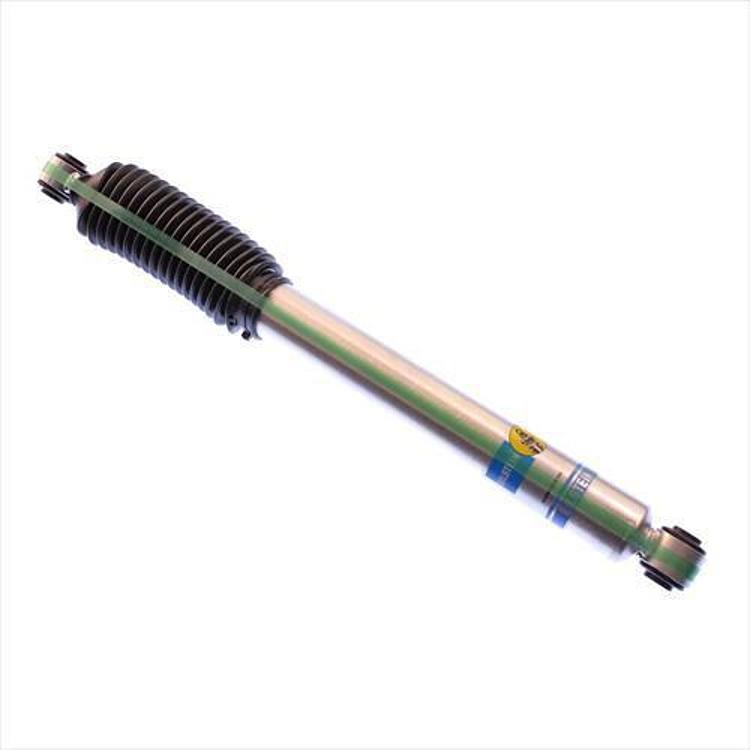

The Bilstein 24-187374 is a 5100 Series non-coilover shock with a mono tube design and eye mounts at both ends. It is built for lifted trucks, Jeeps and prerunners, and for lift kits that keep the stock O.E.M. mounting configuration. Confirm fit for your vehicle before ordering.
The gas pressure monotube design is built for consistent damping and long service life. Its collapsed length is 16.75 in and extended length is 26.73 in, giving 9.98 in of travel. The 14 mm shaft and 14.1 mm eye mounts are the dimensions to compare with your current shock.
Key features
- Monotube gas pressure construction
- Single tube design for consistent damping.
- Non-coilover body with a 46mm ID smooth body
- Self-adjusting deflecting disc valving
- A high-flow piston reduces harshness.
- Independent rebound and compression tuning
- Boot included; zinc plated finish
Matching a shock to your suspension
A non-coilover shock is a standalone unit that does not carry a spring, so the springs and spring seats are separate parts. That makes measurements the key to choosing a match: the collapsed length, extended length and mount type have to fit the space your suspension leaves. Check these figures against the current shock before ordering, and remember that lift height changes the usable travel.
Eye mounts at both ends use bushings that wear over time, and worn bushings allow the shock to knock or rotate under load. Replacing bushings and hardware along with the shock keeps the geometry as designed. Lift kits built around the stock mounting layout are the usual reason a shock of this type is chosen.
- Measure collapsed and extended lengths
- Confirm eye size and bushing condition
- Check the boot before installation
- Use new hardware with the new unit
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-187374 |
| UPC | 651860623450 |
| Shock series | 5100 Series |
| Collapsed length | 16.75 in |
| Extended length | 26.73 in |
| Travel length | 9.98 in |
| Lower mount | Eye, 14.1 mm |
| Upper mount | Eye, 14.1 mm |
| Shaft diameter | 14 mm |
| Body | 46mm ID smooth body, non-coilover |
| Internal design | Mono tube |
| Reservoir | No |
| Finish | Zinc plated |
| Boot included | Yes |
| Hydraulic / gas charged | Gas Charged |
Vehicle fitment
Confirm fit for your vehicle’s year, make, model and trim before ordering.
Measure your current shock’s collapsed and extended lengths and mount sizes against the figures above before buying.
What’s included
The shock absorber with boot.
