Overview

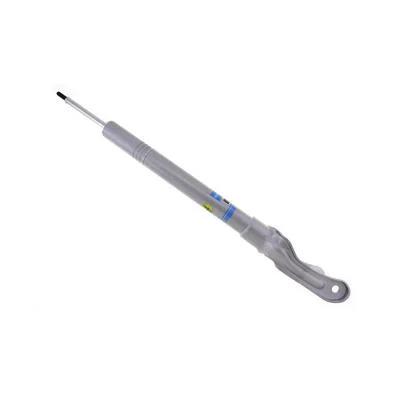

The Bilstein 5100 Series 24-225434 is a front shock absorber for the 2011–2015 Dodge Durango and the 2011–2015 Jeep Grand Cherokee (WK). It is built to level the front end of half-ton trucks, Jeeps and SUVs that have an OEM coilover suspension, and the lift range is 0 to 2.5 inches.
It is a monotube design with a 46mm smooth body, a 14mm shaft and a stem upper mount. It travels 5.81 inches between a collapsed length of 26.28 inches and an extended length of 32.09 inches. The front lift height is 0.4 to 1.75 inches, and the front lift range is 0 to 2.5 inches, so confirm the lift you need against both figures before ordering.
Key features
- Front shock designed for OEM coilover suspensions
- Front lift range of 0 to 2.5 in
- Monotube internal design with a 14mm shaft
- Smooth 46mm body with zinc-plated finish
- Stem upper mount and no external reservoir
Ride height and spring seats
Front shocks on an OEM coilover suspension work with the spring to set ride height, so the shock body and the spring seat position together decide how the truck sits. A lift style shock changes the spring seat position, which alters preload and the way the front end settles under load. Because the spring and shock interact, the setup should be checked as a unit.
Before choosing a unit, confirm the front lift range for your truck and the length of the old shock. Zinc plating can protect the body from surface rust, but the rod, seals and mounts still need inspection. Replace the front pair together, and check alignment after any height change because steering geometry shifts with ride height.
- Measure the old shock length before ordering
- Check spring seat condition
- Re-check alignment after height changes
- Inspect the rod for scoring or rust
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-225434 |
| Shock series | 5100 Series |
| Position | Front |
| Front lift | 0 to 2.5 in |
| Lift height field | 0.4 to 1.75 in |
| Collapsed length | 26.28 in |
| Extended length | 32.09 in |
| Travel | 5.81 in |
| Shaft diameter | 14mm |
| Upper mount | Stem |
| Reservoir | No |
| Boot | Not included |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2011–2015 Dodge Durango and the 2011–2015 Jeep Grand Cherokee (WK). Grand Cherokee coverage is limited to the WK generation in those model years.
The Jeep Grand Cherokee ZJ and WJ, and Durango years before 2011 or after 2015, are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The lift is set by the spring seat position, so confirm the lift range on your truck before choosing this unit, because the two stated lift figures differ.
