Overview

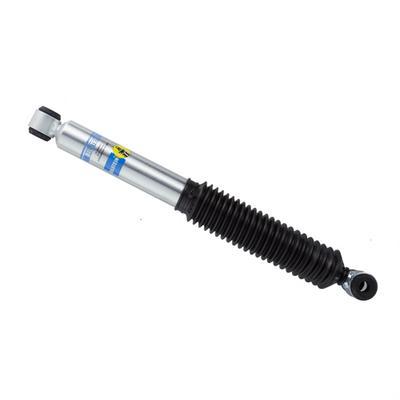

The Bilstein 5100 Series 24-233354 is a rear shock absorber for the 2019–2026 Ram 1500. It suits lifted trucks without air suspension. Rear lift is 0 to 1 inch, or 0 to 2 inches on trucks without the factory Off-Road Package.
The shock has a 46mm zinc-plated smooth body with a monotube design and a digressive piston, designed to keep damping steady over long use and resist fade. Each unit is tuned to its application. The collapsed length is 15.89 inches and the extended length is 25.43 inches, so compare these with the shock you are replacing before buying.
Each unit is sold individually, so a rear pair needs two orders. The lift depends on whether the truck has the factory Off-Road Package, so check the package before choosing the lift you expect.
Key features
- Rear lift of 0 to 1 in, or 0 to 2 in without the factory Off-Road Package
- Not for trucks with air suspension
- 46mm zinc-plated smooth body
- Collapsed length 15.89 in and extended length 25.43 in
- Monotube design with a velocity-sensitive digressive piston
Measuring and matching the rear
On a Ram 1500 the rear shock works with the leaf or coil springs and the bump stops, so the lift you get depends on the spring setup as much as the shock itself. Before ordering, look at the old shock’s extended length and mount positions so the replacement can be compared directly.
Rear shocks are often replaced alongside brake lines and a driveshaft check, since a lifted rear changes the angles of those parts. Check the bump stops and rubber mounts for cracking while the shock is out, and keep the old hardware only if it is in good condition.
- Compare extended length at both mounts
- Inspect rubber mounts for cracks
- Check brake hose length after the rear is raised
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-233354 |
| Shock series | 5100 Series |
| Position | Rear |
| Body diameter | 46mm |
| Rear lift | 0 to 1 in; 0 to 2 in without the factory Off-Road Package |
| Collapsed length | 15.89 in |
| Extended length | 25.43 in |
| Air suspension | Not compatible |
| Shock type | Monotube, gas-charged |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2019 through 2026 Ram 1500, for trucks that match that range.
Ram 1500 models from before 2019, Ram 2500 and Ram 3500 trucks, and Ram 1500 trucks with air suspension are not covered. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Part 24-233354: one rear shock absorber, sold individually.
Installation notes
Confirm whether your Ram has air suspension and whether it has the Off-Road Package, since both change the lift you can expect. Measure the rear ride height after the new shock is in place.
