Overview

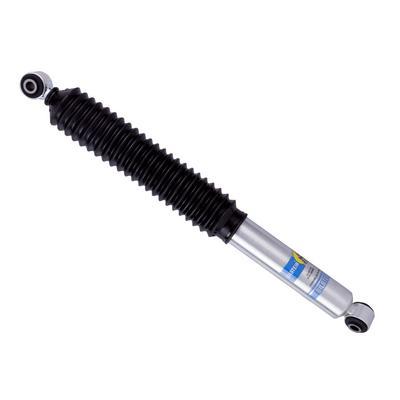

The Bilstein 5100 Series 24-251778 is a rear shock absorber for the 2015–2020 Chevrolet Tahoe and the 2015–2020 GMC Yukon. It offers up to 1 inch of rear lift and is a direct-fit replacement for trucks without air suspension or the police package.
The shock has a zinc-plated, 46mm smooth body and a monotube design. The collapsed length is 15.58 inches and the extended length is 24.17 inches. Its digressive piston adjusts damping as road conditions change.
Because the shock is rated for up to 1 inch of rear lift, it suits an SUV that is already sitting slightly high at the back, or one being raised to level the rear. Measure your current rear shock before ordering, since the extended length is the dimension that has to match.
Key features
- Rear lift of up to 1 in
- Not for vehicles with air suspension or the police package
- Smooth 46mm zinc-plated body
- Collapsed length 15.58 in and extended length 24.17 in
- Monotube design with a digressive piston
Measuring before you buy
Rear shocks on full-size SUVs carry more load than many owners expect, especially when the vehicle is used to tow or carry gear. Measuring the old unit at both mounts shows whether the new shock will sit at the right length and whether the lift setting suits the way the vehicle is driven.
On a Tahoe or Yukon, the rear shocks often wear before the front ones, and the damping can fade gradually. Inspect the shock body, rubber mounts and rear bump stops together, since these parts share the job of controlling the axle and are best checked at the same time.
- Measure the old shock at both mounts
- Check bump stops for cracking
- Inspect rear mounts for worn rubber
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-251778 |
| Shock series | 5100 Series |
| Position | Rear |
| Shock type | Monotube, gas-charged |
| Body diameter | 46mm |
| Rear lift | Up to 1 in |
| Collapsed length | 15.58 in |
| Extended length | 24.17 in |
| Finish | Zinc plated |
| Air suspension | Not compatible |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2015 through 2020 Chevrolet Tahoe and the 2015 through 2020 GMC Yukon, for the model years in that range.
Suburban and Yukon XL models, Tahoe models from before 2015, and vehicles with air suspension or the police package are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Part 24-251778: one rear shock absorber, sold individually.
