Bilstein 5100 Series Shock Absorber – 24-274999

Bilstein

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front shock for 2009–2010, 2011–2018 and 2019–2024 Ram 1500 2WD lifted trucks
  • Built for a 1.75 in front lift
  • Collapsed length 9.88 in, extended length 14.63 in
  • Zinc-plated, smooth non-coilover body

Description

Overview

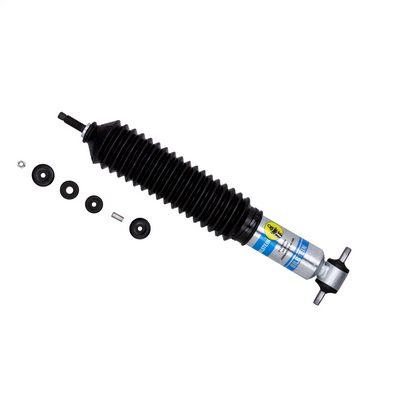

The Bilstein 5100 Series 24-274999 is a front shock absorber built for 2WD Ram 1500 trucks with a 1.75 inch front lift. It is not designed for trucks with air suspension.

The shock has a smooth, zinc-plated body that is not a coilover design. Its collapsed length is 9.88 inches and its extended length is 14.63 inches, which are the dimensions to compare against the front shock you are replacing. The unit uses a monotube design with a digressive piston, which Bilstein says gives consistent damping and a significant improvement in ride quality.

This shock is made for 2WD trucks. A four-wheel-drive Ram 1500 needs a different front shock with its own length, so do not fit this part to a 4×4 without checking the drive type first.

Key features

  • Built for a 1.75 in front lift
  • 2WD models only
  • Not for air suspension
  • Collapsed length 9.88 in and extended length 14.63 in
  • Smooth non-coilover body with a monotube design

Lift and alignment checks

A 1.75 inch front lift changes the geometry of the whole front end, including the control arms, steering linkage and the angle of the axle. Those changes are why the new shock should be matched to the lift on the truck rather than chosen by year alone. Swapping in a shock with the wrong length can leave the suspension at the end of its travel.

Once the shock is in, the front alignment should be checked and the headlights reaimed, since the ride height has changed. Inspect the bump stops and upper mounts at the same time, because worn parts can shift the new height and make the truck feel loose on rough roads. Smooth, non-coilover bodies depend on the spring and mounts working together.

  • Measure the old shock before ordering
  • Check bump stops for cracks
  • Recheck alignment after the first drive

Specifications

Brand Bilstein
Part number 24-274999
Shock series 5100 Series
Position Front
Drive type 2WD only
Front lift 1.75 in
Collapsed length 9.88 in
Extended length 14.63 in
Body Smooth, non-coilover
Finish Zinc plated
Air suspension Not compatible
Fitment type Direct fit

Vehicle fitment

It fits the 2009 and 2010 Dodge Ram 1500, the 2011 through 2018 Ram 1500 and the 2019 through 2024 Ram 1500 Classic. The Ram 1500 ranges cover those model years for 2WD trucks.

Four-wheel-drive Ram 1500 trucks, Ram 2500 and 3500 models, and trucks with air suspension are not covered. Confirm your vehicle’s year, model and trim before ordering.

What’s included

Part 24-274999: one front shock absorber, sold individually.

Installation notes

Because the shock is sized for a 1.75 inch front lift, confirm the lift on your truck before fitting. Check the front alignment after the shock is installed, since the lift changes the front geometry.

Fitment

VehicleYearsTrims
Dodge Ram 15002009–2010Laramie, SLT, ST, Sport, TRX
Ram 15002011–2018Big Horn, Express, HFE, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, Outdoorsman, R/T, SLT, ST, Sport, Tradesman, Tradesman HD
Ram 1500 Classic2019–2024Big Horn, Express, Laramie, Lone Star, SLT, Tradesman, Warlock

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 24-274999 fit a 2015 Ram 1500?

Yes, if the truck is a 2WD model. It fits the 2011 to 2018 Ram 1500, so a 2015 model is covered. Confirm the drive type before ordering.

Is this shock for 4x4 Ram 1500 trucks?

No. This shock is 2WD only, so a four-wheel-drive Ram 1500 is not covered by this part. Four-wheel-drive trucks need a front shock with its own length, so confirm the drive type first.

What lift does this front shock give?

It is built for a 1.75 inch front lift. Its collapsed length is 9.88 inches and its extended length is 14.63 inches, so compare those figures with the shock you are replacing before fitting.

Should the front bump stops be changed with this lift?

Often, yes. Worn bump stops are a common reason a lifted front end feels harsh or bottoms out on rough roads. Inspect them when the shock is removed and replace any that are cracked, flattened or missing.
