Overview

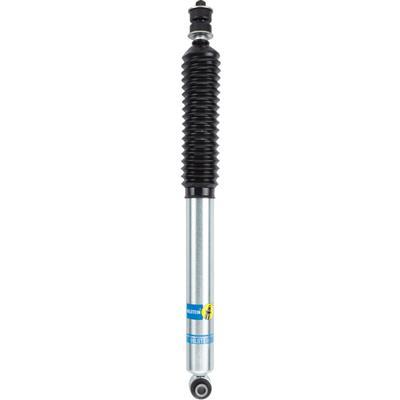

The Bilstein BIL33-292625 is a front B8 5100 Series monotube shock absorber for lifted 2018 to 2026 Jeep Wrangler JL models. It is designed for a 2 to 3 inch lift and is a direct-fit shock for lifted trucks and SUVs.
The shock fits 2-door and 4-door Wranglers, including the Unlimited, in many trims. Confirm the door count and lift height before ordering. The shock uses a non-coilover body, so it mounts separately from the spring.
Key features
- Monotube design
- Velocity-sensitive, digressive piston
- 46 mm inside diameter smooth body with a non-coilover design
- Eye mounts at the top and bottom, 12.8 mm
- Zinc-plated body with an included boot
- Bilstein says each shock is tuned for its specific application and gives improved ride quality, handling and comfort
Lift height and shock travel
A shock absorber on a lifted vehicle works through more suspension travel than a stock one, so its length and mounting points matter more. Shocks control the rate at which the spring compresses and rebounds, and on a lifted Jeep they help limit the body movement that a taller stance can create. Matching the shock to the lift you are running keeps the suspension working in its intended range.
Front shocks on Wranglers are often replaced alongside steering and control arm upgrades, since those parts affect how the axle moves. Keep the boot in place during installation to protect the piston rod from grit, and check the eye mounts for wear after rough trail use. Dust boots and bushings are inexpensive items to inspect during every service.
- Match the shock to the lift height
- Inspect eye mounts and bushings after trail use
- Keep the dust boot in place
- Check that the shock clears the spring at full travel
Specifications
| Brand | Bilstein |
|---|---|
| Part number | BIL33-292625 |
| Series | 5100 Series |
| Location | Front |
| Shock type | Monotube |
| Charge | Gas charged |
| Collapsed length | 17.07 inches |
| Extended length | 26.88 inches |
| Body | 46 mm ID smooth body, non-coilover |
| Upper and lower mount | Eye, 12.8 mm |
| Reservoir | None |
| Finish | Zinc plated |
| Boot | Included |
| Lift height | 2 to 3 inches |
| Fitment type | Direct fit |
| Quantity | Sold individually |
Vehicle fitment
It fits the 2018–2026 Jeep Wrangler (JL), including 2-door models such as Willys, Willys Sport, Sport, Sport S, Freedom, Islander, Rubicon and 80th Anniversary, and 4-door Unlimited models in Sport, Sahara, Rubicon, High Altitude, Moab, Willys and other trims, including the 4xe and Rubicon 392 variants. Gladiator and earlier Wrangler generations are not covered. Confirm your vehicle’s year, model and trim before ordering.
The list names Wrangler models only, from 2018 to 2026, so the Gladiator and earlier Wrangler generations are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the collapsed length of 17.07 inches and the extended length of 26.88 inches with the original front shock before fitting, and confirm the lift is in the 2 to 3 inch range. Work on a securely supported vehicle.
What’s included
One front shock absorber with a boot, sold individually.
