Overview

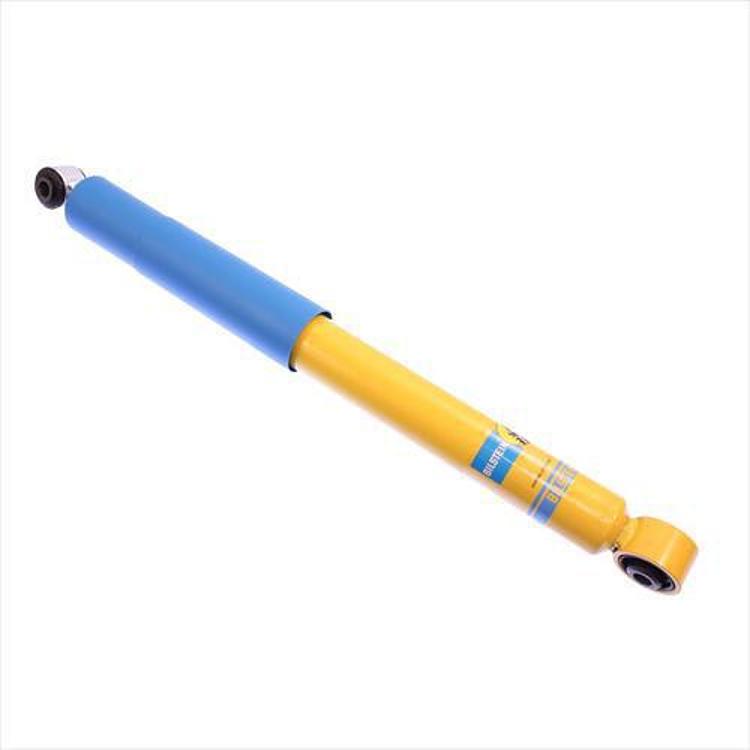

The Bilstein 24-143806 is a rear monotube gas-charged shock absorber from the 4600 Series, with a 46mm size and a 2 in body diameter. It controls spring and axle movement at the rear over rough ground and on the trail. It is a Direct Fit design, so confirm fit for your vehicle before ordering.
Bilstein’s monotube design uses one tube with a dividing piston. As the oil heats, the piston lets it expand, which prevents foaming and keeps the oil from losing viscosity, so the shock holds its damping as temperatures rise. The body is gas charged, and the outer surface moves heat out of the oil. The tube is formed by extrusion for tight peak-to-valley tolerance and even wall thickness. The piston head can be tuned for compression and rebound separately, and the design uses fewer parts than conventional twin-tube and road-sensing shocks.
This shock suits owners who want a yellow-finished replacement rear damper with dust boots and no external reservoir. Confirm fit against your vehicle’s year, model and trim before ordering.
Key features
- Monotube gas-charged body with a dividing piston that lets oil expand as it heats
- Seamless monotube tube made by extrusion for tight tolerance and even wall thickness
- Piston head allows independent compression and rebound damping tuning
- Fewer parts than most conventional twin-tube designs
- Dust boots included
- Yellow finish
Choosing a rear shock
A rear shock controls how the axle moves against the body, so its damping shapes stability on washboard roads, rocky trails and loaded runs. Choosing a replacement starts with measuring the unit you are removing: the installed length, the stroke, and the eye or stud spacing at each end. Matching those dimensions and the rear position is the surest way to get a clean fit.
Gas charged monotube designs keep their damping steadier as the oil warms, which suits repeated bumps and sustained trail use. Replacing rear shocks in pairs helps both sides respond the same way, and the bushings and mounting hardware should be inspected at the same time. Keep the dust boots free of grit and check for oil seepage after rough runs.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-143806 |
| UPC | 651860596563 |
| Shock series | 4600 Series |
| Position | Rear |
| Type | Monotube, gas charged |
| Body diameter | 2 in |
| Size in title | 46mm |
| Reservoir | No |
| Boots included | Yes |
| Finish | Yellow |
| Lift height | 0 in lift/drop |
| Fitment type | Direct fit |
Vehicle fitment
It is a Direct Fit rear shock. Check your year, model and trim before ordering, and compare the mounting points with the shock you are removing.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One rear shock absorber with dust boots.
