Overview

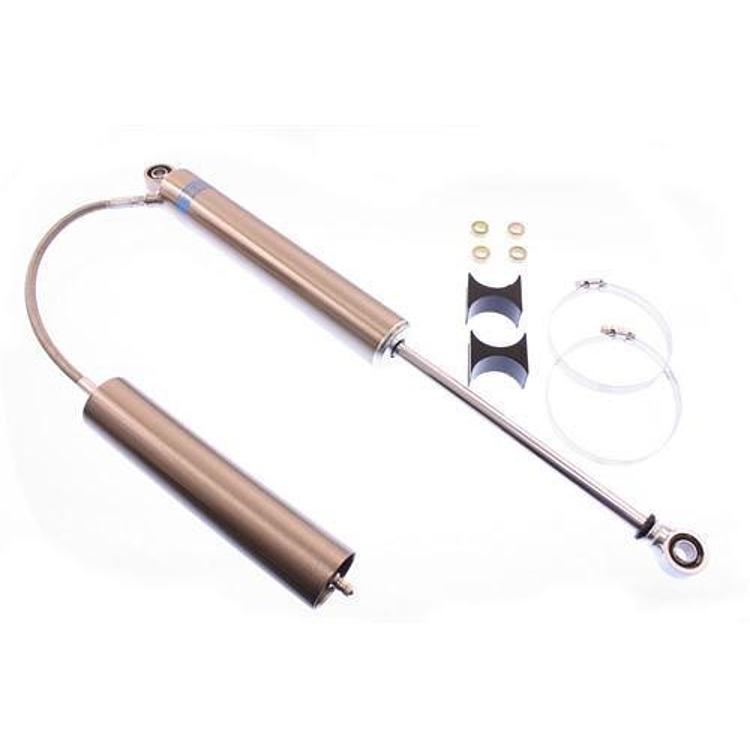

The Bilstein AK7112SB06 is a 7100 Series reservoir shock absorber, a gas-charged monotube shock that can be run with or without a remote reservoir. Bilstein designed the 7100 Series as a versatile shock for trucks, prerunner trucks, limited race buggies, sand buggies and other off-road vehicles.
The 7100 can be completely rebuilt by its owner. It uses a Schrader valve fitment with a dividing piston, and it is labeled universal fit with no vehicle years or chassis codes tied to it.
Key features
- Available with or without a remote reservoir
- Monotube gas pressure construction
- Self-adjusting deflecting disc valving
- High-flow piston that reduces harshness
- Choice of valvings
- Schrader valve shock with dividing piston
- Completely owner rebuildable
Reservoir or no reservoir
The series can be run with or without a remote reservoir, so the choice depends on space and how hard the shock will work. A reservoir separates the gas from the hot oil, which helps the shock keep consistent damping over long descents. A body-only setup is simpler to fit where clearance is tight.
Whichever way you go, route any hose so it does not rub on the frame, axle or tire. Mount the reservoir where it can be checked during a trail stop. Shocks that run hot tend to wear seals faster, so inspect them after long runs and keep grime off the body so heat can escape.
- Measure clearance before choosing
- Route hoses away from moving parts
- Inspect after long descents
Specifications
| Brand | Bilstein |
|---|---|
| Part number | AK7112SB06 |
| UPC | 790832511255 |
| Series | 7100 Series |
| Shock body diameter | 2 in |
| Travel options (series) | 8, 10, 12 and 14 in |
| Charge | Gas charged |
| Valve fitment | Schrader valve with dividing piston |
Vehicle fitment
It carries a universal fit label. Check the shock length and travel against your suspension before buying, since fitment is not confirmed for a particular truck or buggy.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Before installing, match the hardware and any reservoir fittings to your mounting points.
