Overview

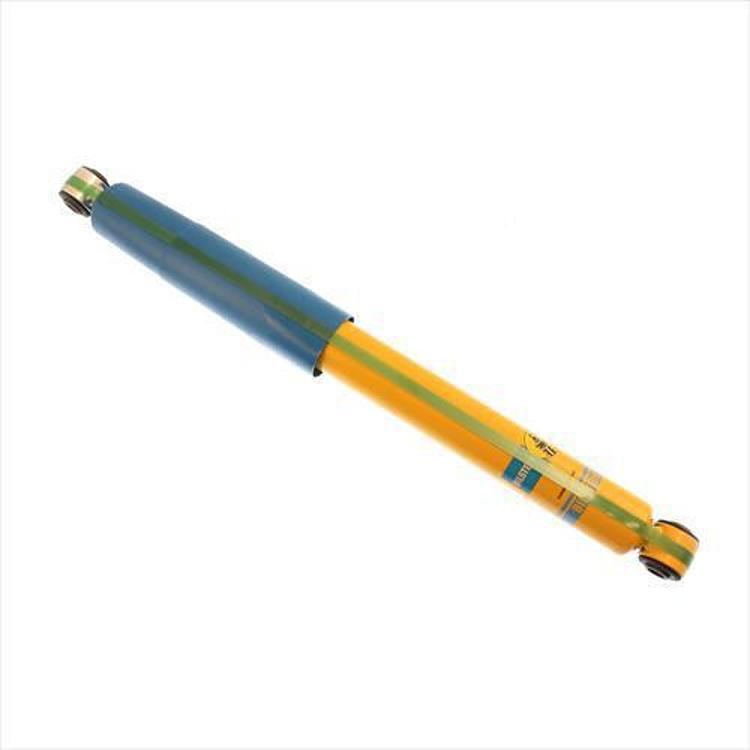

The Bilstein 24-187510 is a rear 46mm monotube gas charged shock absorber from the 4600 Series, finished in yellow. It is for the rear position and carries 0 in. lift/drop.
A monotube shock keeps the oil and the gas charge in one tube, separated by a floating dividing piston. Bilstein says heat moves from the oil through the outer surface of the shock body, and that the piston lets the oil expand as it warms. That expansion room is meant to prevent foaming and thinning of the oil, so damping holds steady as temperatures rise.
In a monotube body, heat from the oil passes through the outer surface of the shock. The design uses fewer parts than conventional twin tube and road sensing designs. Compared with a twin tube shock, which keeps its oil in an outer reserve tube, the monotube body is a single tube.
Key features
- Monotube body with a dividing piston that lets the oil expand as it heats
- Gas charged construction
- Seamless tube described by Bilstein for strength and heat dissipation
- Extrusion process for a tight peak-to-valley tolerance and consistent wall thickness
- Piston head allows compression and rebound damping to be tuned independently
- Heavy duty construction
- Fewer parts than conventional twin tube designs
Rear shock replacement tips
Replacing a rear shock is often a simple bolt-on job, but rear suspension varies widely from one vehicle to another. Before you begin, support the axle safely, note the orientation of the shock, and make sure the upper and lower mounts match the vehicle’s bushings. A monotube design keeps the oil and gas in one tube, so there is no external reserve hose to route around the frame or body.
Rear shocks carry much of the load on a loaded vehicle, so consistent damping on both sides matters for stability in corners. When one shock wears out, the other side often follows, so replacing them in pairs keeps the rear end balanced. A worn shock typically shows as bounce after a bump, rear tires that cup, or oil spotting on the body.
- Use fresh mounting hardware and bushings where wear is visible
- Check the bump stops for cracking during the same job
- Clean mounting surfaces before tightening the fasteners
- Bounce each rear corner after installation to check the ride
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-187510 |
| UPC | 651860641485 |
| Former part number | BILF4-BE5-G779-H0 |
| Shock series | 4600 Series |
| Shock type | Monotube, gas charged |
| Tube size | 46mm |
| Position | Rear |
| Fitment type | Direct Fit |
| Lift height | 0 in. lift/drop |
| Finish | Yellow |
Vehicle fitment
This shock is for the rear position. Confirm fit for your vehicle’s year, model and trim before ordering, and compare its rear mounting points with the shock you are replacing.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The package contains one rear shock absorber. Check the mounting hardware and bushings against your installation before starting.
