Overview

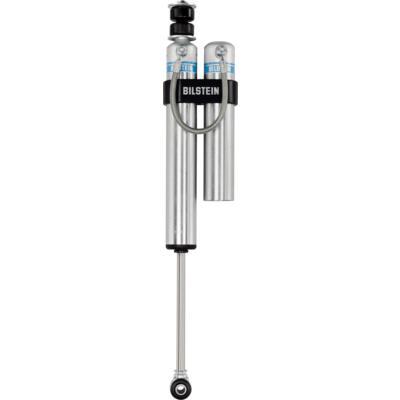

The Bilstein BIL25-313154 is a rear left B8 5160 Series shock absorber with a remote reservoir. It fits the Toyota 4Runner, Lexus GX460, Lexus GX470 and Toyota FJ Cruiser, covering 2003 to 2023 4Runner, 2010 to 2023 GX460, 2003 to 2009 GX470 and 2007 to 2014 FJ Cruiser models.
The reservoir is a separate tube connected to the shock and adds oil capacity, which helps dissipate more heat and supports long-term durability. The zinc plating supports the body over time. Reservoir mounts are included in the box, and an optional billet aluminum reservoir clamp gives a neater, more compact installation.
Key features
- Remote reservoir for extra oil capacity
- The extra oil capacity helps dissipate heat.
- Zinc-plated body
- Stem top upper mount and eyelet lower mount
- Reservoir mounts included
- Optional billet aluminum reservoir clamp
Reservoir placement and heat
A remote reservoir gives the shock more oil volume than a standard body, which helps when the shock works hard on long descents or rough trails. Heat builds up in the oil, and more volume gives it room to cool between hard cycles. Position the reservoir where it gets airflow and stays clear of mud, rocks and the exhaust.
Mount the reservoir so the hose is not stretched or rubbing when the suspension compresses. Check the hose and fittings at each service, and look for oil seepage near the reservoir cap. Replace shocks in pairs on the same axle so the rear damping stays balanced.
- Route the reservoir hose clear of moving parts
- Check the reservoir mounts for cracks
- Inspect the body for dents that can affect the seals
Specifications
| Brand | Bilstein |
|---|---|
| Part number | BIL25-313154 |
| Series | 5160 Series |
| Location | Rear |
| Position | Rear left |
| Shock type | Reservoir |
| Charge | Gas charged |
| Body diameter | 46 mm |
| Top mount | Stem top |
| Bottom mount | Eyelet |
| Reservoir | Remote |
| Reservoir mounts | Included |
| Finish | Zinc plated |
| Fitment type | Direct fit |
Vehicle fitment
Covered trims are the GX460 Base and Premium from 2010 to 2023, the GX470 Base from 2003 to 2009, the 4Runner Limited, Nightshade, SR5, SR5 Premium, Sport, TRD Off-Road, TRD Off-Road Premium, TRD Pro, Trail and Venture from 2003 to 2023, and the FJ Cruiser Base, TRD Special Edition and Trail Teams Special Edition from 2007 to 2014.
The list covers only these four models and the years named, so other Lexus and Toyota models are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Reservoir mounts are included, so decide where the reservoir will sit before fitting. The billet aluminum reservoir clamp is a separate purchase. Work on a securely supported vehicle.
What’s included
One rear left shock with remote reservoir and reservoir mounts. The billet aluminum reservoir clamp is a separate, optional accessory.
