Artec Industries Adjustable Panhard Mount for D60 Truss – BR1026

Artec Industries

Shop Artec Industries Axle Truss on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Artec Industries Panhard mount, part number A/IBR1026, for Dana 60 axles with Artec truss
  • Three holes at 7, 8 and 9 inches from axle centerline
  • Fits joints with a 1.75 inch mounting width
  • Tube diameter 3 inches; sold as a single mount
  • Welding required; the truss is not part of this item

Description

Overview

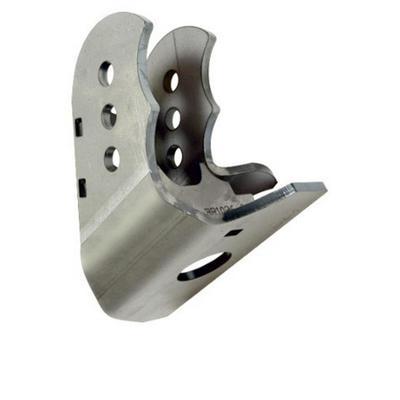

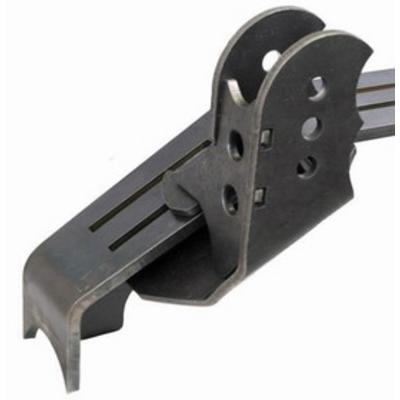

The Artec Industries A/IBR1026 is a 3-inch tube Panhard mount for Dana 60 axles that use an Artec truss. A Panhard bar, also called a track bar, keeps the axle centered side to side, and this mount gives the bar a fixed attachment point on the truss. Artec designed it for three-link and four-link suspension setups.

The mount is designed with geometry and clearances planned for other aftermarket components such as hydraulic rams and coilovers. Its design matches the style and strength of the truss it fits. It is built for joints with a 1.75 inch mounting width, including 3/4 inch and 7/8 x 3/4 inch rod ends with high misalignment spacers.

Key features

  • Three mounting holes at 7, 8 and 9 inches from axle centerline for fine-tuning suspension
  • Designed for joints with a 1.75 inch mounting width
  • Works with 3/4 inch and 7/8 x 3/4 inch rod ends that use high misalignment spacers
  • Matches the style and strength of Artec truss systems
  • Geometry and clearance room for hydraulic rams and coilovers

Welding and hole selection

Welding a panhard mount to a truss is a structural job. Fit the mount in place, confirm the hole you have selected, and tack it before any full-length weld. Make sure the weld preparation is clean so the joint fuses evenly, and let the work cool before checking the position again.

Hole choice affects how the bar sits at the axle, so measure before committing. The three positions give a range of tuning options, and the right one depends on your joint spacing and ride height. Dry fit the rod ends with the spacers in place to confirm the mounting width works with the joint you have.

Wear appropriate eye and hand protection, and work in a ventilated area when welding painted or coated steel. Inspect the finished welds for cracks or incomplete fusion before installing the rest of the suspension, and recheck the positions after the first few drives.

Specifications

Brand Artec Industries
Part number A/IBR1026
Type Panhard mount
Tube diameter 3 inches
Sold as Single
Joint mounting width 1.75 inch
Axle holes 7, 8 and 9 inches from axle centerline
Designed for Dana 60 axles with Artec truss

Vehicle fitment

This mount is designed for Dana 60 axles that use Artec truss systems in three-link or four-link setups.

It is not intended for Dana 60 axles without an Artec truss or for other axle types. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Installation requires welding, so this is not a bolt-on mount. Confirm the three axle hole positions against your suspension geometry before welding the mount to the truss. Wear a welding helmet and gloves, and have a qualified welder complete the work if you are not experienced with axle welding.

What’s included

One Artec Industries Panhard mount, part number A/IBR1026, with a 3-inch tube diameter.

Not included: the Artec truss, rod ends and high misalignment spacers are not part of this item.

Questions & Answers

What is the Artec Industries A/IBR1026?

It is a Panhard mount for Artec Industries truss systems on Dana 60 axles. The mount has a 3-inch tube diameter, three holes set 7, 8 and 9 inches from the axle centerline, and a 1.75 inch joint mounting width.

Does it work with hydraulic rams and coilovers?

The mount is designed with geometry and clearances planned for hydraulic rams and coilovers. Check clearance against your own parts before welding, since it depends on the complete build.

Does this mount need welding?

Yes. Welding is required, so the mount is not a bolt-on part. It is designed for joints with a 1.75 inch mounting width, so check that your rod ends match before you start.

Should the mount be coated after welding?

Clean the weld area of slag and grease first, then apply the coating you prefer once the welds have cooled. Protecting the joint helps slow rust where the mount meets the truss.

How do I tell if the mount needs replacing?

Look for cracks around the weld, bent tube sections, or loose rod ends that cannot be tightened. Any of these signs means the mount or joint should be inspected before further trail use.
